HP Compaq dc7100 MT User Manual

Hardware Reference Guide www.hp.com B–3
Battery Replacement
Type 2
a. To release the battery from its holder, squeeze the metal
clamp that extends above one edge of the battery. When the
battery pops up, lift it out 1.
b. To insert the new battery, slide one edge of the replacement
battery under the holder’s lip with the positive side up. Push
the other edge down until the clamp snaps over the other edge
of the battery 2.

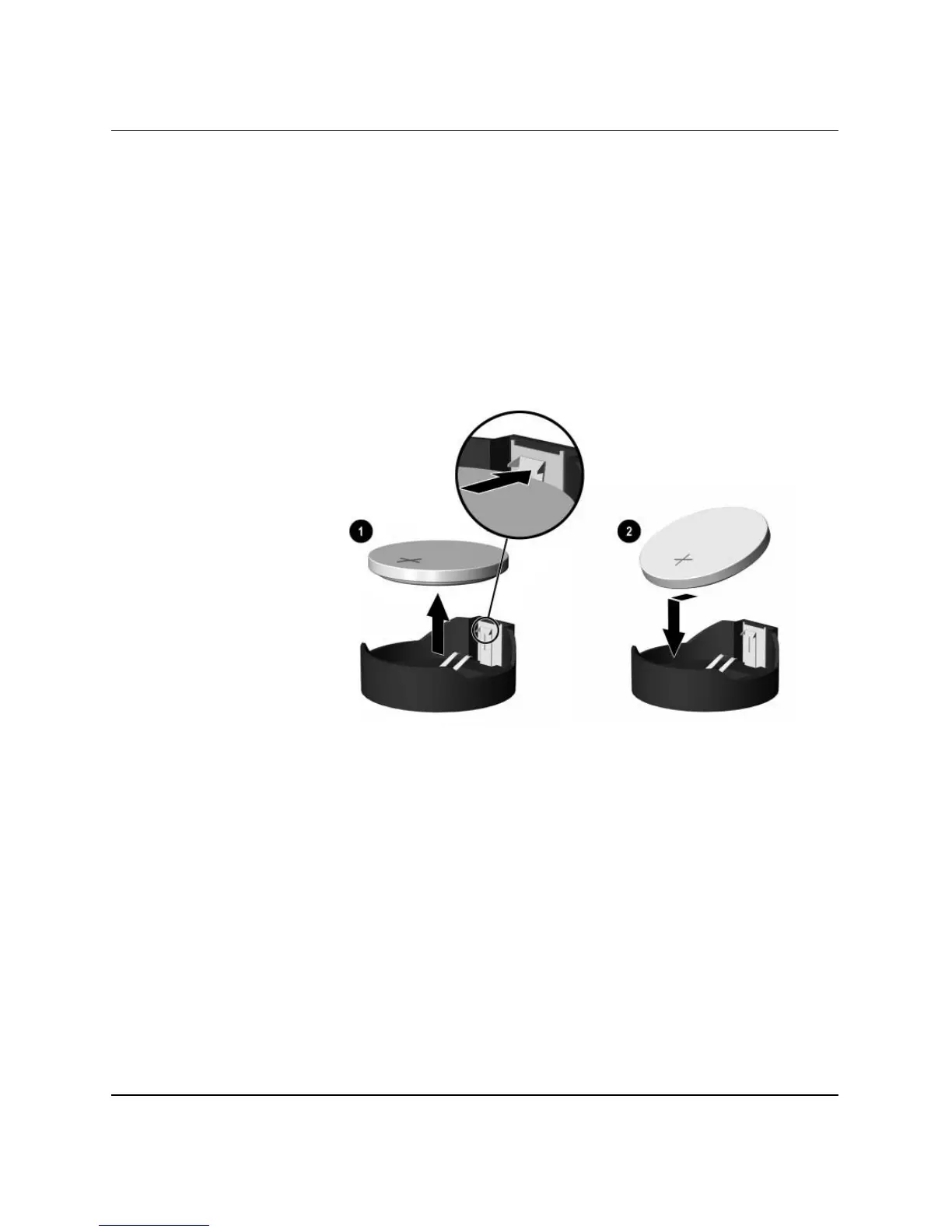

Removing and Replacing a Coin Cell Battery (Type 2)

HP Compaq dc7100 MT Specifications

General

Graphics	Integrated Intel Graphics Media Accelerator 900
Network	Integrated Broadcom NetXtreme Gigabit Ethernet
Operating System	Windows XP Professional
Form Factor	Microtower
Processor	Intel Pentium 4
Chipset	Intel 915G Express
Memory	Up to 4 GB DDR2 SDRAM
Storage	40 GB to 160 GB SATA
Optical Drive	DVD-ROM
Ports	USB 2.0, serial, parallel, audio in/out
Expansion Slots	1 PCI Express x16
Audio	Integrated AC'97 audio
