HP Compaq dc7600 MT Technical Reference Guide

5-38 www.hp.com Technical Reference Guide
Input/Output Interfaces
5.9.4 NIC Programming
Programming the NIC consists of configuration, which occurs during POST, and control, which
occurs at runtime. The Broadcom BCM5752 is configured as a PCI device and controlled
through registers mapped in variable I/O space. The BIOS for the BCM5782 is contained within
the HP/Compaq BIOS in system ROM. Refer to Broadcom documentation for details regarding
BCM5782 register programming.
5.9.5 NIC Connector
Figure 5-14 shows the RJ-45 connector used for the NIC interface. This connector includes the
two status LEDs as part of the connector assembly.

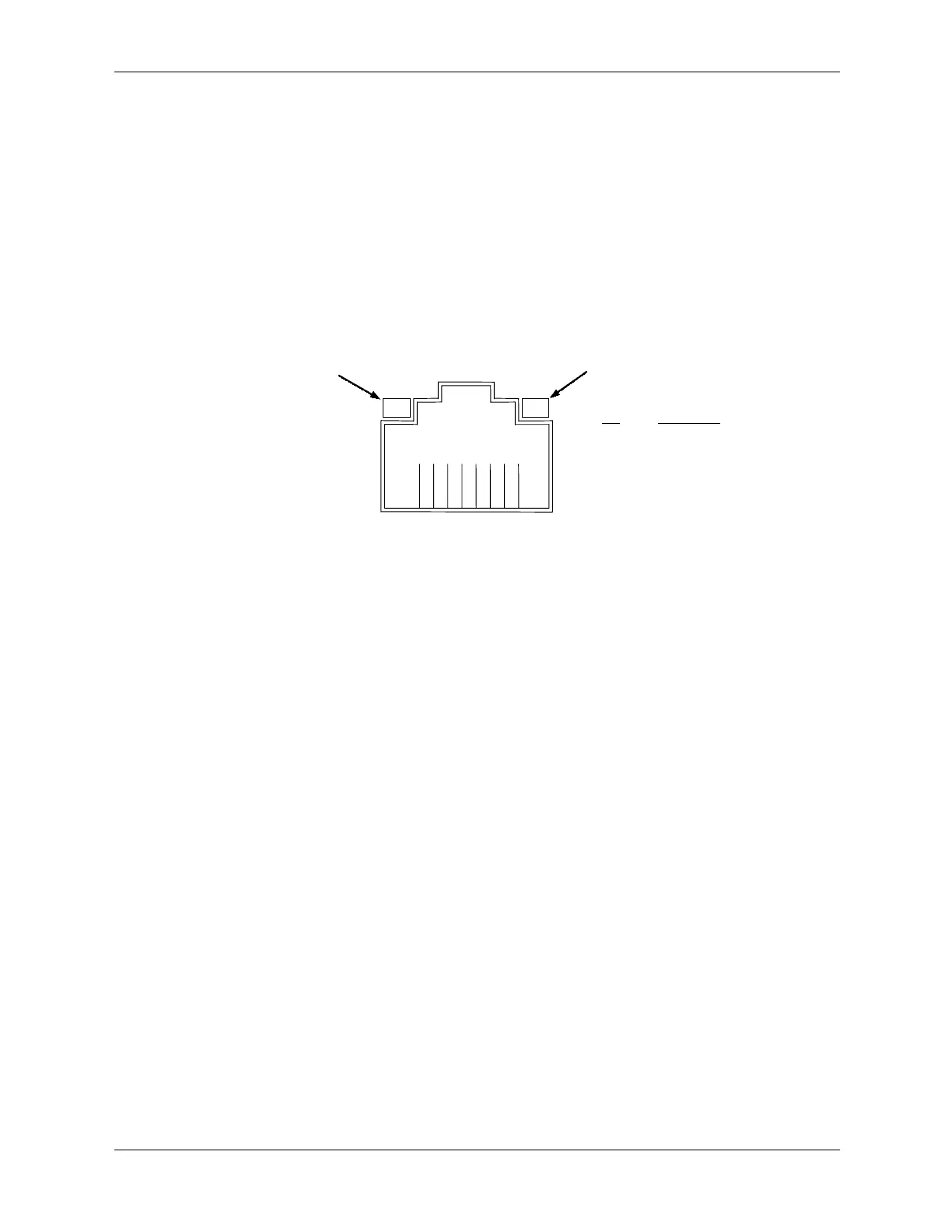

Figure 5 15. Ethernet TPE Connector (RJ-45, viewed from card edge)
1 2 4 3 8 7 6 5
Pin Description
1 Transmit+
2 Transmit-
3 Receive+
6 Receive-
Activity LED
Speed LED
4, 7, 8
Not used

HP Compaq dc7600 MT Specifications

General

Memory	Up to 4 GB DDR2 SDRAM
Audio	Integrated High Definition Audio
Expansion Slots	1 PCI Express x16, 1 PCI Express x1, 2 PCI
Form Factor	Microtower
Processor	Intel Pentium 4 or Intel Celeron D
Chipset	Intel 945G Express
Hard Drive	40 GB to 160GB SATA
Optical Drive	DVD-ROM, DVD+/-RW
Graphics	Integrated Intel Graphics Media Accelerator 950
Networking	Integrated 10/100/1000 Ethernet
Ports	Serial, parallel, VGA, audio in/out
Operating System	Windows XP Professional, Windows XP Home
USB Ports	8 USB 2.0 (2 front, 6 rear)
