Processor/Memory Subsystem
3.1 Introduction
This chapter describes the processor/memory subsystem. These systems feature the Intel
Pentium 4 processor and the 945G chipset (Figure 3-1). The dx7200 and dc7600 models support
PC2-4200 DDR2 DIMMs.

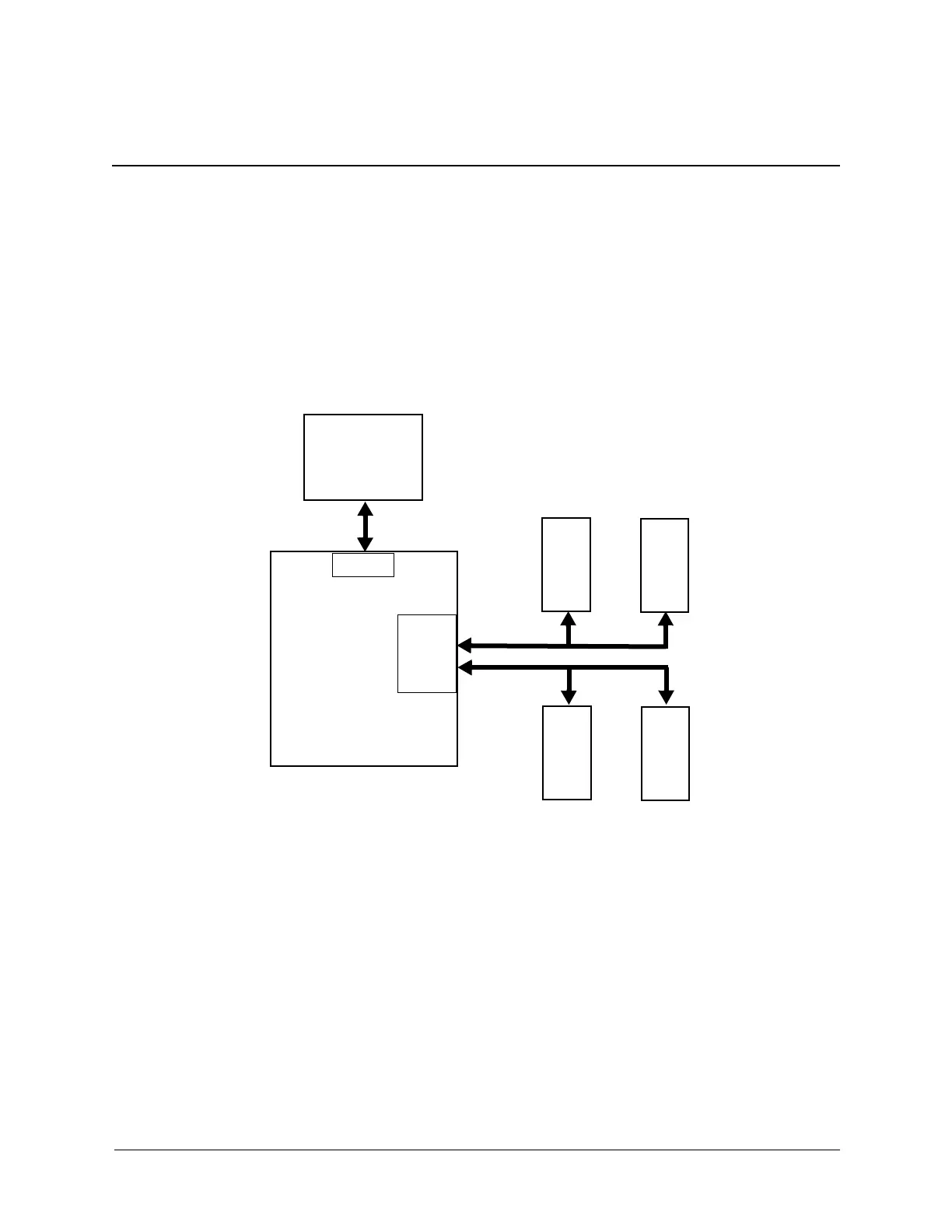

Figure 3-1. Processor/Memory Subsystem Architecture
This chapter includes the following topics:
■
Pentium 4 processor (3.2), page 3-2
■
Memory subsystem (3.3), page 3-4
Pentium 4
Processor
82945G
GMCH
Cntrl
SDRAM
XMM1
Ch A
DIMM
Ch A
DIMM
Ch B
DIMM
Ch B
DIMM
XMM3
XMM4
XMM2 [1]
FSB I/F
Note:
[1] SFF, ST, and CMT models only.

HP Compaq dc7600 MT Specifications

General

Memory	Up to 4 GB DDR2 SDRAM
Audio	Integrated High Definition Audio
Expansion Slots	1 PCI Express x16, 1 PCI Express x1, 2 PCI
Form Factor	Microtower
Processor	Intel Pentium 4 or Intel Celeron D
Chipset	Intel 945G Express
Hard Drive	40 GB to 160GB SATA
Optical Drive	DVD-ROM, DVD+/-RW
Graphics	Integrated Intel Graphics Media Accelerator 950
Networking	Integrated 10/100/1000 Ethernet
Ports	Serial, parallel, VGA, audio in/out
Operating System	Windows XP Professional, Windows XP Home
USB Ports	8 USB 2.0 (2 front, 6 rear)
