HP Compaq dc7600 MT Technical Reference Guide

Technical Reference Guide www.hp.com 2-13
System Overview
Microtower Chassis
Figure 2-9 shows the layout for the Microtower (MT) chassis used for the HP Compaq dx7200
models. Features include:
■
Externally accessible drive bay assembly.
■
Easy access to expansion slots and all socketed system board components.
NOTE:
[1] Accepts PCI-E graphics or normal-layout ADD2 card.

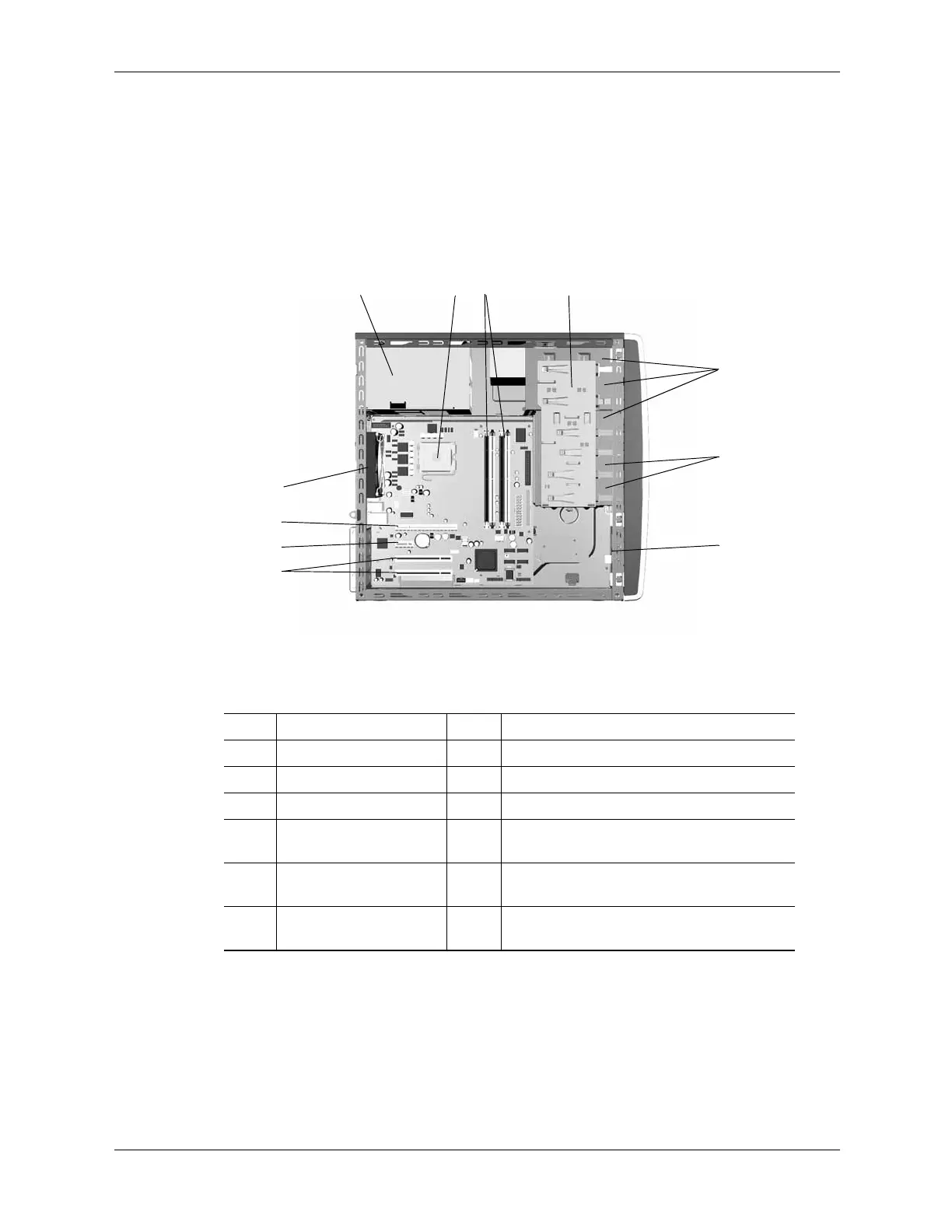

Figure 2-9. MT Chassis Layout, Left Side View
1
3
4
5
6
2
7
-
8
9
q
Item Description Item Description
1 Power supply assembly 7 Speaker
2 Processor socket 8 PCI 2.3 slots
3 DIMM sockets (4) 9 PCI Express x1 slot
4 DriveLock 10 PCI Express x16 graphics/normal-layout
SDVO slot [1]
5 Externally accessible
drive bays
11 Chassis fan
6 Internally accessible
drive bays
-- --

HP Compaq dc7600 MT Specifications

General

Memory	Up to 4 GB DDR2 SDRAM
Audio	Integrated High Definition Audio
Expansion Slots	1 PCI Express x16, 1 PCI Express x1, 2 PCI
Form Factor	Microtower
Processor	Intel Pentium 4 or Intel Celeron D
Chipset	Intel 945G Express
Hard Drive	40 GB to 160GB SATA
Optical Drive	DVD-ROM, DVD+/-RW
Graphics	Integrated Intel Graphics Media Accelerator 950
Networking	Integrated 10/100/1000 Ethernet
Ports	Serial, parallel, VGA, audio in/out
Operating System	Windows XP Professional, Windows XP Home
USB Ports	8 USB 2.0 (2 front, 6 rear)
