System Overview
NOTE:
See SFF and ST rear chassis illustrations for externally accessible I/O connectors.

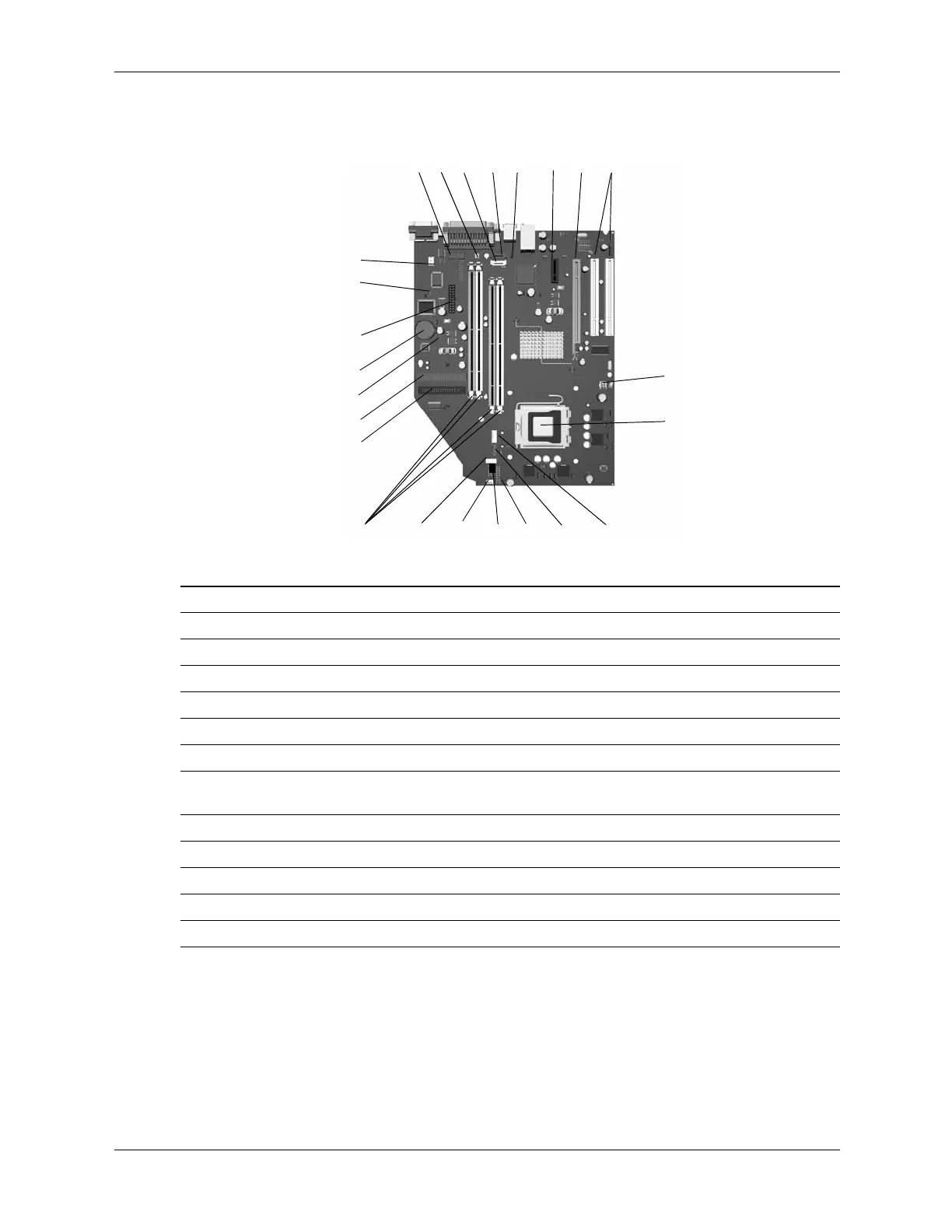

Figure 2-12. SFF/ST System Board
Item Description Item Description
1 Serial port B header 13 Power button, power LED, HD LED header
2 CMOS clear button 14 Front panel audio header
3 SATA #0 header (dark blue) 15 Chassis speaker connector
4 SATA #1 header (white) 16 Front panel USB port connector
5 Password clear jumper 17 DIMM sockets (4)
6 PCI Express x1 slot 18 Diskette drive connector
7 PCI Express x16 graphics/reversed-layout
SDVO slot
19 PATA (primary IDE) connector
8 PCI 2.3 slots 20 Auxiliary audio input connector
9 Power supply (VccP) connector 21 Battery
10 Processor socket 22 Power supply connector
11 Processor fan connector 23 Cover lock (solenoid) connector
12 Chassis fan conenctor 24 Cover sensor connector
