HP Compaq Evo D310 User Manual

Upgrading and replacing hardware
Evo D310 Micro Desktop 13

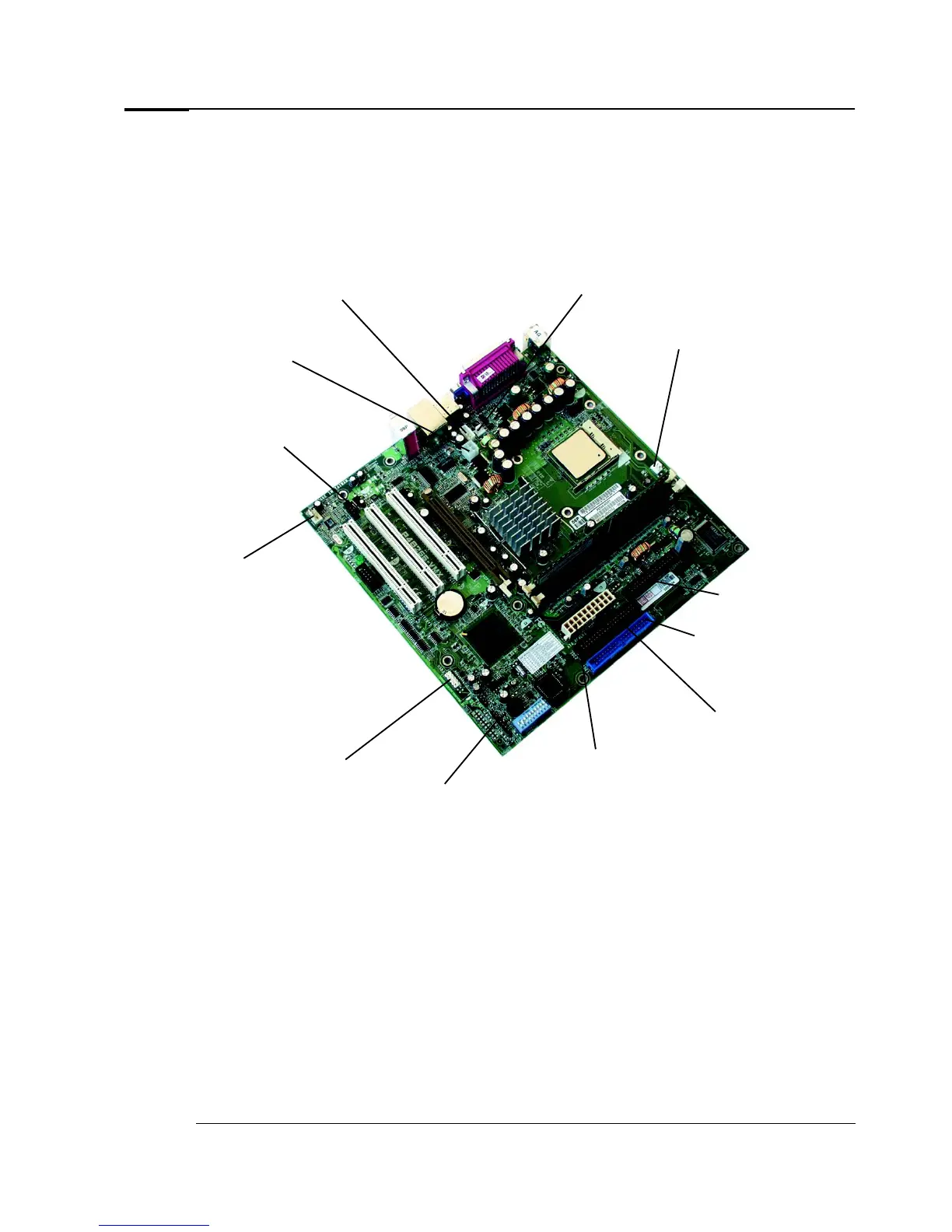

System board cables and connectors
Internal devices such as the power supply, processor, hard drives, DVD and CD-ROM drives require the
connection of data and power cables from device to system board. Cables are connected to the system
board and internal devices as shown below.
Main Power
connector
Primary IDE connector
for Hard drive(s)
Floppy drive
Internal speaker (if
fitted)
Auxiliarly Power
connector (12V)
Chassis Intrusion
Chassis fan
Processor (CPU) fan
Status Panel
CD-ROM, DVD,
CD-RW or Tape
drive
Front USB Port
CD audio (if required)
