Upgrading and replacing hardware
16 Evo D310 Micro Desktop
Installing optical drives
WARNING
To avoid electrical shock and harm to your eyes by laser, do not open the laser module. The laser module should be serviced
by service personnel only. Do not attempt to make any adjustment to the laser unit. Refer to the label on the CD-ROM for
power requirements and wavelength. This product is a class 1 laser product.
You can install or replace optical drives, such as CD-ROM, CD-RW and DVD drives. To do this:
1 Switch off the PC and remove the PC’s cover and front panel. Refer to page 10.

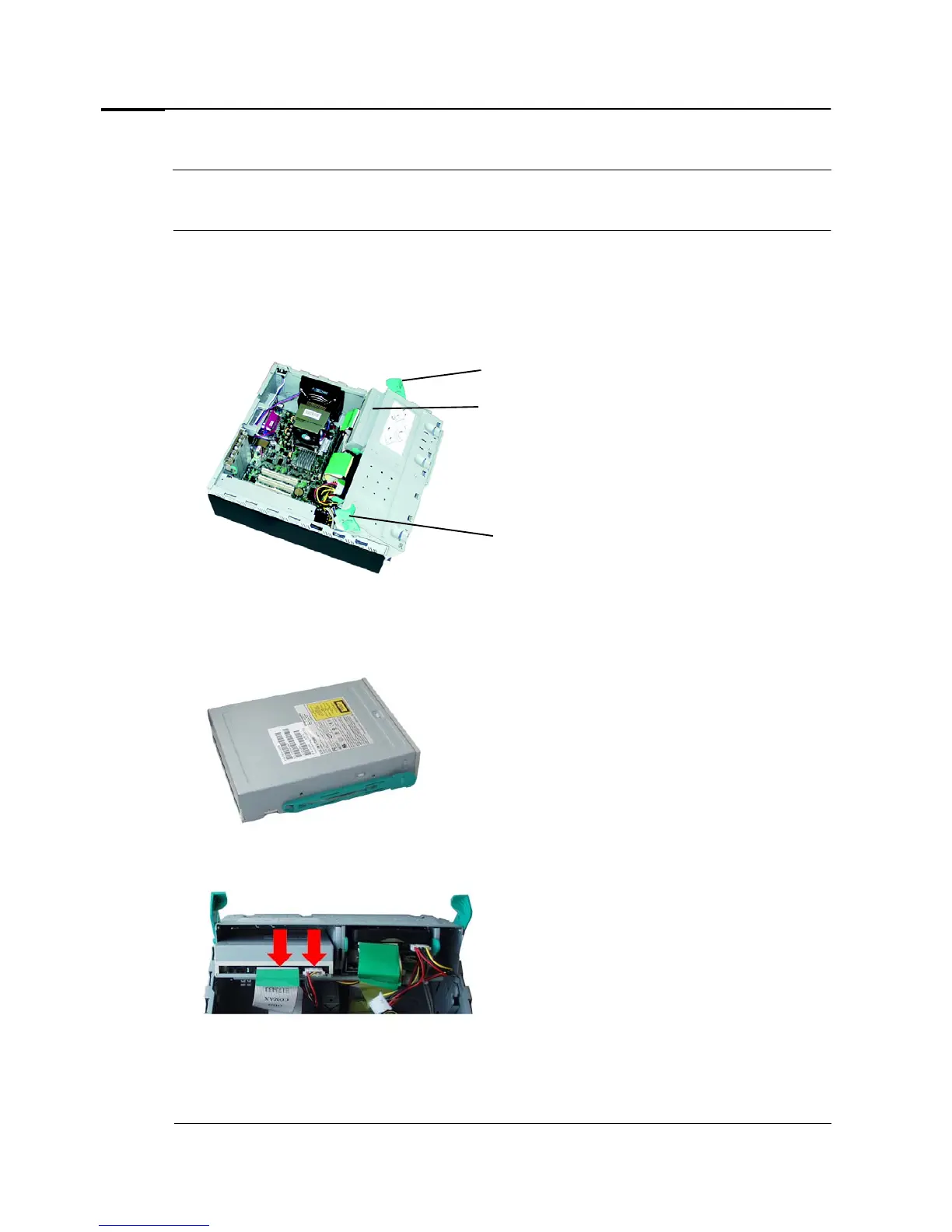

2 Locate the optical drive and taking hold of the two large plastic latches that secure the bay, swing the
device bay upwards.
3 Slide the old optical drive out the front of the PC.
4 Remove the clips from each side of the old drive by pulling on the protruding tabs.
5 Attach the clips to each side of the new drive by inserting first one pin then pressing on the middle of
the clip to allow the other pin to snap into place.
6 Slide the drive tray back into the PC until it clicks into place.
7 Attach the data and power connectors.
8 Replace the PC’s cover and front panel. Refer to page 10.
9 Verify the new configuration by checking the Summary screen. To access the Summary Screen, press
F8
immediately after startup, then press
Esc
.
optical drive
Left latch
Right latch
