Removal and Replacement Procedures
Maintenance and Service Guide 5–17

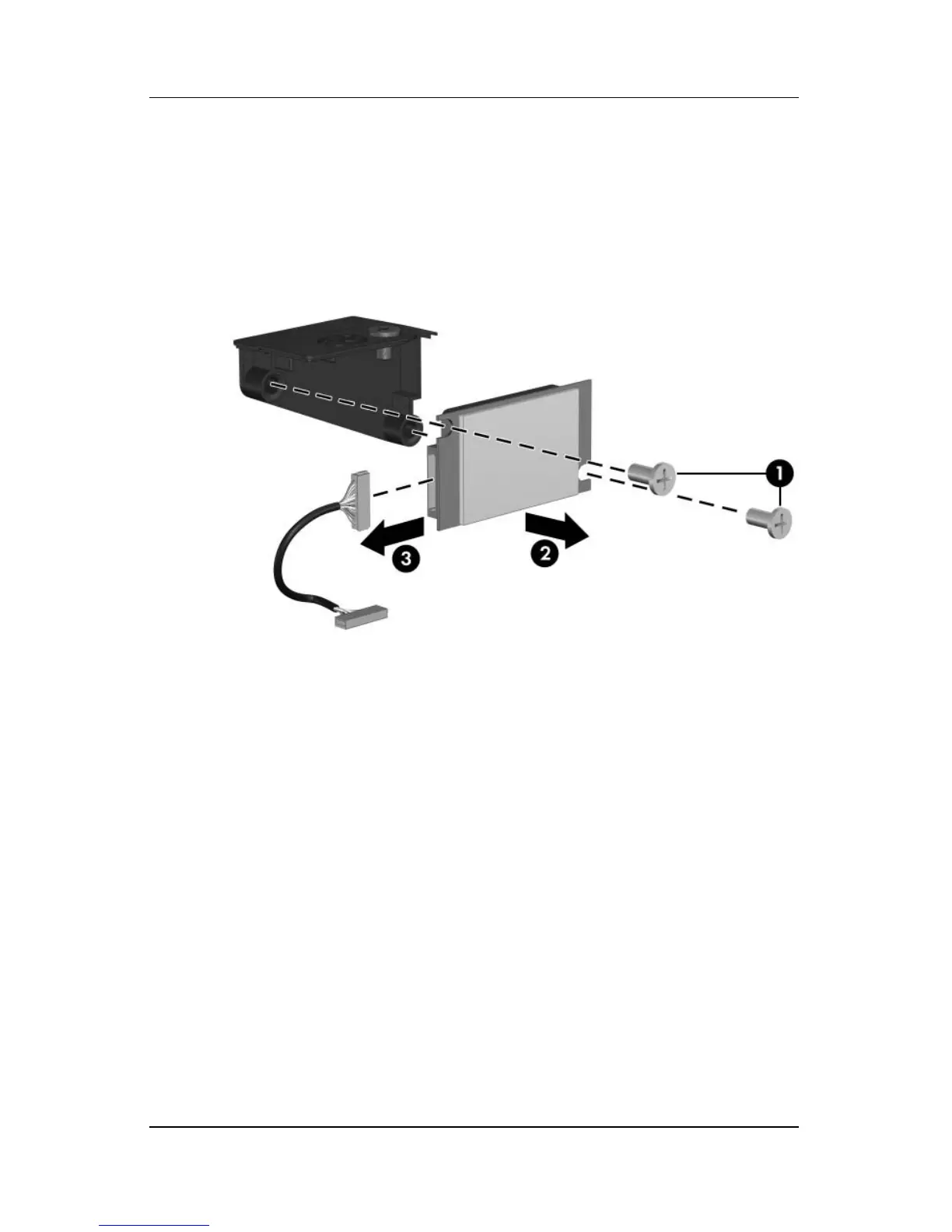

6. Remove the two Phillips PM1.5×3.0 screws 1 that secure the
Bluetooth module to the Bluetooth module cover.
7. Remove the Bluetooth module 2 from the cover.
8. Disconnect the Bluetooth module cable 3 from the module.
Removing the Bluetooth Module Cover
Reverse the above procedure to install a Bluetooth module.
