Removal and Replacement Procedures
Maintenance and Service Guide 5–11
5.6 Optical Drive
1. Prepare the computer for disassembly (Section 5.3).
2. Position the computer with the left side toward you.
3. Remove the Torx8 T8M2.5×4.0 screw 1 that secures the
optical drive to the computer.
4. Insert a flat-bladed screwdriver into the slot 2 on the bottom
of the computer and push the tab.
5. Remove the optical drive 3 from the computer.

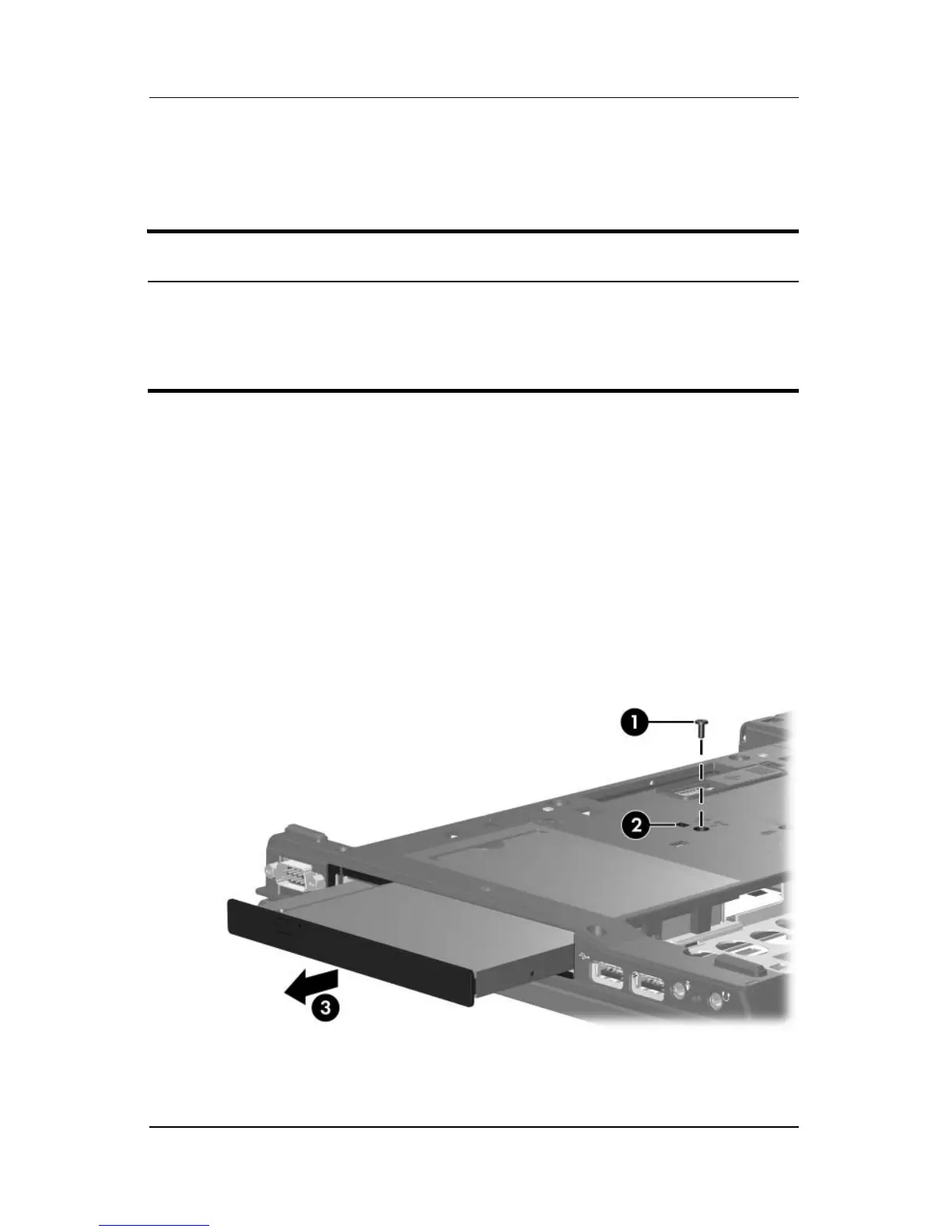

Removing the Optical Drive
Optical Drive Spare Part Number Information
8X Max DVD±RW and CD-RW Double-Layer Combo Drive
4X Max DVD±RW and CD-RW Double-Layer Combo Drive
24X Max DVD/CD-RW Combo Drive
8X Max DVD-ROM drive
413702-001
413700-001
413701-001
413699-001
