5–48 Maintenance and Service Guide
Removal and Replacement Procedures
6. Position the computer with the rear panel toward you.

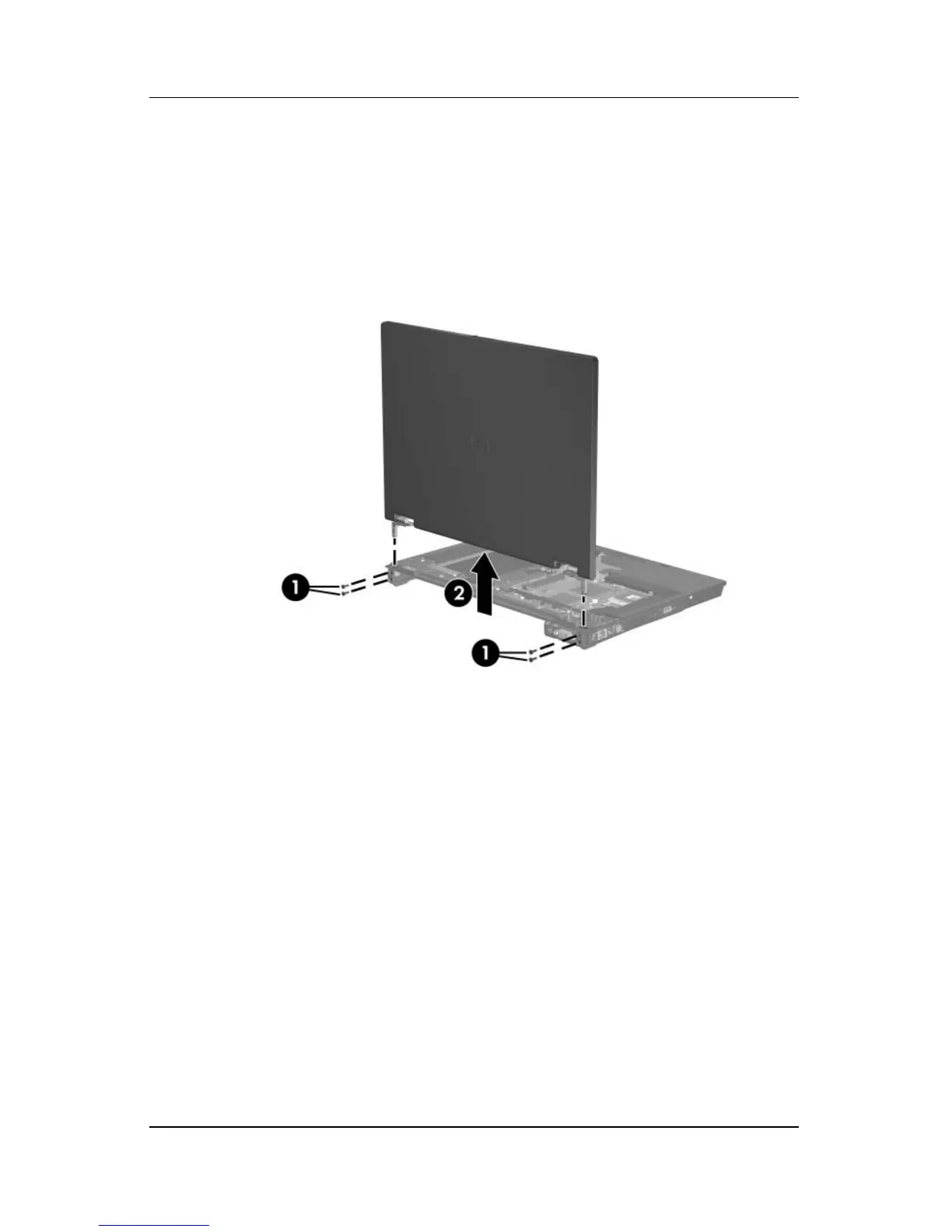

7. Remove the four Torx8 T8M2.5×10.0 screws 1 that secure
the display assembly to the computer.
8. Lift the display assembly 2 straight up to remove it.
Removing the Display Assembly
Reverse the above procedure to install the display assembly.
