Screw Listing
Maintenance and Service Guide A–3

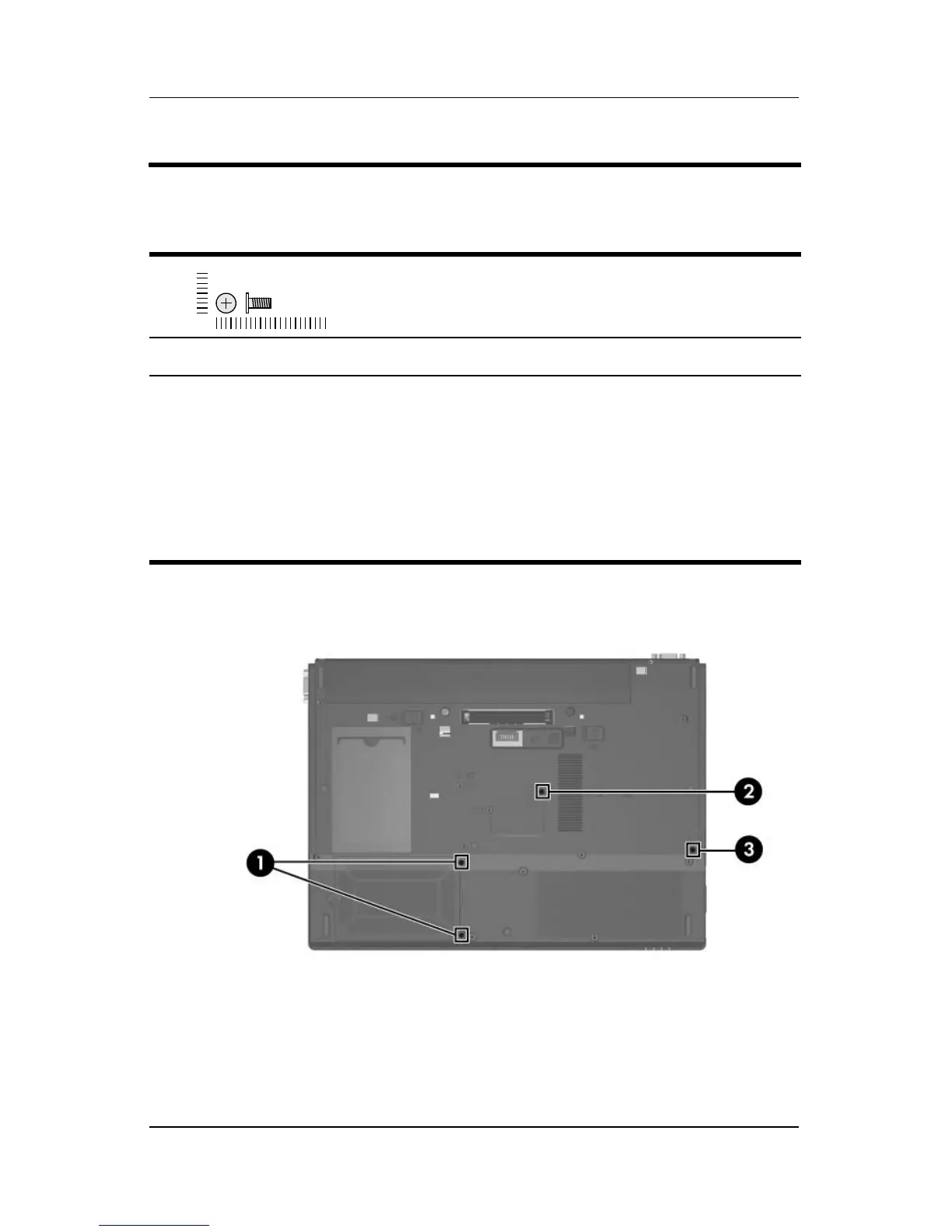

Phillips PM2.0×5.0 Captive Screw Locations
Table A-2
Phillips PM2.0×5.0 Captive Screw
Color Qty. Length Thread
Head
Width
Black 4 5.0 mm 2.0 mm 5.0 mm
Where used:
1 Two screws that secure the hard drive cover to the computer (screws are
captured on the cover by C clips; documented in Section 5.4)
2 One screw that secures the memory module compartment cover to the
computer (screw is captured on the cover by a C clip; documented in
Section 5.7)
3 One screw that secures the Bluetooth module cover to the computer (screw
is captured on the cover by a C clip; documented in Section 5.8)
