A–12 Maintenance and Service Guide
Screw Listing

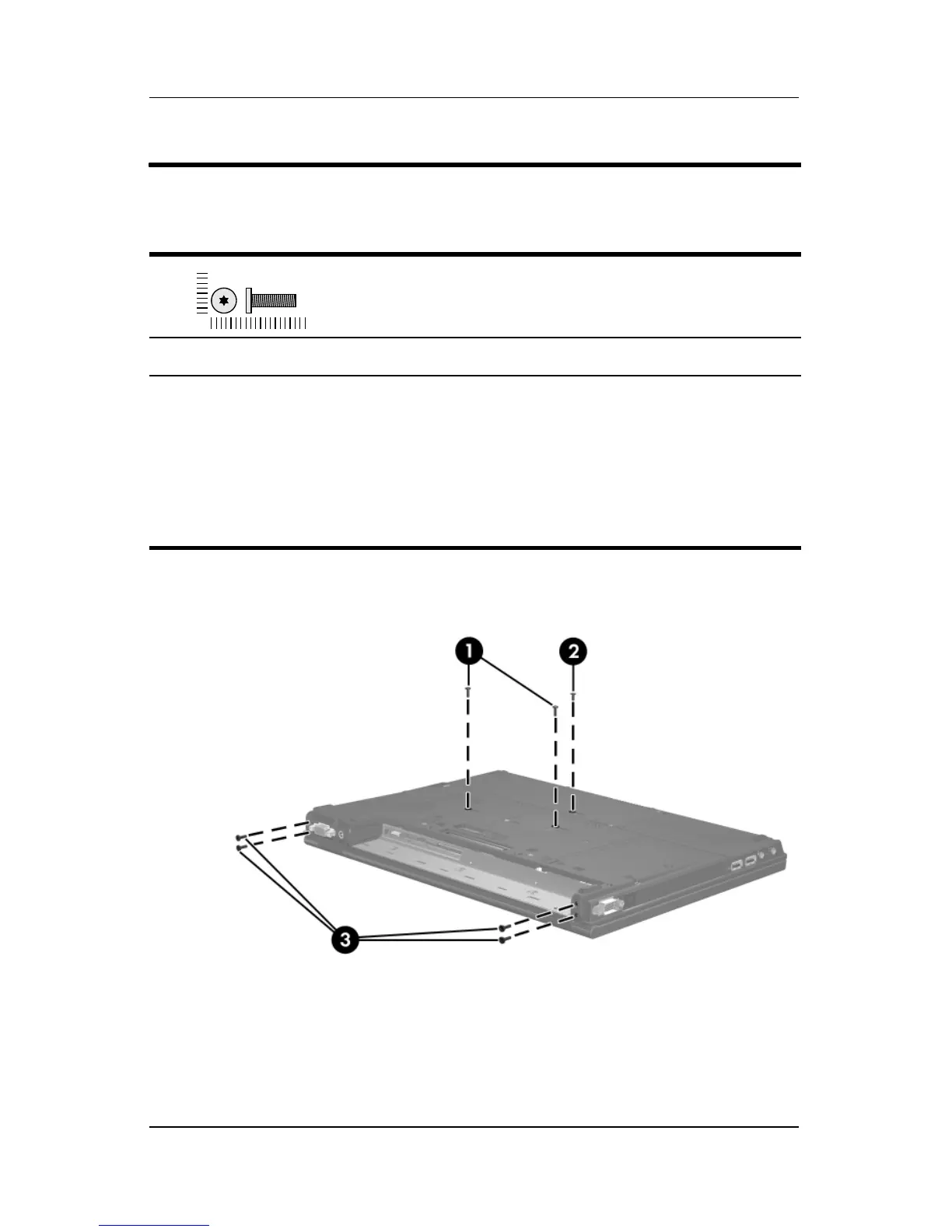

Torx8 T8M2.5×10.0 Screw Locations
Table A-7
Torx8 T8M2.5×10.0 Screw
Color Qty. Length Thread
Head
Width
Black 20 10.0 mm 2.5 mm 5.0 mm
Where used:
1 Two screws that secure the keyboard to the computer (documented in
Section 5.9)
2 One screw that secures the TouchPad to the computer (documented in
Section 5.15)
3 Four screws that secure the display assembly to the computer (documented
in Section 5.18)
