7. Disconnect the modem cable from the mini PCI
communications board
1
(Figure 5-13).
8. Spread the retaining tabs
2
on each side of the mini PCI
communications board. The board releases and rests at an
angle.
9. Remove the board by pulling it away from the socket at an
angle
3
.

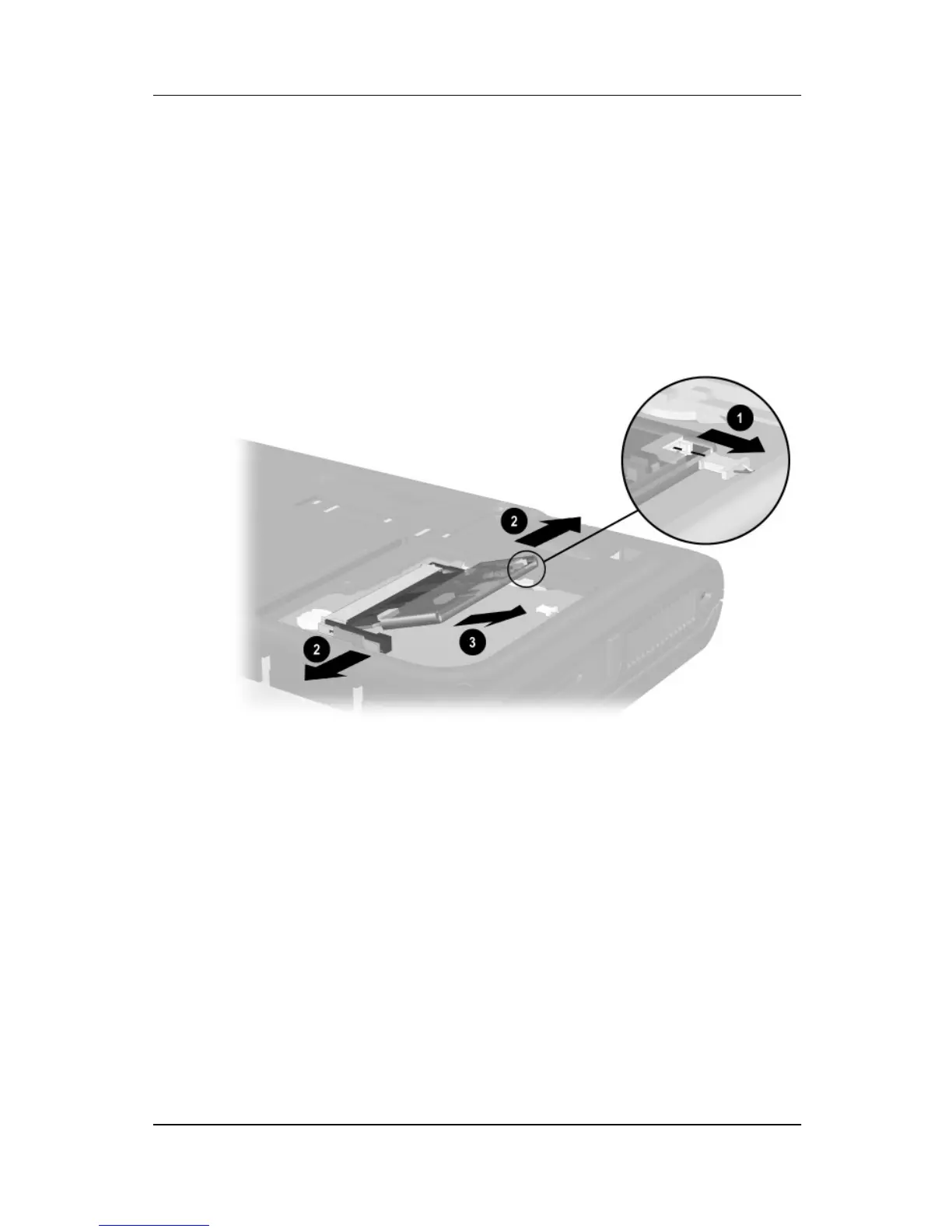

Figure 5-13. Removing a Mini PCI Communications Board
Reverse the preceding procedures to install a mini PCI
communications board.
