5–46 Maintenance and Service Guide
Removal and Replacement Procedures
5.17 Display Release Assembly
✎
The display release assembly is included in the Miscellaneous
Plastics/Hardware Kit, spare part number 285541-001.
1. Prepare the computer for disassembly (Section 5.3).
2. Remove the palm rest (Section 5.14).
3. Turn the palm rest bottom side up with the speaker grilles
facing forward.
4. Remove the two TM2.5 × 5.0 screws
1
that secure the
display release assembly to the palm rest (Figure 5-36).
5. Remove the assembly
2
from the palm rest.

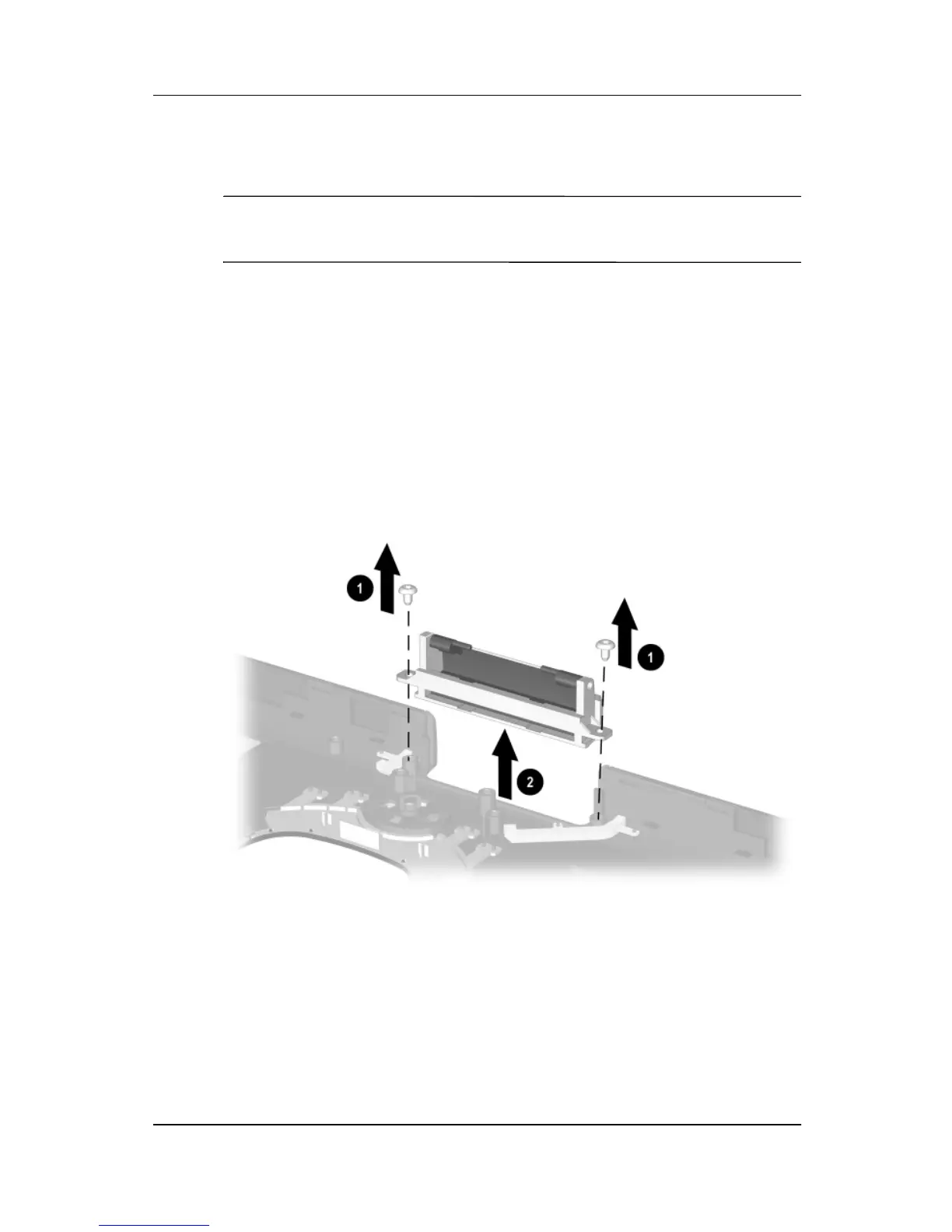

Figure 5-36. Removing the Display Release Assembly
Reverse the preceding procedures to install the display release
assembly.
