Removal and Replacement Procedures
Maintenance and Service Guide 5–45
12. Remove the five TM2.5 × 5.0 screws
1
that secure the
TouchPad, TouchButton board, TouchPad bracket, and
pointing stick board to the palm rest (Figure 5-35).
13. Remove the TouchPad bracket 2
, pointing stick board
3
,
TouchPad
4
, and TouchButton board
5
from the palm rest.
.

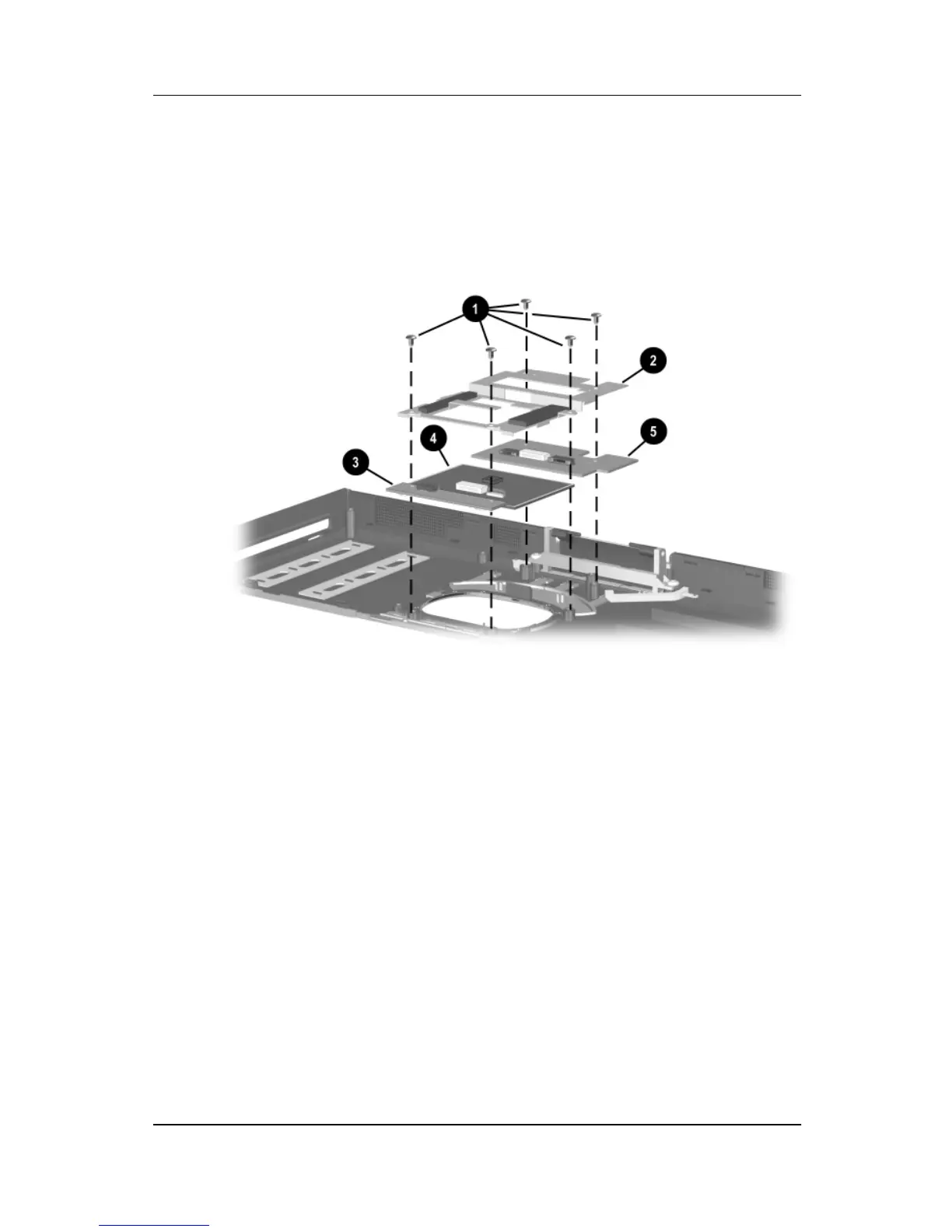

Figure 5-35. Removing the TouchPad Components on Dual
Stick Models
Reverse the preceding procedures to install the TouchPad
components.
