Removal and Replacement Procedures
Maintenance and Service Guide 5–15
7. Spread the memory expansion slot retaining tabs
1
to release
the memory expansion board. The board tilts up at a
45-degree angle (Figure 5-11).
8. Remove the board by pulling it away from the connector at a
45-degree angle
2
.

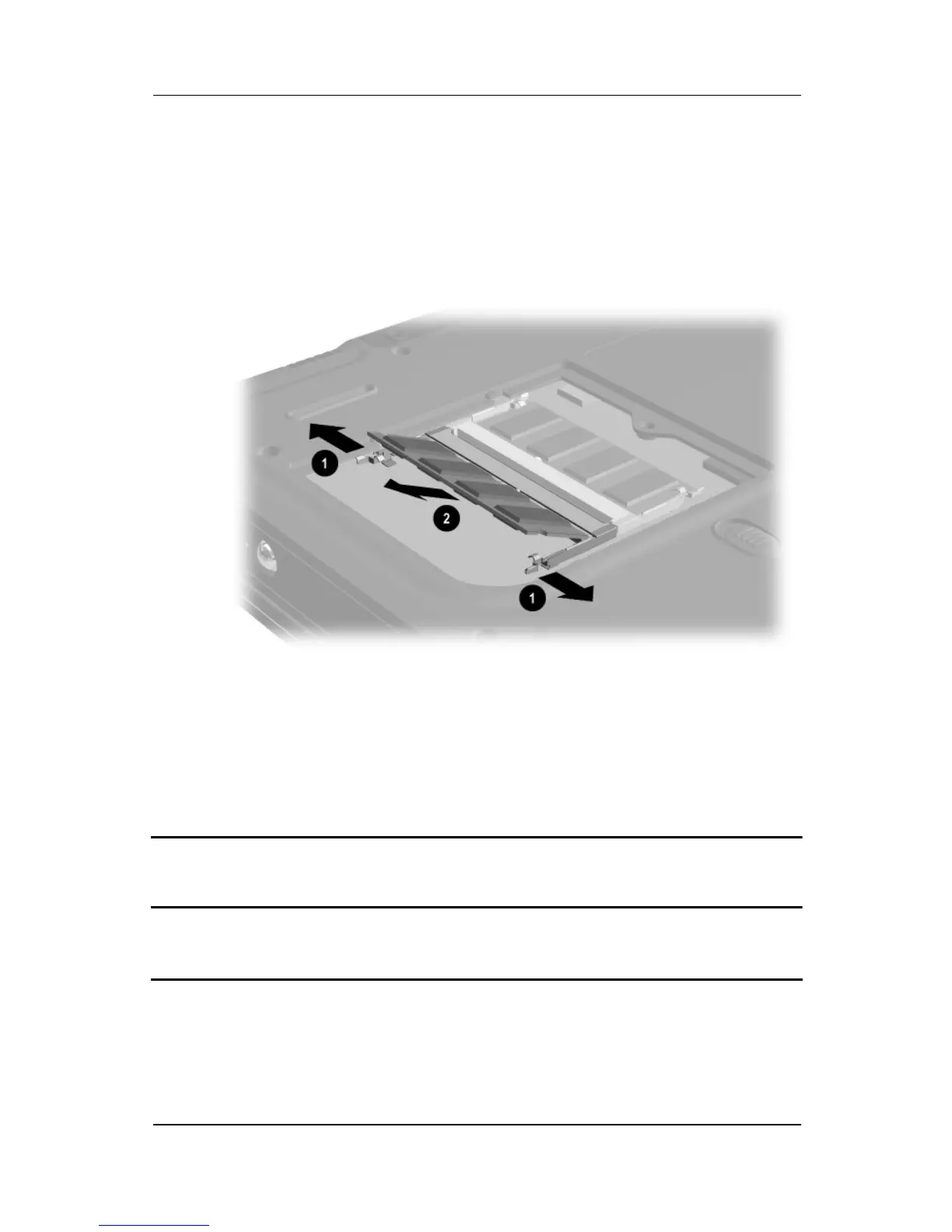

Figure 5-11. Removing a Memory Expansion Board
Reverse the preceding procedures to install a memory
expansion board.
5.6 Mini PCI Communications Board
Mini PCI Communication Boards
Spare Part Number Information
U.S. modem
International modem
248776-001
285545-001
