5–48 Maintenance and Service Guide
Removal and Replacement Procedures
3. Remove the three TM2.5 × 5.0 screws
1
that secure the
charger board to the base enclosure (Figure 5-37).
4. Lift the front edge of the charger board shield
2
until it clears
the base enclosure, then slide the shield forward to remove it.
5. Lift up on the back edge of the charger board
3
to disconnect
it from the system board.
6. Remove the charger board
4
from the base enclosure.

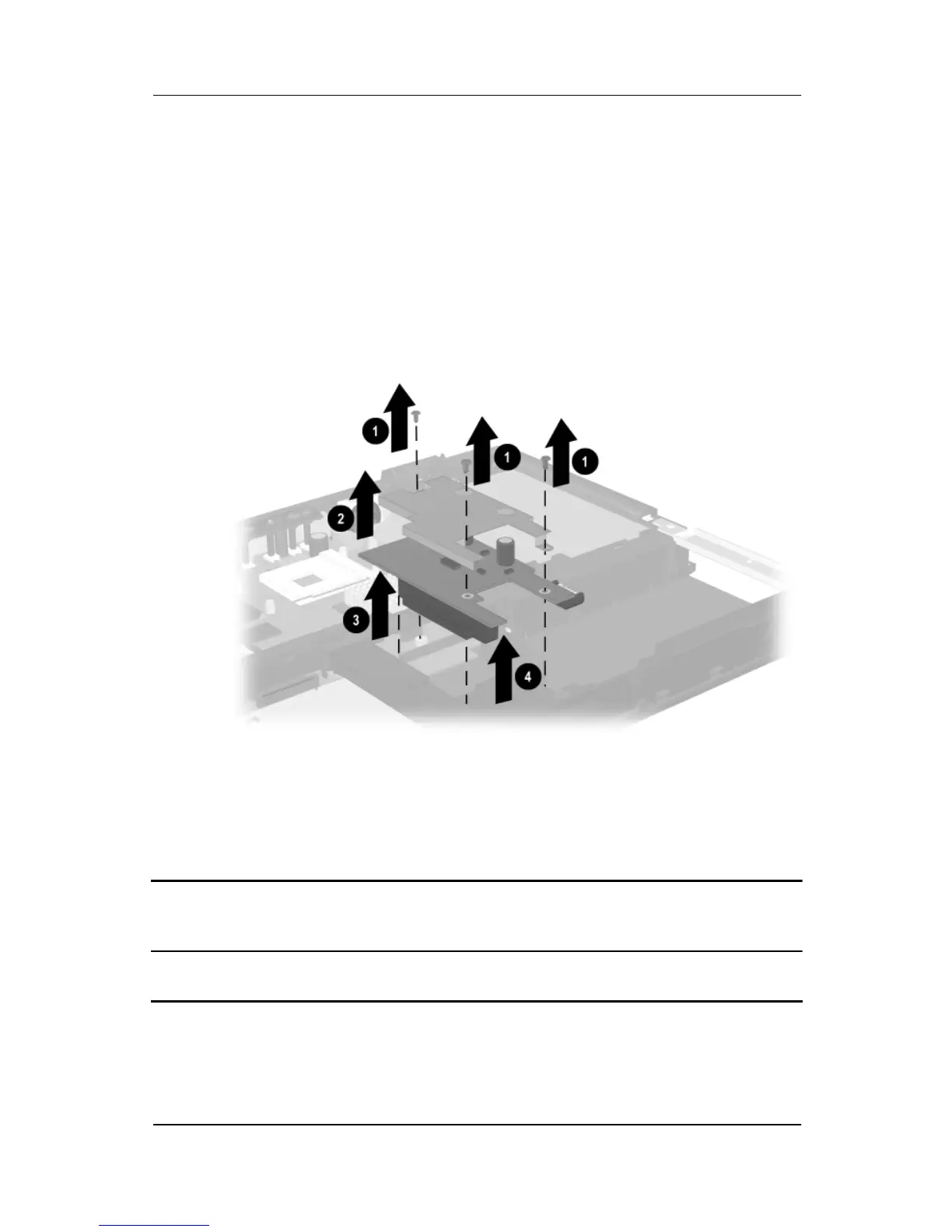

Figure 5-37. Removing the Charger Board
Reverse the preceding procedures to install the charger board.
5.19 Speaker Assembly
1. Prepare the computer for disassembly (Section 5.3).
2. Remove the palm rest (Section 5.14).
Speaker Assembly
Spare Part Number Information
Speaker assembly 285538-001
