Removal and Replacement Procedures
Maintenance and Service Guide 5ā29
2. Slide the left end of the processor release bar
1
forward until
it clears the clip on the processor bracket (Figure 5-22).
3. Swing the processor release bar up and to the right
2
until it
rests in an upright position.
4. Lift the processor straight up
3
and remove it from the
processor socket.
ā
When installing the processor, make sure the gold triangle
4
is in
the lower right corner.

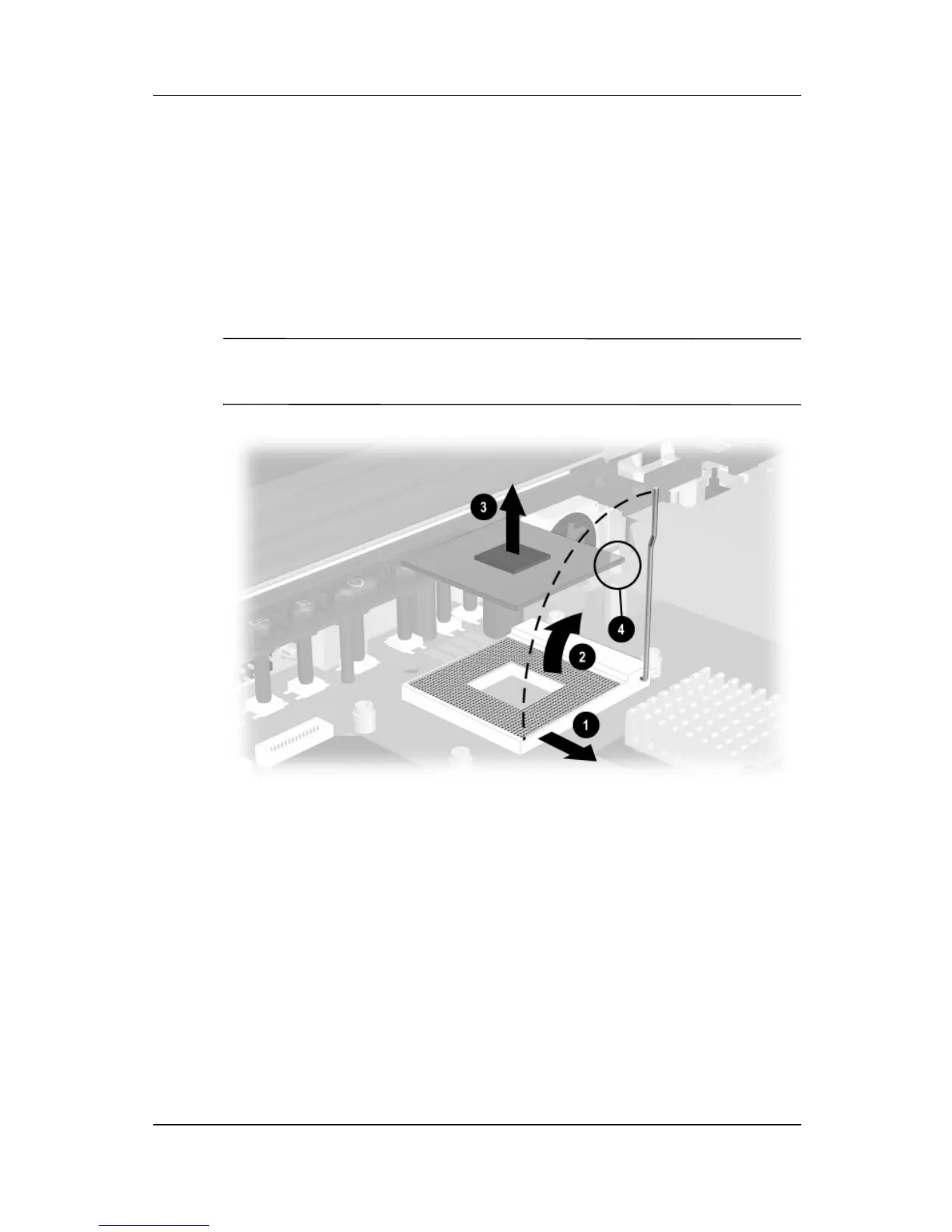

Figure 5-22. Removing the Processor
Reverse the preceding procedures to install the processor.
