5–40 Maintenance and Service Guide
Removal and Replacement Procedures
6. Release the ZIF connector
1
to which the diskette drive cable
is connected and disconnect the diskette drive cable
2
from
the drive (Figure 5-31).
7. Remove the diskette drive cable.

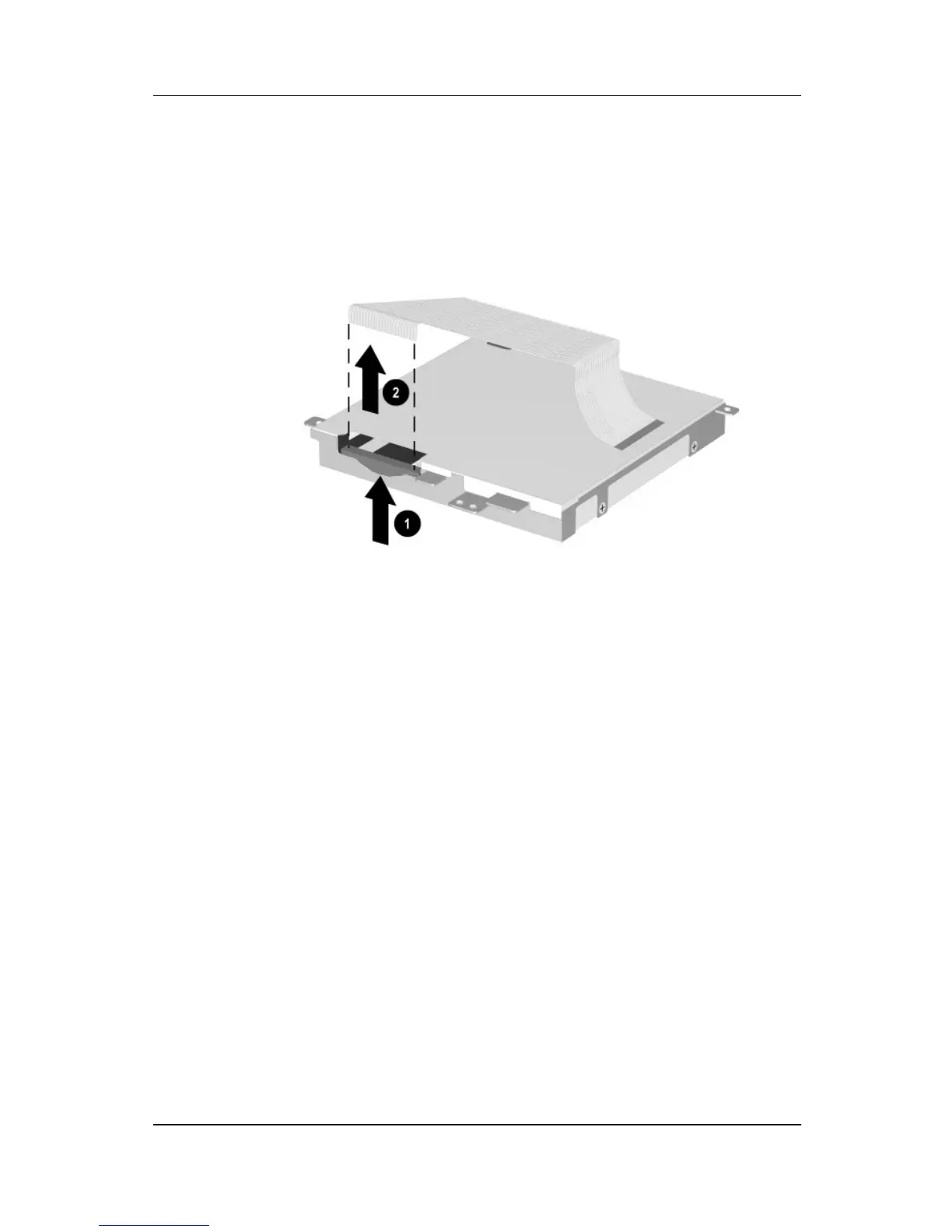

Figure 5-31. Removing the Diskette Drive Cable
Reverse the preceding procedures to install the diskette drive.
