Removal and Replacement Procedures
Maintenance and Service Guide 5–59
7. Lift the front edge of the system board until it rests at an
angle
1
(Figure 5-45).
8. Slide the system board forward
2
and remove it from the
base enclosure.

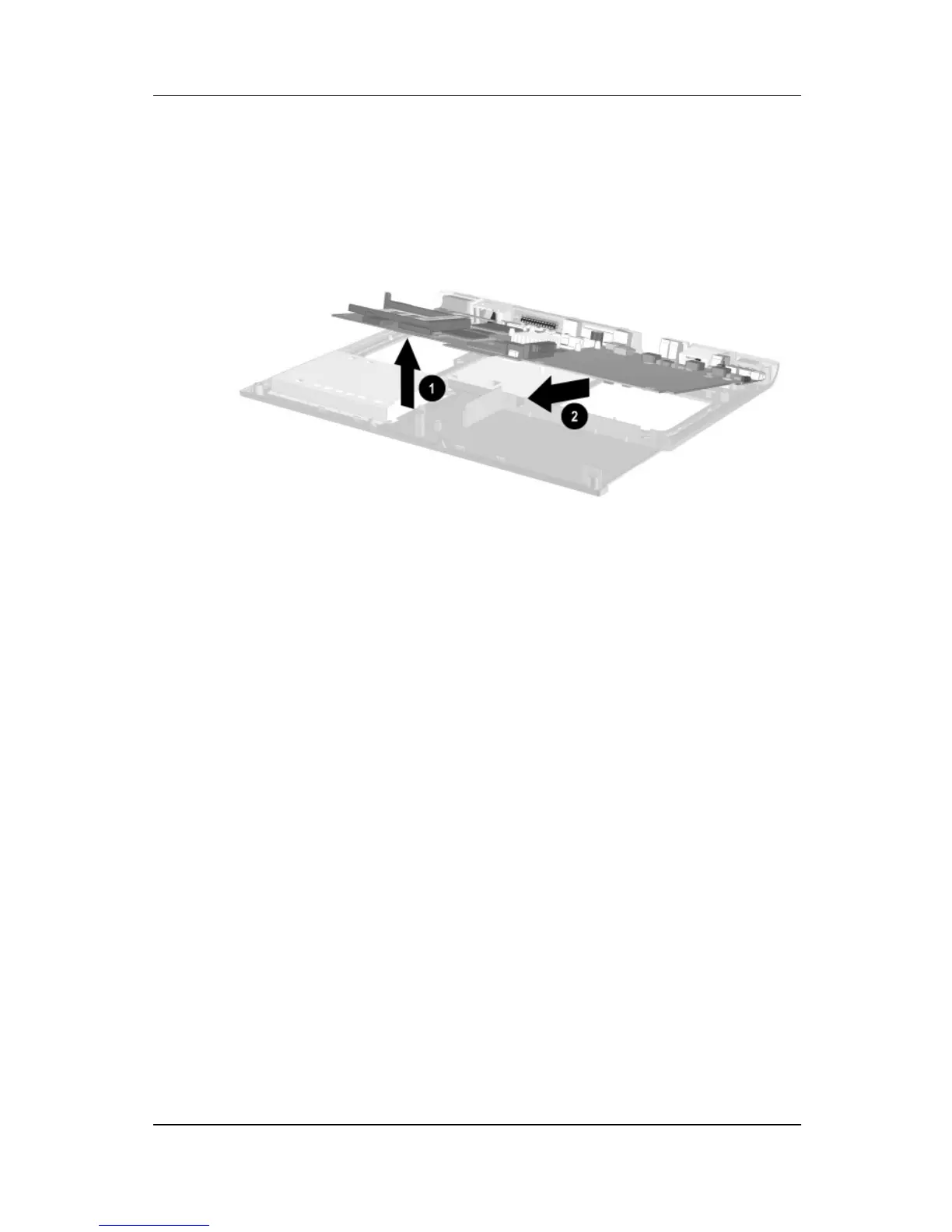

Figure 5-45. Removing the System Board
Reverse the preceding procedures to install the system board.
