5. Remove the 6 TM2.5 × 8.0 screws 1 that secure the display
panel assembly to the base enclosure.
6. Open the tilt foot
2 in the bottom-left corner and remove the
TM2.5 × 8.0 screw
3 that secures the display panel assembly
to the base enclosure.

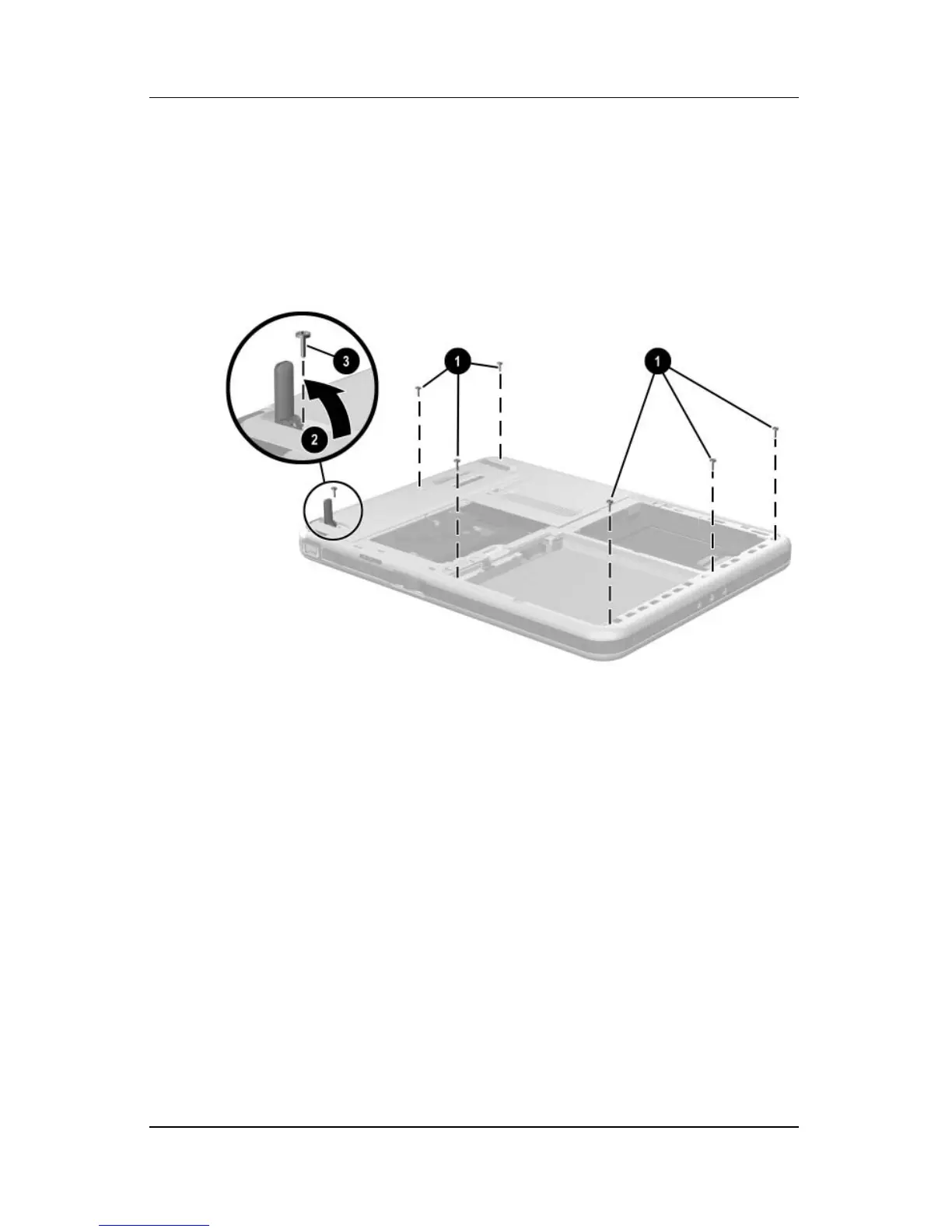

Removing the Display Panel Assembly Screws
