5–18 Maintenance and Service Guide
Removal and Replacement Procedures
7. Slide and hold the keyboard release latch 1 to the right.
8. Remove the TM2.5 × 8.0 screw
2 that secures the display
panel assembly to the base enclosure.
9. Lift the edge of the insulator
3 nearest the edge of the base
enclosure.
10. On the right side of the hard drive bay, pull the plastic tab
connected to the digitizer cable
4 to the right to disconnect
the cable.

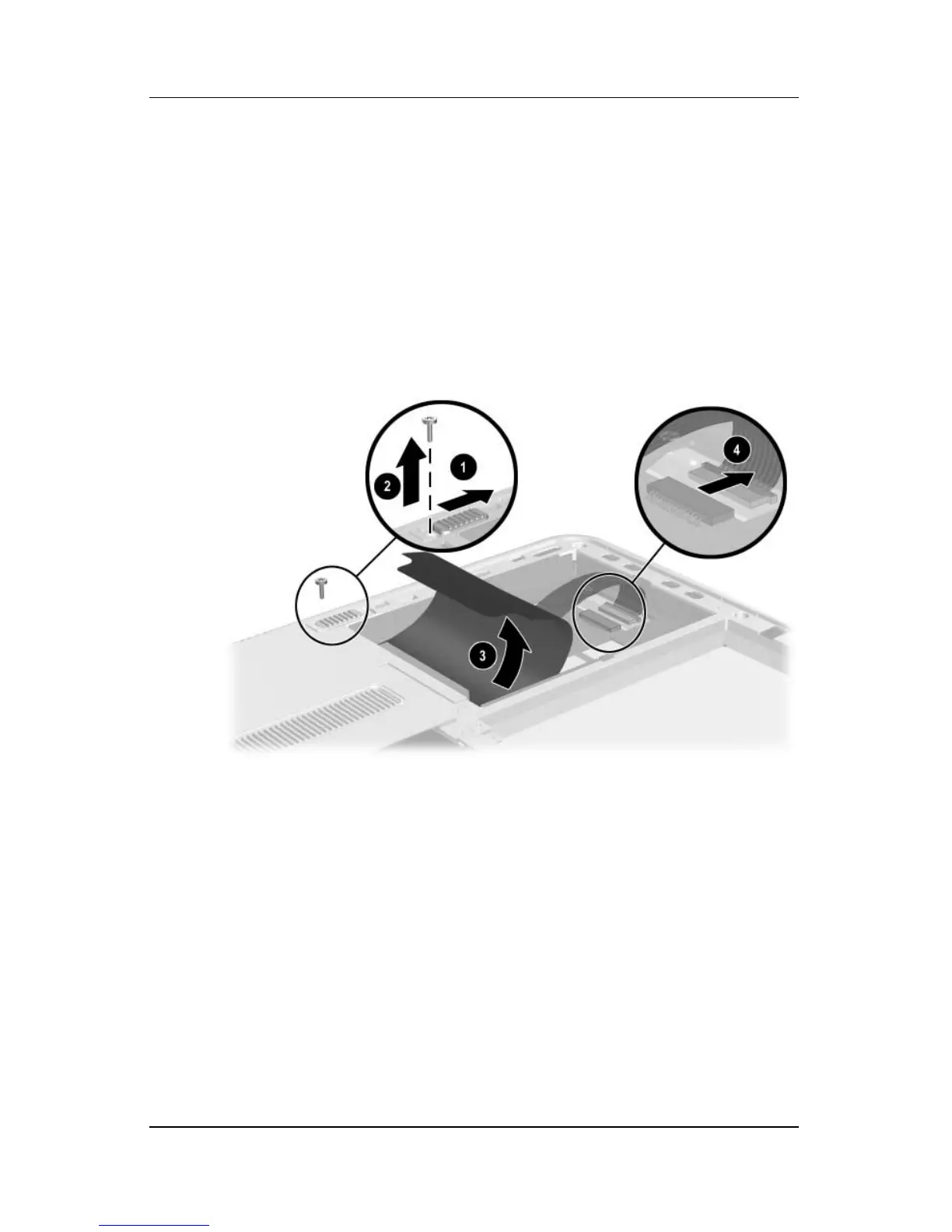

Removing the Display Panel Assembly Screw and Disconnecting the
Digitizer Cable
