5–28 Maintenance and Service Guide
Removal and Replacement Procedures
9. Release the ZIF connector 1 to which the audio cable is
attached and disconnect the cable 2 from the system board.
10. Release the ZIF connector 3 to which the button board
cable is attached and disconnect the cable 4 from the
system board.

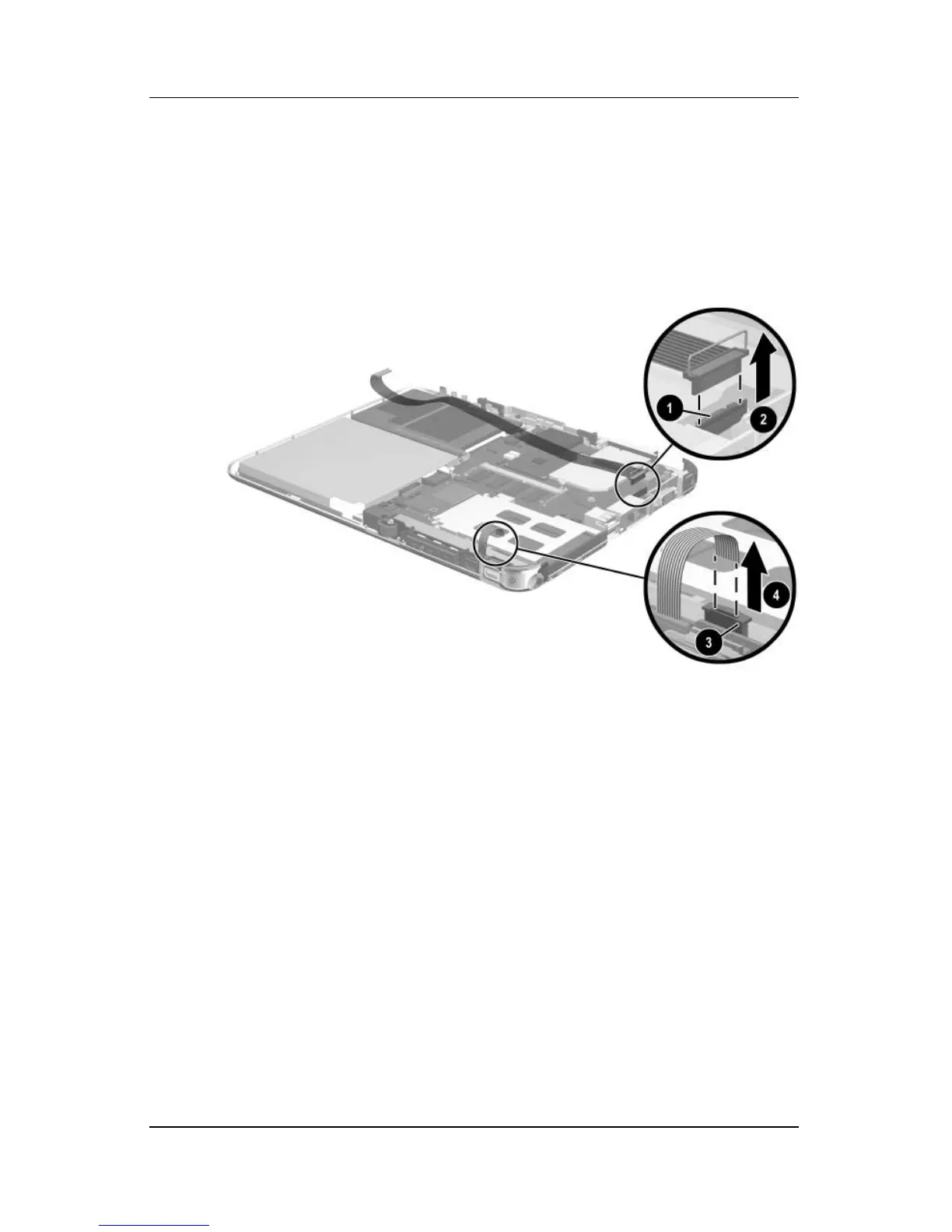

Disconnecting the Audio and Button Board ZIF Connectors
