5–40 Maintenance and Service Guide
Removal and Replacement Procedures
7. Position the docking station with the left side toward you.
✎
Make sure the docking stand and pivot arm are supported
before removing the following screws. The docking stand and
pivot arm can fall if not supported.
8. Remove the following screws:
❏ 2 PM2.5 × 8.0 screws 1 that secure the cable bracket to
the bottom case.
❏ 1 PM2.5 × 11.0 screw 2 that secures the pivot arm hinge
to the bottom case.
❏ 3 PM2.5 × 8.0 screws 3 that secure the pivot arm hinge to
the bottom case.
9. Remove the docking stand and pivot arm
4.

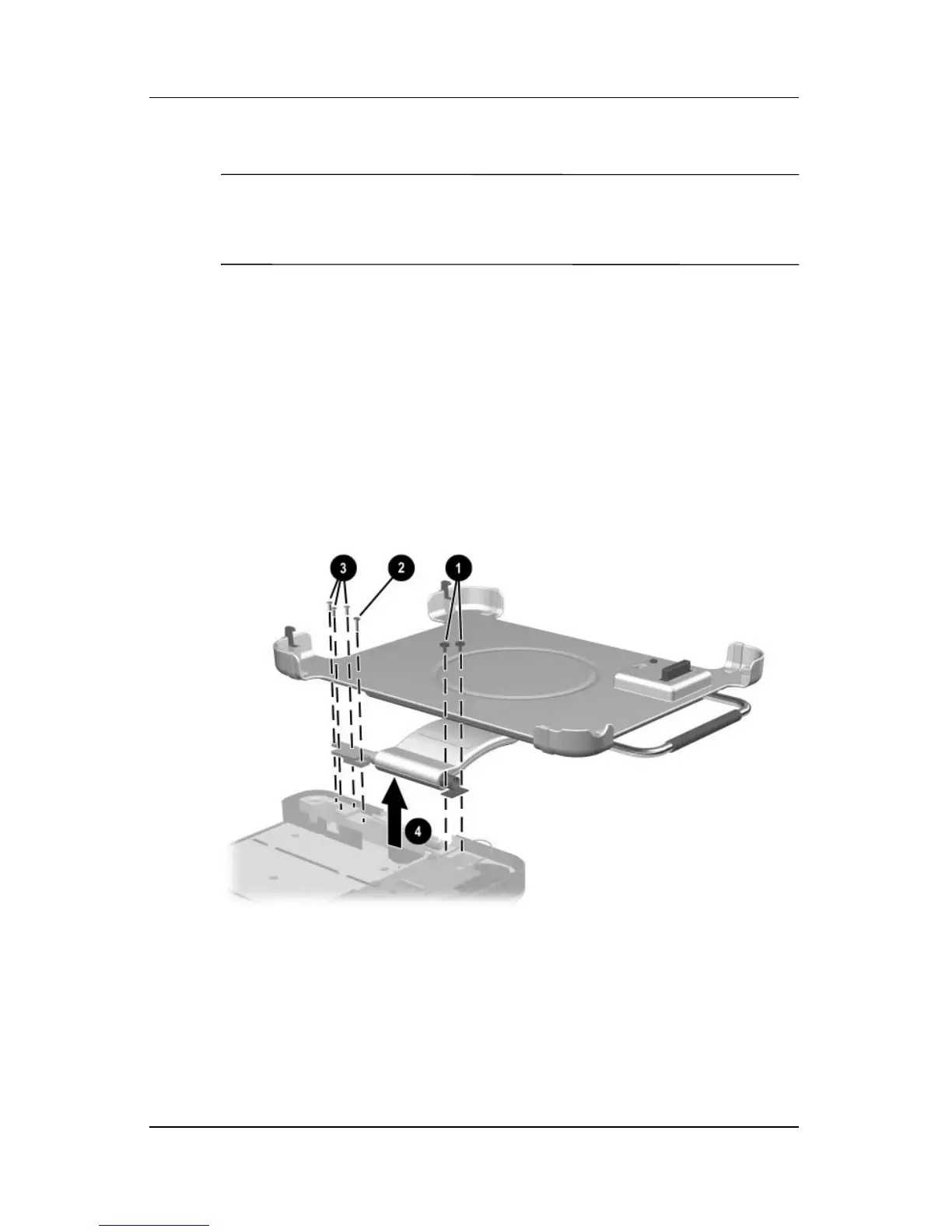

Removing the Docking Stand and Pivot Arm
To Next Page
