1–72 Maintenance and Service Guide
Product Description

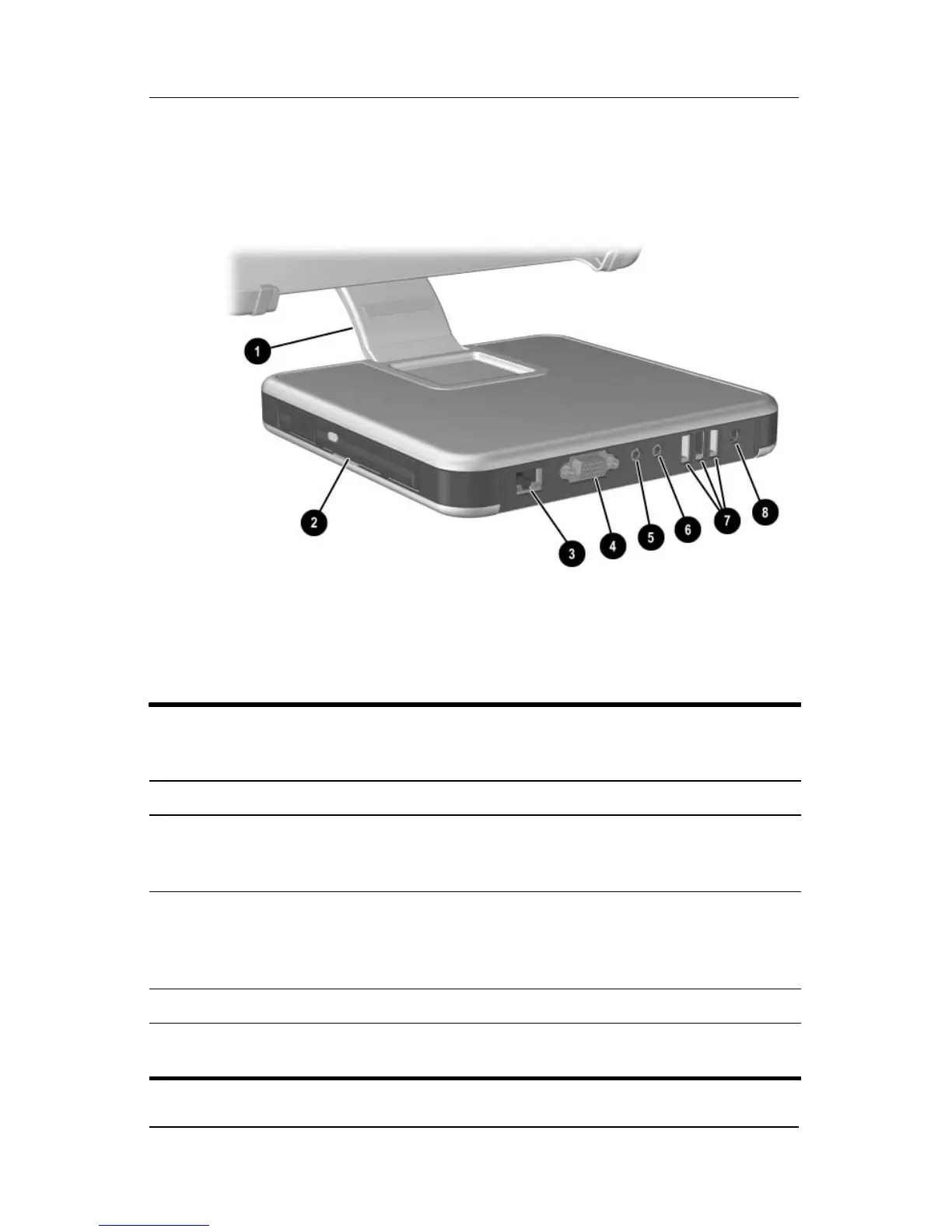

The front and left-side components on the optional docking
station are shown in the following illustration and described in
Table 1-57.
Docking Station Front and Left-Side Components
Table 1-57
Docking Station Front and Left-Side Components
Item Component Function
1 Pivot arm Tilts the docking stand forward and
backward to enable different viewing angles
and different docking modes.
2 MultiBay Supports a diskette drive, CD-ROM or
CD-RW drive, DVD-ROM drive,
DVD/CD-RW Combo Drive, or second hard
drive.
3 RJ-45 (network) jack Connects a network cable.
4 External monitor port Connects an optional external monitor or
overhead projector.
