Component identification 45
Item Description Status
1
Hard drive LEDs
Drive locate mode
(UID LED is flashing)
Green = The drive has been selected by
a management application and it is
operating normally.
Flashing amber (1 Hz) = The drive is not
selected and is indicating a predictive
failure.
Flashing amber/green = The drive has
been selected by a management
application and is indicating a
predictive failure.
Amber = The drive might or might not be
selected and is indicating drive failure,
link failure, or mismatched
configuration.
Off = The drive is not selected.
2
UID button/LED Blue = UID LED is enabled from the UID
button
Blue flashing = Item 1 is in locate mode
Off = UID LED is disabled
3
Internal Health LED Green = System health is good
Off = System is off
4
GSI LED Amber = Enclosure requires service
check: I/O, fan and power supply LEDs,
and AC power cables to power supplies.
Off = Enclosure is functioning normally.

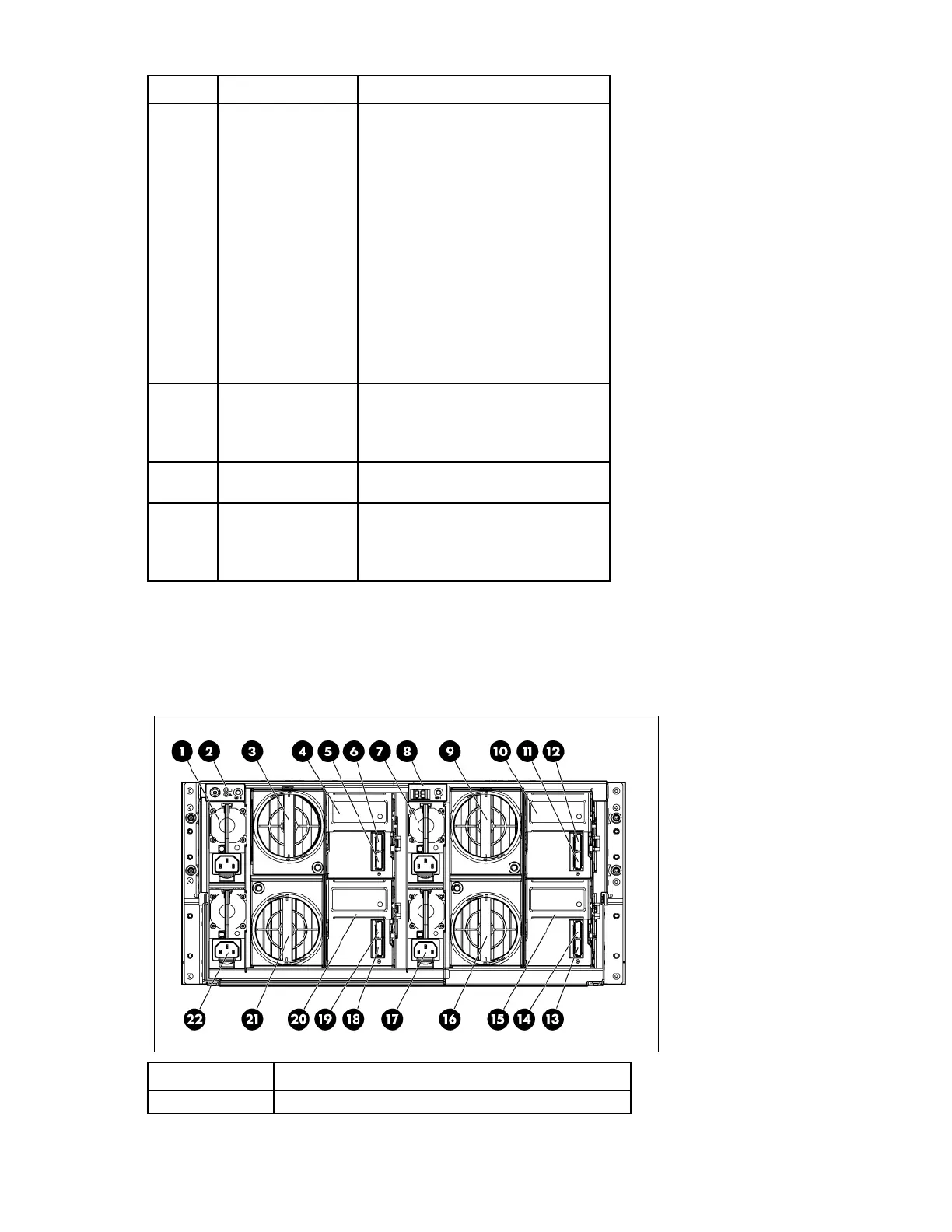

Rear panel components
The figure shows a maximum configuration. Your enclosure might appear differently, for example,
containing power supply or I/O module blanks, depending on the configuration that was ordered.
Item Description
1
Power supply 1
