HP DesignJet Z5200 series

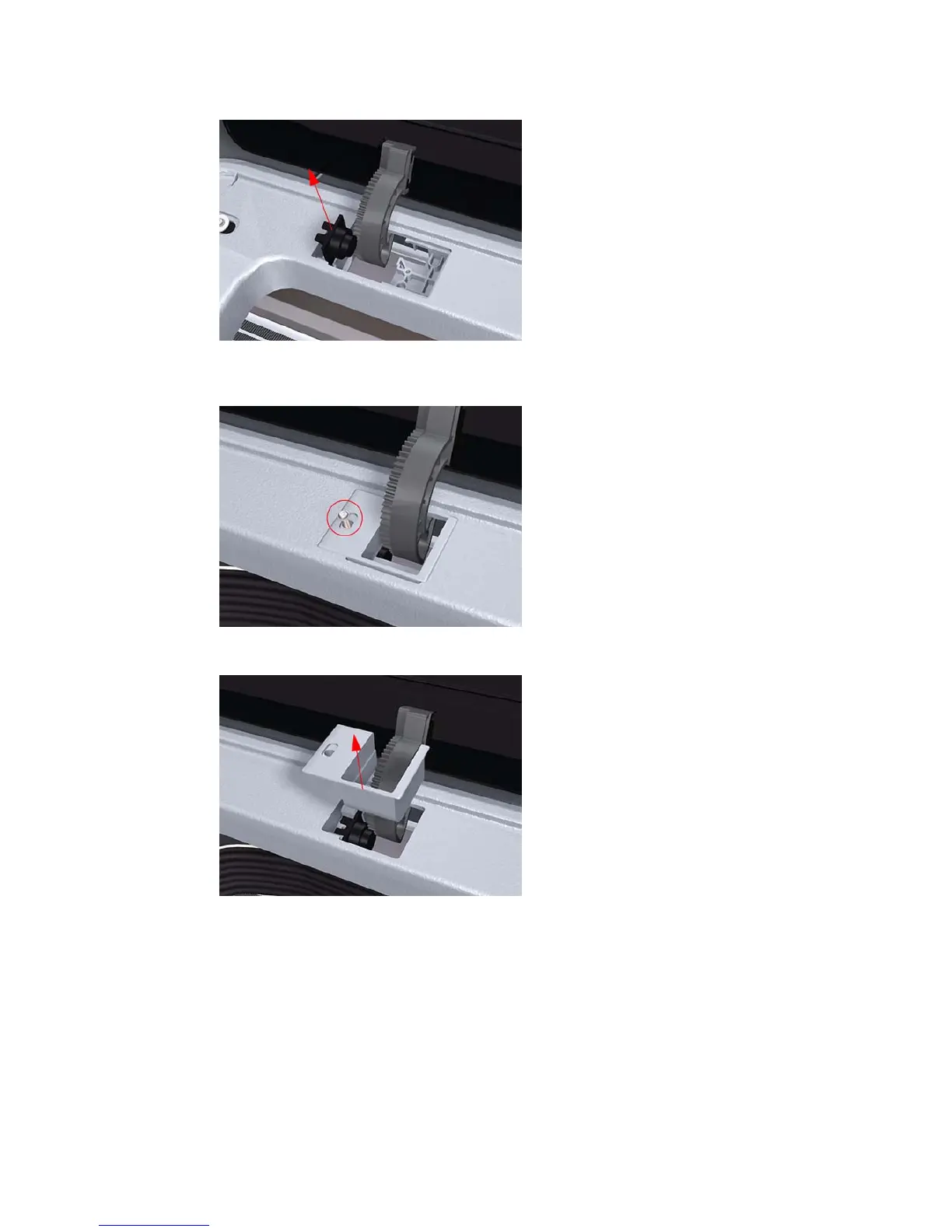

4. Remove the Damper Rotary from the Top Cover.
5. Remove the T-15 screws that secure each of the remaining three Window hinge locking plates to
the Top Cover.
6. Remove the remaining three Window hinge locking plates from the Top Cover.
ENWW Window 175
