HP DesignJet Z5200 series

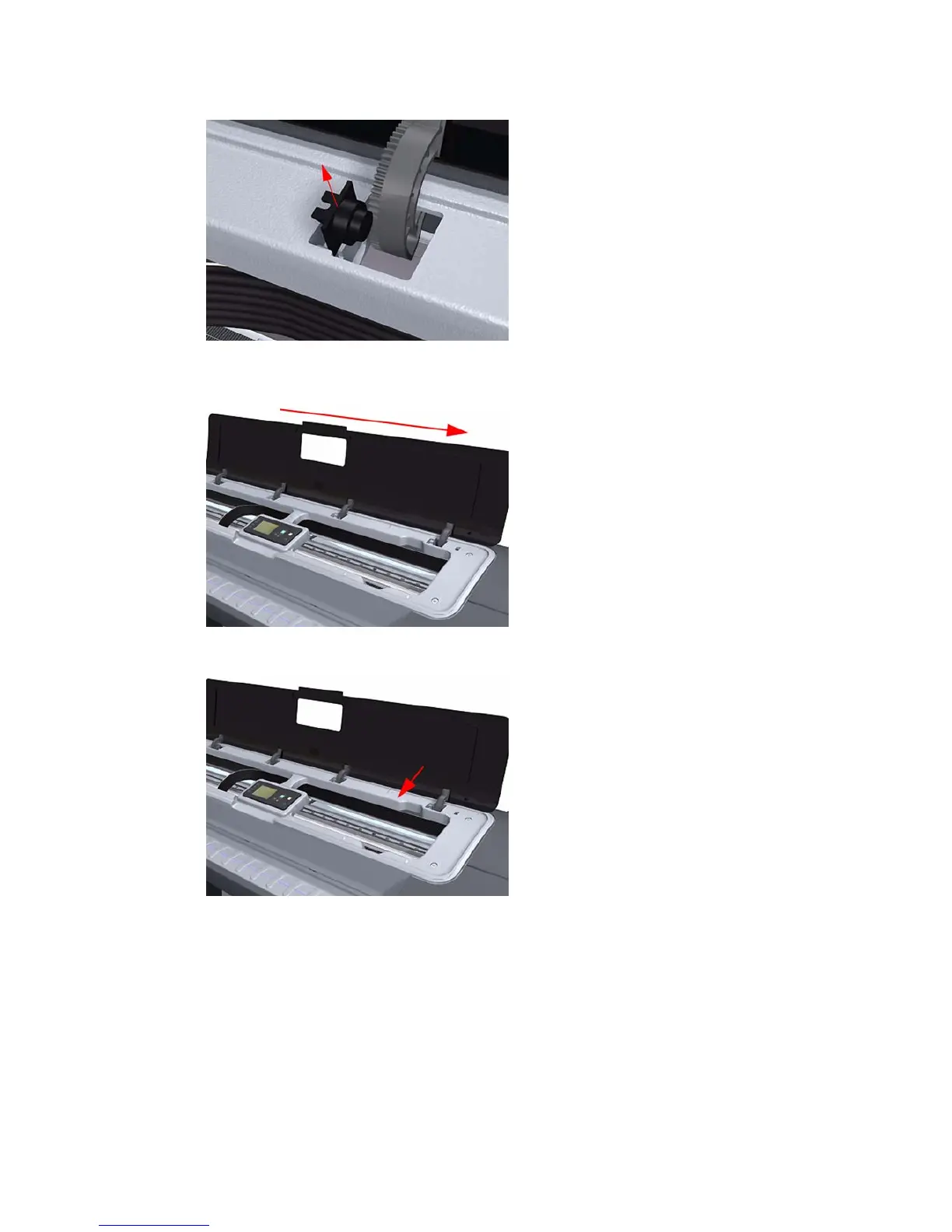

7. Remove the remaining three Damper Rotary pieces from the Top Cover.
8. Grip the Window at the left and right edges and move it horizontally towards the right as far as it
will go.
9. Pull the Window towards the front to disengage the hinges.
176 Chapter 6 Removal and Installation ENWW
