Hardware options installation 60
o

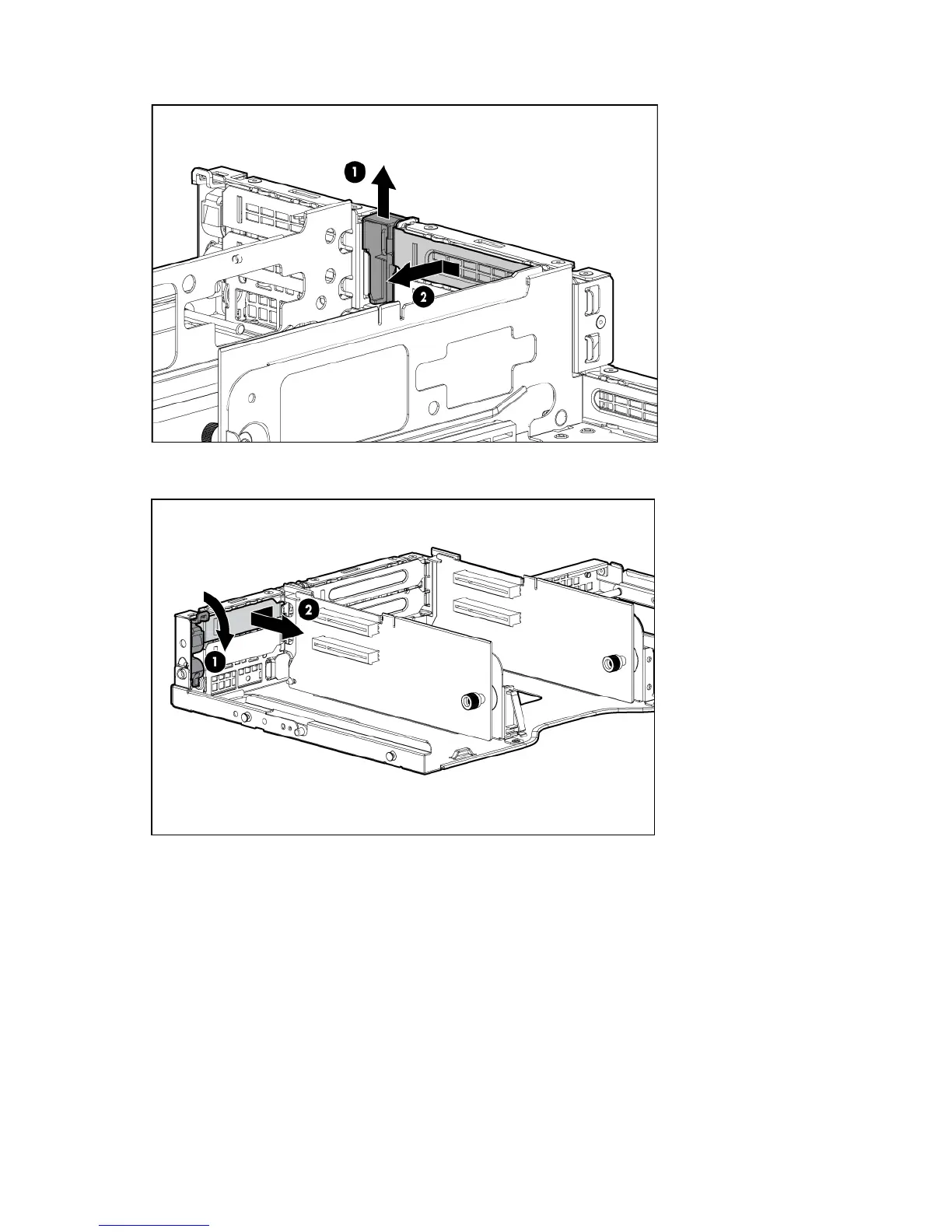

To remove slot covers 2 and 3, lift up on the latch, remove the latch, and then remove the cover.
o To remove slot covers 5 and 6, push down on the latch, rotate the latch down, and then remove
the cover.
Installing a half-length expansion board
1. Power down the server (on page 24).
2. Extend the server from the rack (on page 24).
3. Remove the access panel (on page 25).
4. Remove the full-length expansion board retainer (on page 27) if any full-length expansion boards are
installed.
5. Remove the PCI riser cage (on page 28).
6. Remove the expansion slot cover ("Expansion board options" on page 59, "Removing expansion
slot covers" on page 59).
