Installing the E-MSM720
Installation Procedures
1. Prepare the Installation Site
■ Cabling Infrastructure - Ensure the cabling infrastructure meets the
necessary network specifications.
■ Installation Location - Before installing the E-MSM720, plan its location
and orientation relative to other devices and equipment:
• In the front of the E-MSM720, leave at least 7.6 cm (3 inches) of space
for the twisted-pair and fiber-optic cabling.
• In the back of the E-MSM720, leave at least 3.8 cm (1 1/2 inches) of
space for the power cord.
• On the sides of the E-MSM720, leave at least 7.6 cm (3 inches) for
cooling.
2. Verify the E-MSM720 Passes Self Test
Before mounting the E-MSM720 in its network location, you should first verify
it is working properly by plugging it into a power source and verifying it passes
its self test.
Connect the AC/DC adapter’s power cord to the power connector on the back
of the E-MSM720, and then plug the AC/DC power adapter into a nearby
properly grounded electrical outlet.

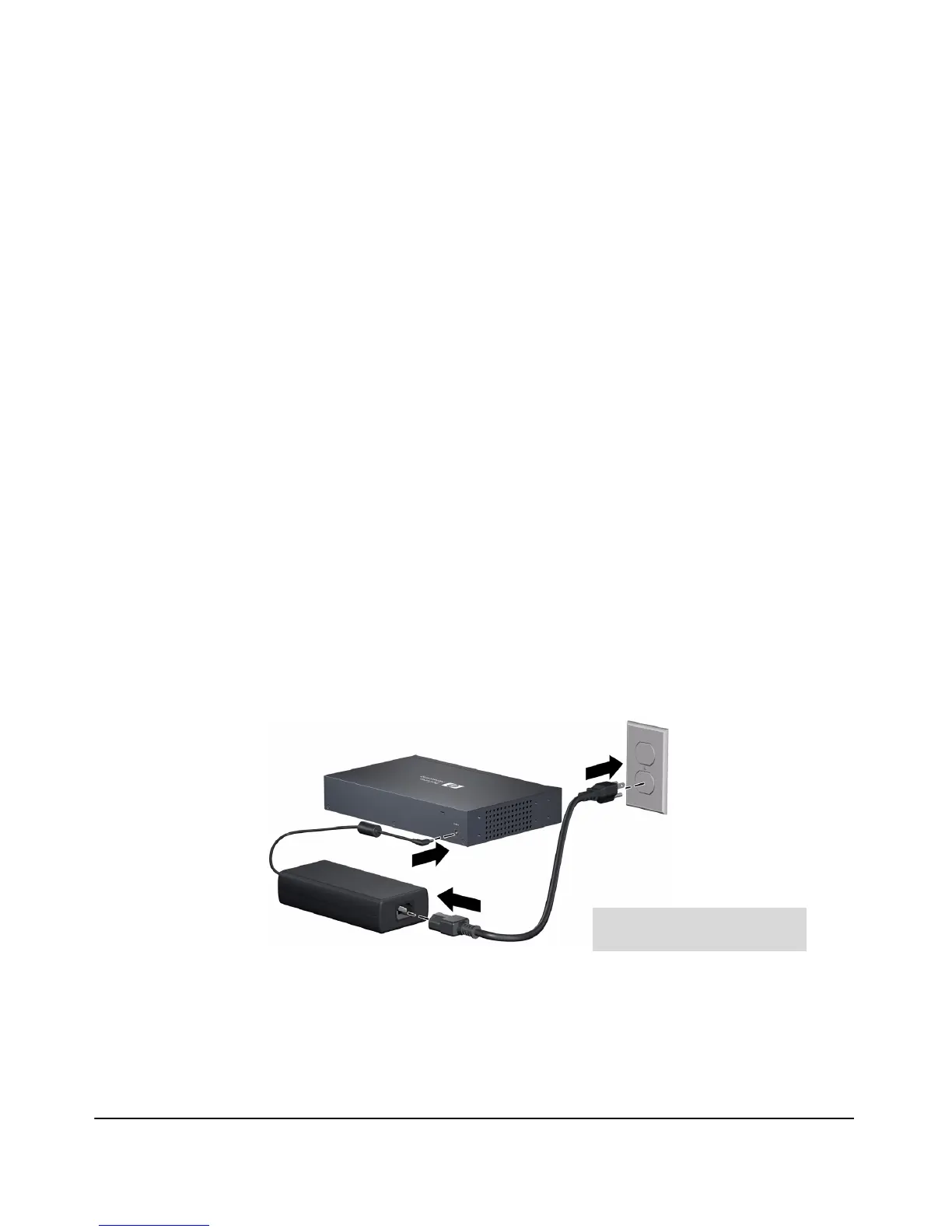

Figure 2-1. Connecting the power cord
Connect AC/DC power adapter to the
E-MSM720 and an AC power outlet
