HP Elite Dragonfly Max User Manual

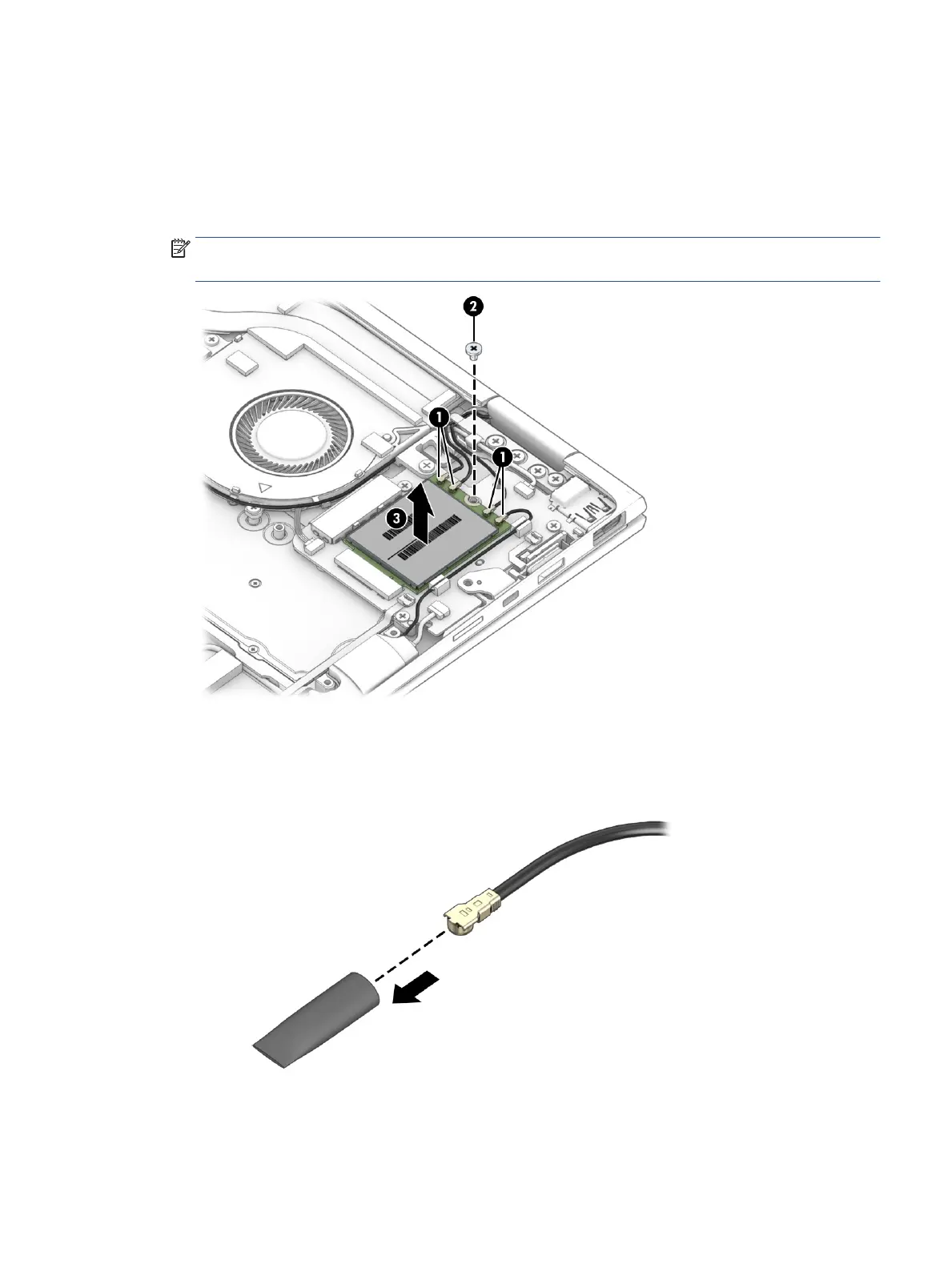

1. Disconnect the WWAN antenna cables (1) from the terminals on the WWAN module.
The number of antennas can vary.
2. Remove the Phillips M2.0 × 2.0 screw (2) that secures the WWAN module to the bottom cover. (The
WWAN module tilts up.)
3. Remove the WWAN module (3) by pulling the module away from the slot at an angle.
NOTE: When viewed with the antenna terminals at the top of the module, the white WWAN antenna
cables connects to the terminal to the left of the black WWAN antenna cables.
4. If the WWAN antenna is not connected to the terminal on the WWAN module, a protective sleeve must be
installed on the antenna connector, as shown in the following illustration.
Reverse this procedure to install the WWAN module.
Component replacement procedures 35

HP Elite Dragonfly Max Specifications

General

Storage	Up to 2 TB PCIe NVMe SSD
Graphics	Intel Iris Xe Graphics
Processor	Intel Core i5-1135G7 or i7-1185G7
Display	1920 x 1080
RAM	Up to 32GB LPDDR4x
Operating System	Windows 10 Pro
Weight	Starting at 2.49 lb (1.13 kg)
Battery	4-cell, 56 Wh Li-ion polymer
Camera	IR camera
Audio	Bang & Olufsen
Dimensions	1.61 cm
Ports	1 x HDMI 2.0, 1 x headphone/mic combo
Wireless	Intel Wi-Fi 6 AX201 (2x2) and Bluetooth 5 combo
Security	HP Sure Sense, HP Sure Click, HP Sure Start
