HP Elite Dragonfly Max User Manual

Heat sink and fan assembly
To remove the heat sink and fan assembly, use these procedures and illustrations.
Table 5-5 Heat sink and fan assembly descriptions and part numbers
Description Spare part number
Heat sink and fan assembly M42267-001
Before removing the heat sink and fan assembly, follow these steps:
1. Prepare the computer for disassembly (Preparation for disassembly on page 29).
2. Remove the bottom cover (Bottom cover on page 29).
3. Disconnect the battery cable from the system board (see Battery on page 30).

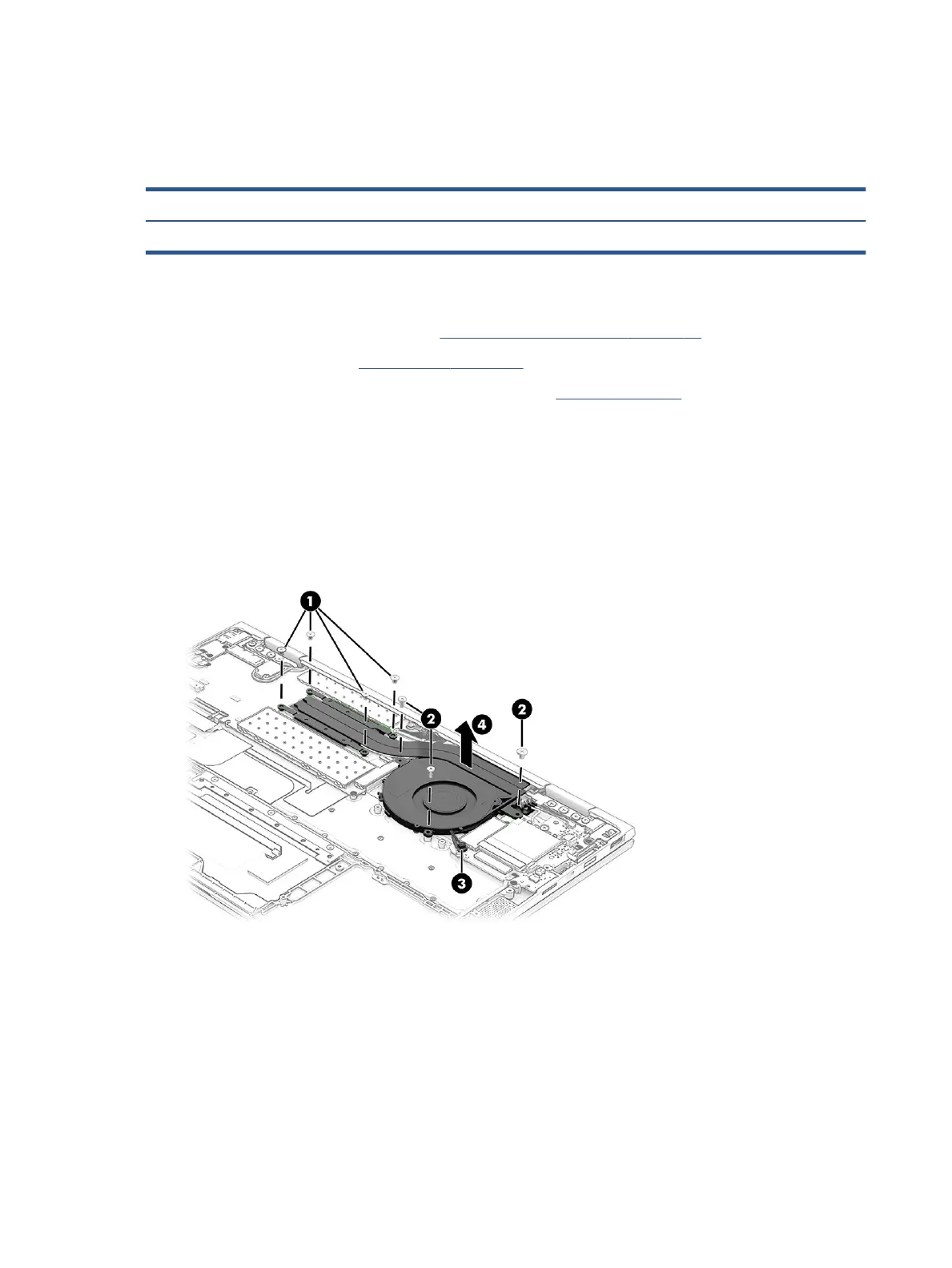

Remove the heat sink and fan assembly:
1. Remove the four Phillips M2.0 × 3.0 screws (1) that secure the heat sink to the computer.
2. Remove the three Phillips M2.0 × 3.0 screws (2) that secure the fan to the computer.
3. Disconnect the fan cable from the system board (3).
4. Remove the fan and heat sink assembly from the computer (4).
36 Chapter 5 Removal and replacement procedures for authorized service provider parts

HP Elite Dragonfly Max Specifications

General

Storage	Up to 2 TB PCIe NVMe SSD
Graphics	Intel Iris Xe Graphics
Processor	Intel Core i5-1135G7 or i7-1185G7
Display	1920 x 1080
RAM	Up to 32GB LPDDR4x
Operating System	Windows 10 Pro
Weight	Starting at 2.49 lb (1.13 kg)
Battery	4-cell, 56 Wh Li-ion polymer
Camera	IR camera
Audio	Bang & Olufsen
Dimensions	1.61 cm
Ports	1 x HDMI 2.0, 1 x headphone/mic combo
Wireless	Intel Wi-Fi 6 AX201 (2x2) and Bluetooth 5 combo
Security	HP Sure Sense, HP Sure Click, HP Sure Start
