Table 5-15 Display description and part number
Description Spare part number
FHD, antiglare, 1000 nits, privacy M45173-001
FHD, antiglare, 1000 nits, privacy, 5G M45174-001
Before removing the display panel, follow these steps:
1. Prepare the computer for disassembly (Preparation for disassembly on page 29).
2. Remove the bottom cover (Bottom cover on page 29).
3. Disconnect the battery cable from the system board (see Battery on page 30).
4. Remove the USB board (USB board on page 42).
5. Remove the power button board (Power button board on page 43).

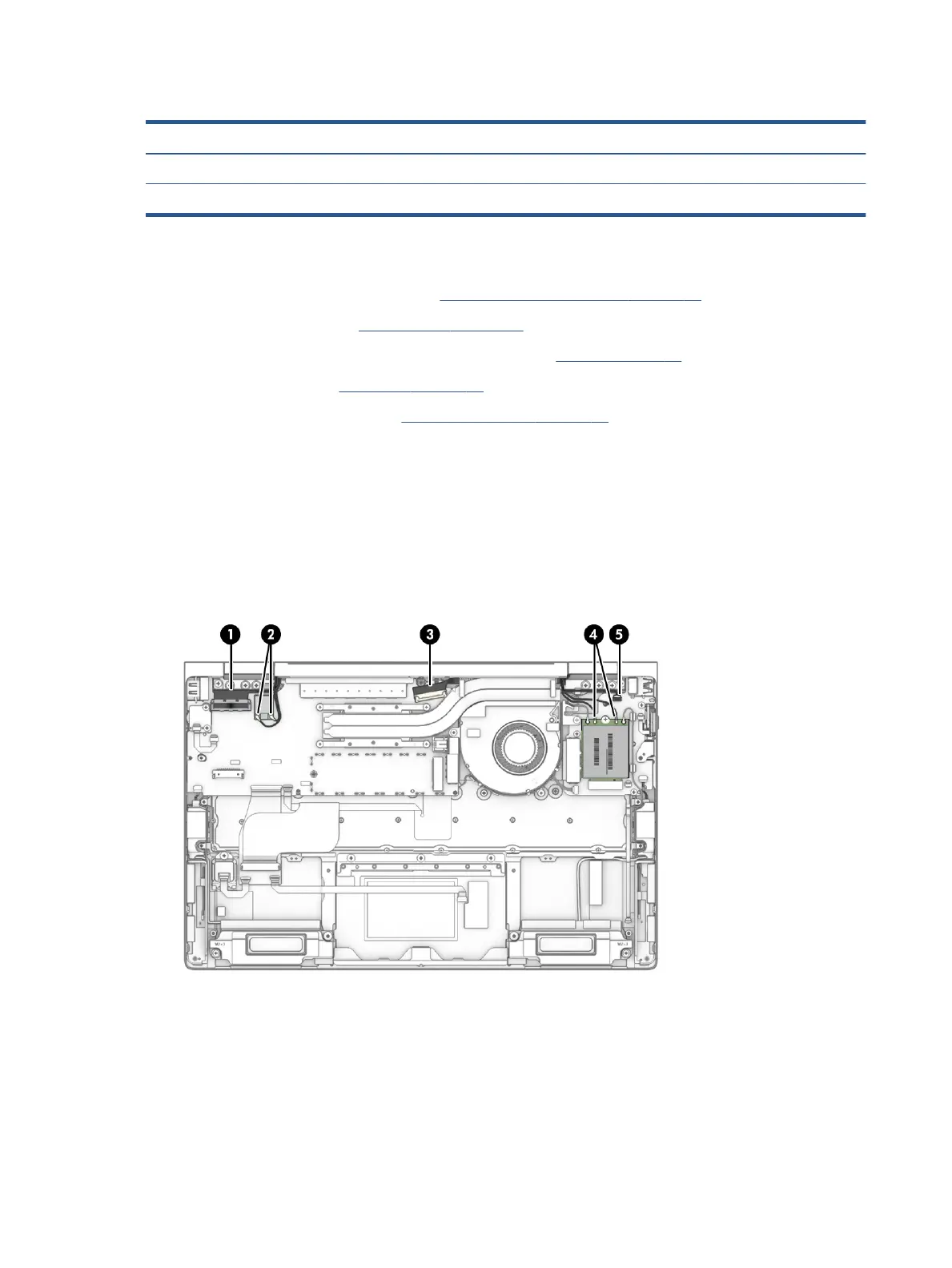

Remove the display assembly:
1. Disconnect the display cable from the system board (1).
2. Disconnect the antenna cables from the WLAN module (2).
3. Disconnect the display cable from the system board (3).
4. Disconnect the antenna cables from the WWAN module (4).
5. Disconnect the touch cable from the USB board (5).
6. Remove the four Phillips M2.5 × 4.0 screws (1) from each hinge.
48 Chapter 5 Removal and replacement procedures for authorized service provider parts
