HP EliteBook 745 G3 User Manual

SSD
Description Spare part number
Solid-state drive
512 GB, PCIe 3x4 823959-001
256 GB, PCIe 3x4 823958-001
256 GB, SATA-3 self-encrypting drive Opal-2 MLC 823957-001
256 GB, SATA-3 TLC 823956-001
180 GB, SATA-3, self-encrypting drive Opal-2 MLC 823955-001
180 GB, SATA-3 MLC 823954-001
128 GB, SATA-3 TLC 823953-001
240 GB, SATA-3 (only available on 15” computers) 836618-001
Before removing the SSD, follow these steps:
1. Turn o the computer. If you are unsure whether the computer is o or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect the power from the computer by unplugging the power cord from the computer.
3. Disconnect all external devices from the computer.
4. Remove the bottom cover (see Bottom cover on page 34).
5. Disconnect the battery (see Battery on page 39).

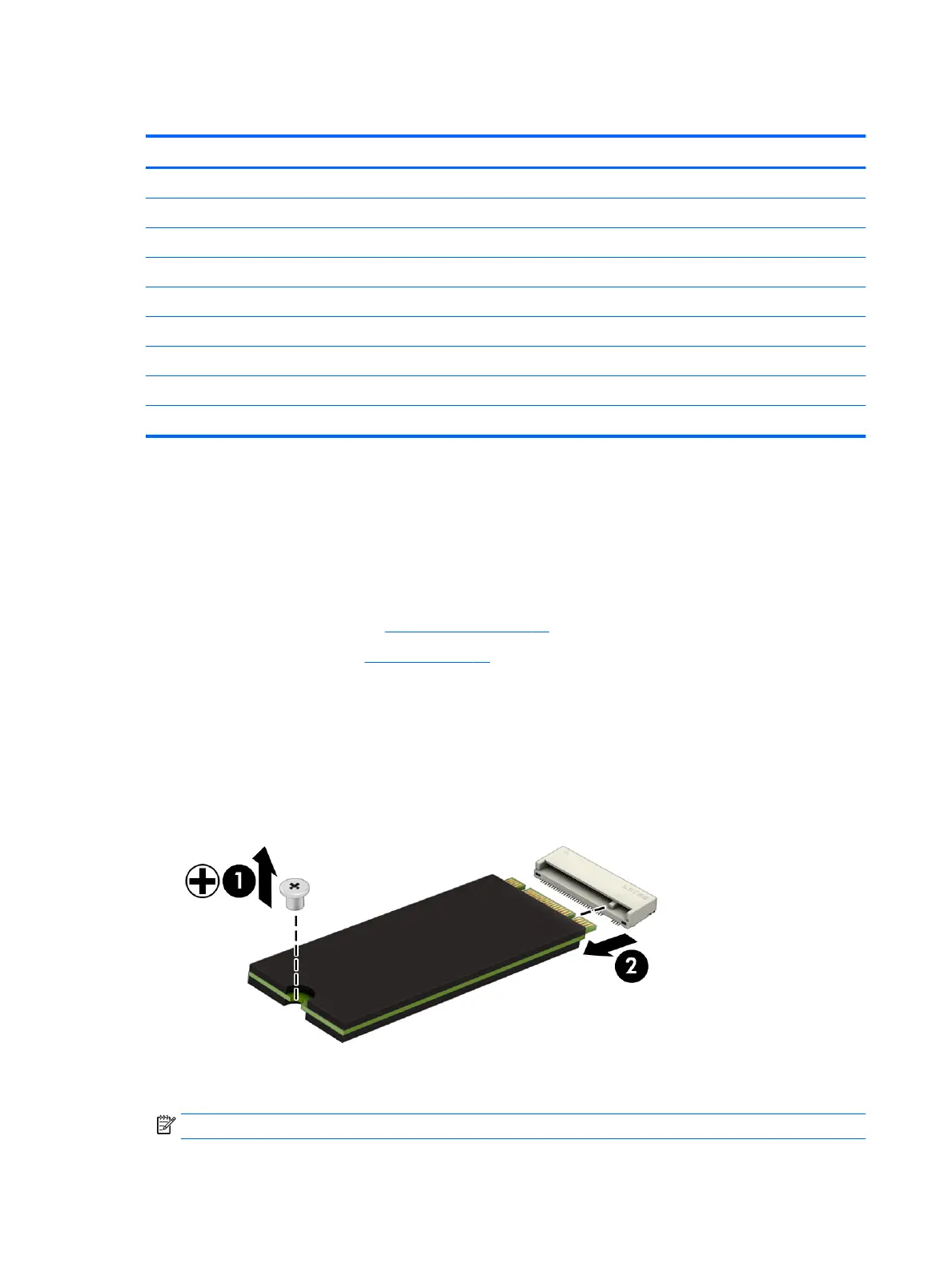

Remove the SSD:
1. Remove the Phillips PM2.0×3.0 screw (1) that secures the drive to the system board.
2. Remove the drive (2) by pulling it away from the connector.
NOTE: mSATA drives are designed with notches to prevent incorrect insertion.
42 Chapter 5 Removal and replacement procedures for Customer Self-Repair parts

HP EliteBook 745 G3 Specifications

General

Form factor	Clamshell
Product type	Laptop
Product color	Black, Silver
Country of origin	China
Memory slots	2x SO-DIMM
Internal memory	8 GB
Memory clock speed	1600 MHz
Memory form factor	SO-DIMM
Internal memory type	DDR3L-SDRAM
Maximum internal memory	16 GB
Memory layout (slots x size)	1 x 8 GB
3D	No
AC adapter included	Yes
Intel segment tagging	Enterprise
SSD capacity	The Solid State Drive's storage capacity in Gigabytes.
Storage media	SSD
Total storage capacity	256 GB
Compatible memory cards	SD, SDHC, SDXC
Number of SSDs installed	1
Panel type	SVA
Display surface	Matt
Display diagonal	14 \
Native aspect ratio	16:9
Discrete graphics card model	Not available
On-board graphics card model	AMD Radeon R7
On-board graphics card base frequency	800 MHz
Number of built-in speakers	2
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n), 802.11a, Wi-Fi 5 (802.11ac)
Bluetooth version	4.0
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Charging port type	DC-in jack
USB 2.0 ports quantity	0
Sustainability certificates	ENERGY STAR
Cables included	AC
AC adapter power	45 W
Battery capacity	46 Wh
Battery life (max)	- h
Number of battery cells	3
Keyboard layout	-
Pointing device	Touchpad
Processor cache	3 MB
Processor model	PRO A12-8800B
Processor family	AMD PRO A12
Processor threads	4
Processor frequency	2.1 GHz
Processor cache type	L2
Processor manufacturer	AMD
Processor boost frequency	3.4 GHz
Operating system installed	Windows 7 Professional
Operating system architecture	64-bit

Weight and Dimensions

Depth	237 mm
Width	338 mm
Height	18.9 mm
Weight	1540 g
