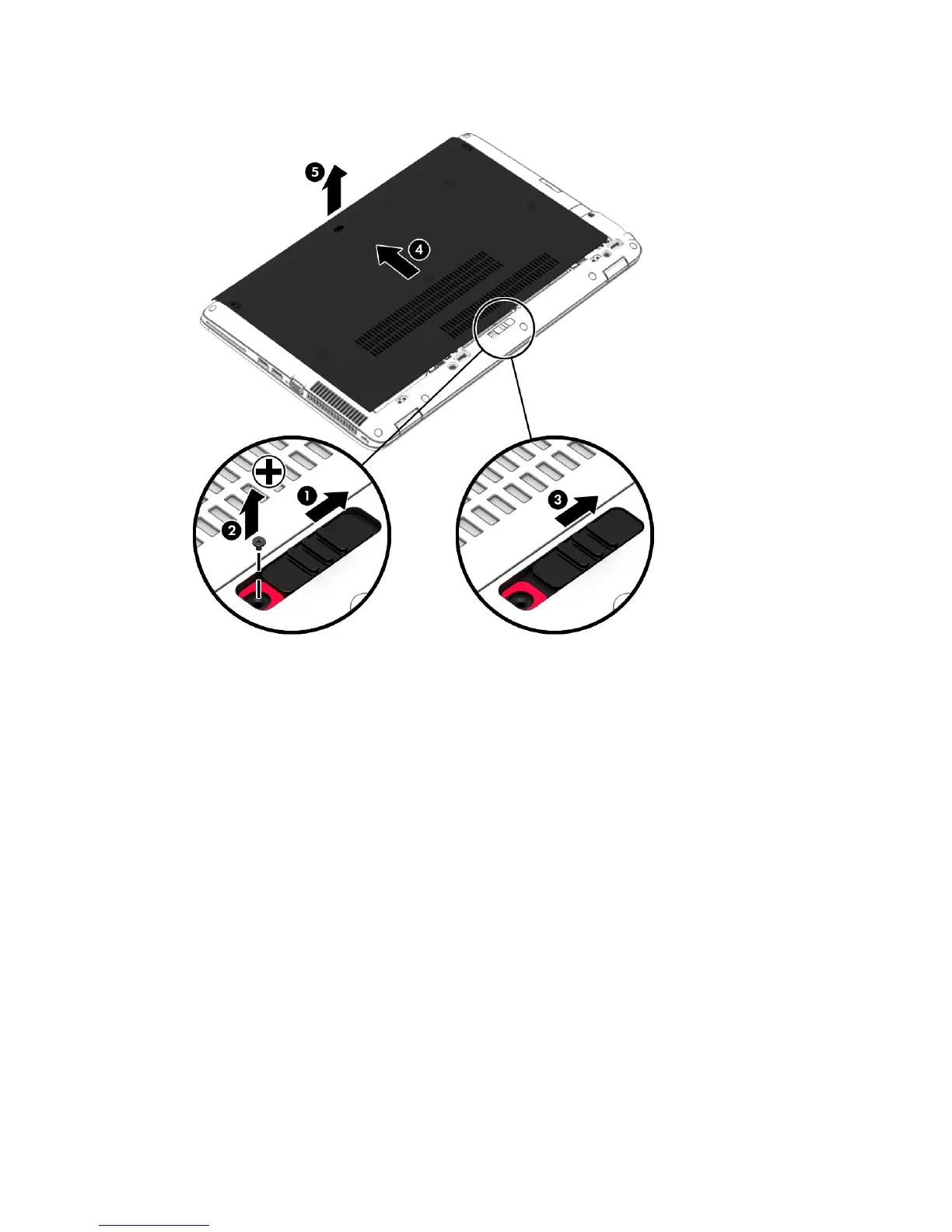

3. Slide the service door toward the front of the computer (4) and lift (5) to remove the service door.
Replacing the service door
Replace the service door after accessing the memory module slot, hard drive, regulatory label, and other
components.
1. Tilt down the service door to align the front edge of the service door near the front edge of the
computer (1).
2. Insert the alignment tabs (2) on the rear edge of the service door with the notches on the computer.
3. Slide the service door toward the battery bay until the service door snaps into place.
58 Chapter 8 Drives
