5. Remove the battery (Removing a battery on page 46).

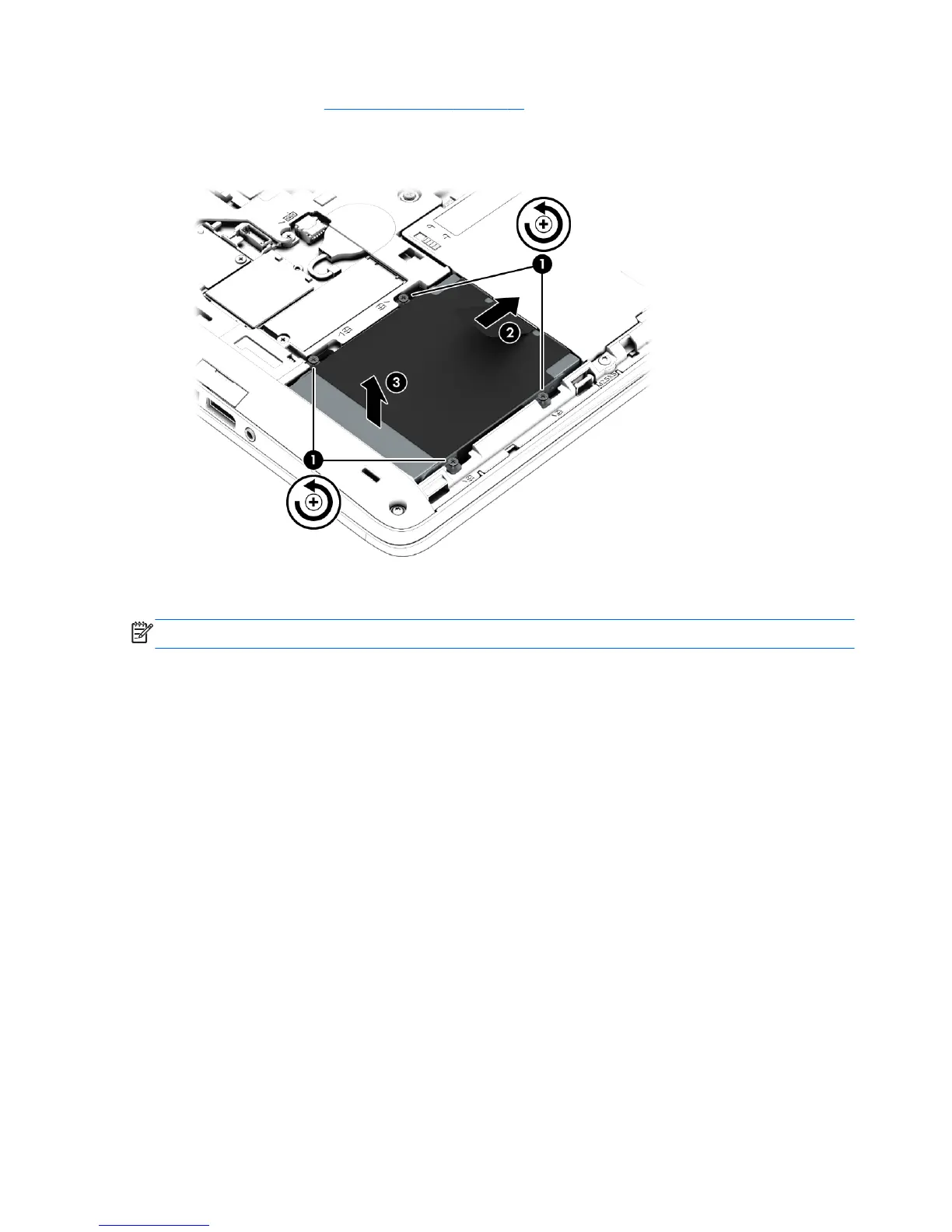

6. Loosen the 4 hard drive cover screws (1). Pull the hard drive tab (2) to disconnect the hard drive.
7. Lift the hard drive (3) out of the hard drive bay.
Installing a hard drive
NOTE: Your computer may look slightly different from the illustration in this section.
To install the hard drive:
1. Insert the hard drive into the hard drive bay at an angle (1).
2. Pull the plastic tab (2) toward the edge of the computer to engage the hard drive with the connector.
60 Chapter 8 Drives
