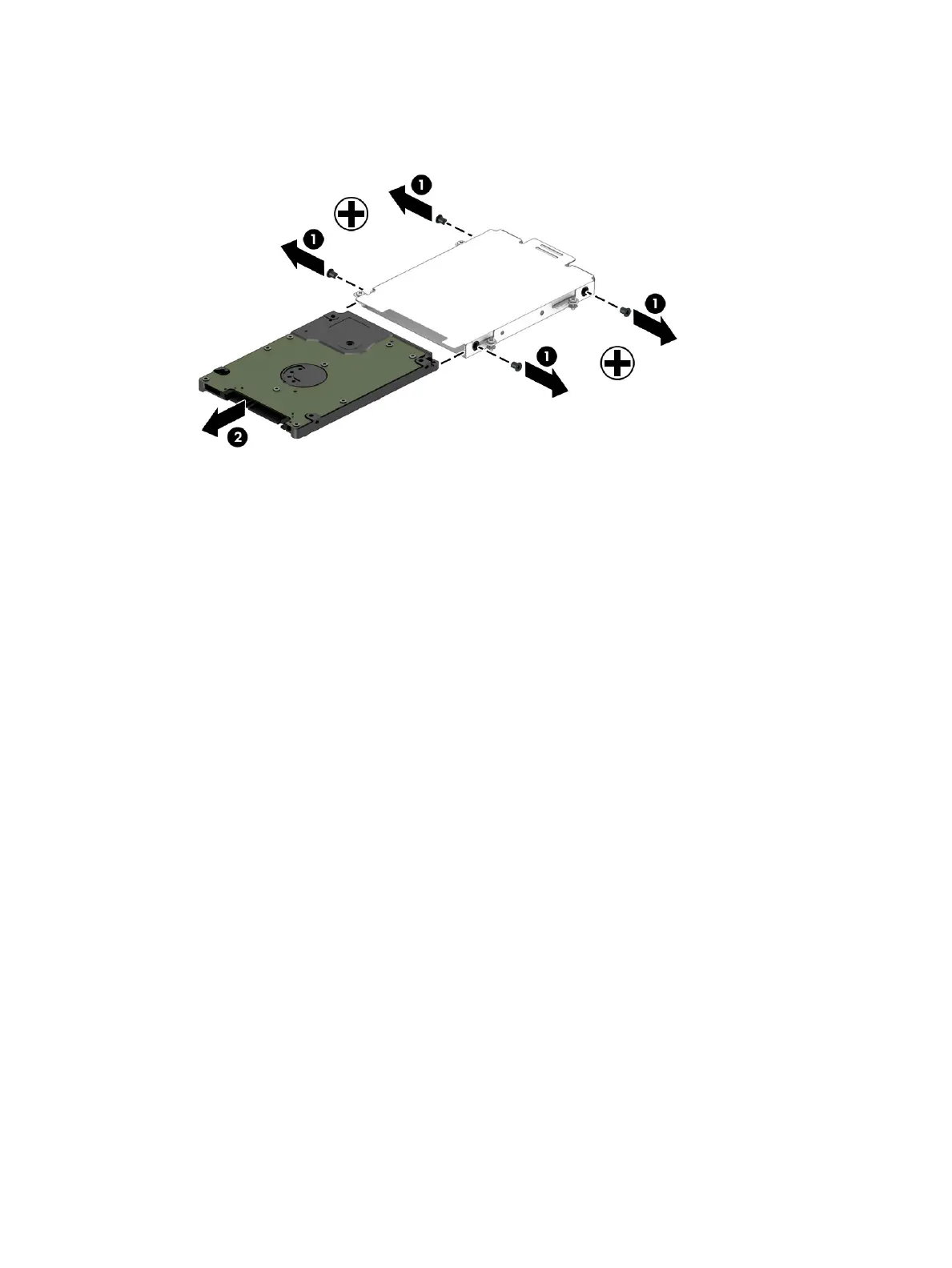

4. To remove the hard drive cover and bracket from the hard drive, lift the Mylar cover up o the drive,
remove the 4 Phillips M3.0×3.0 screws (1) that secure the bracket to the drive, and then lift the bracket
up and o the hard drive (2).
Reverse this procedure to install a hard drive.
Component replacement procedures 35
