Flex port module
For a list of available ex port modules, see Computer major components on page 5.
A ex port module can be installed near the back of the system board that provides an additional connector
on the rear I/O panel.
To remove the ex port module:
1. Prepare the computer for disassembly (Preparation for disassembly on page 17).
2. Remove the access panel (Access panel on page 18).
3. Remove the rear fan (Rear fan on page 30).

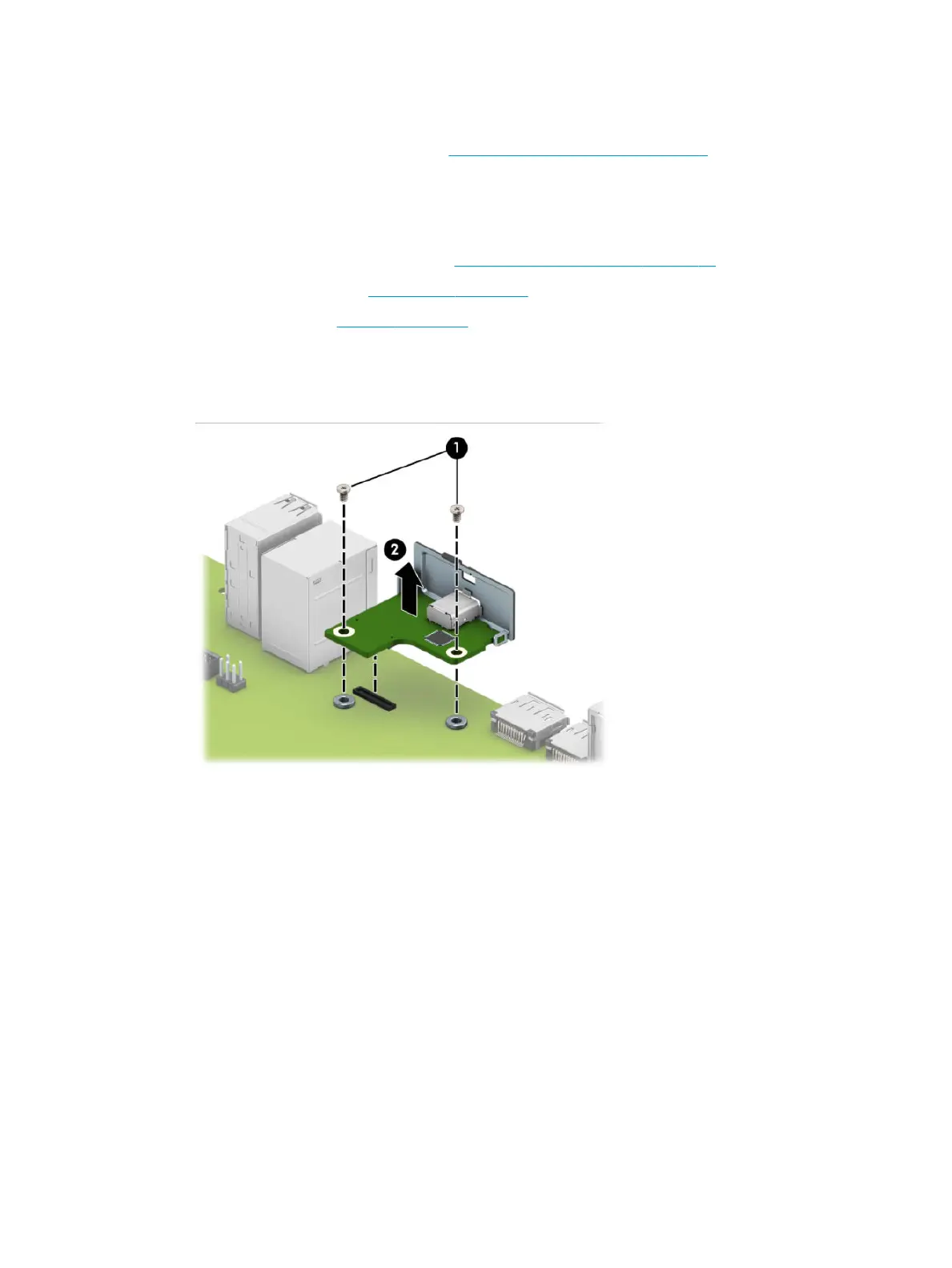

4. Remove the two Phillips screws (1) that secure the module to the system board.
5. Lift to disengage the module from the system board connector, and then remove the module from the
computer (2).
To install a ex port module, reverse the removal procedures.
Flex port module 31
