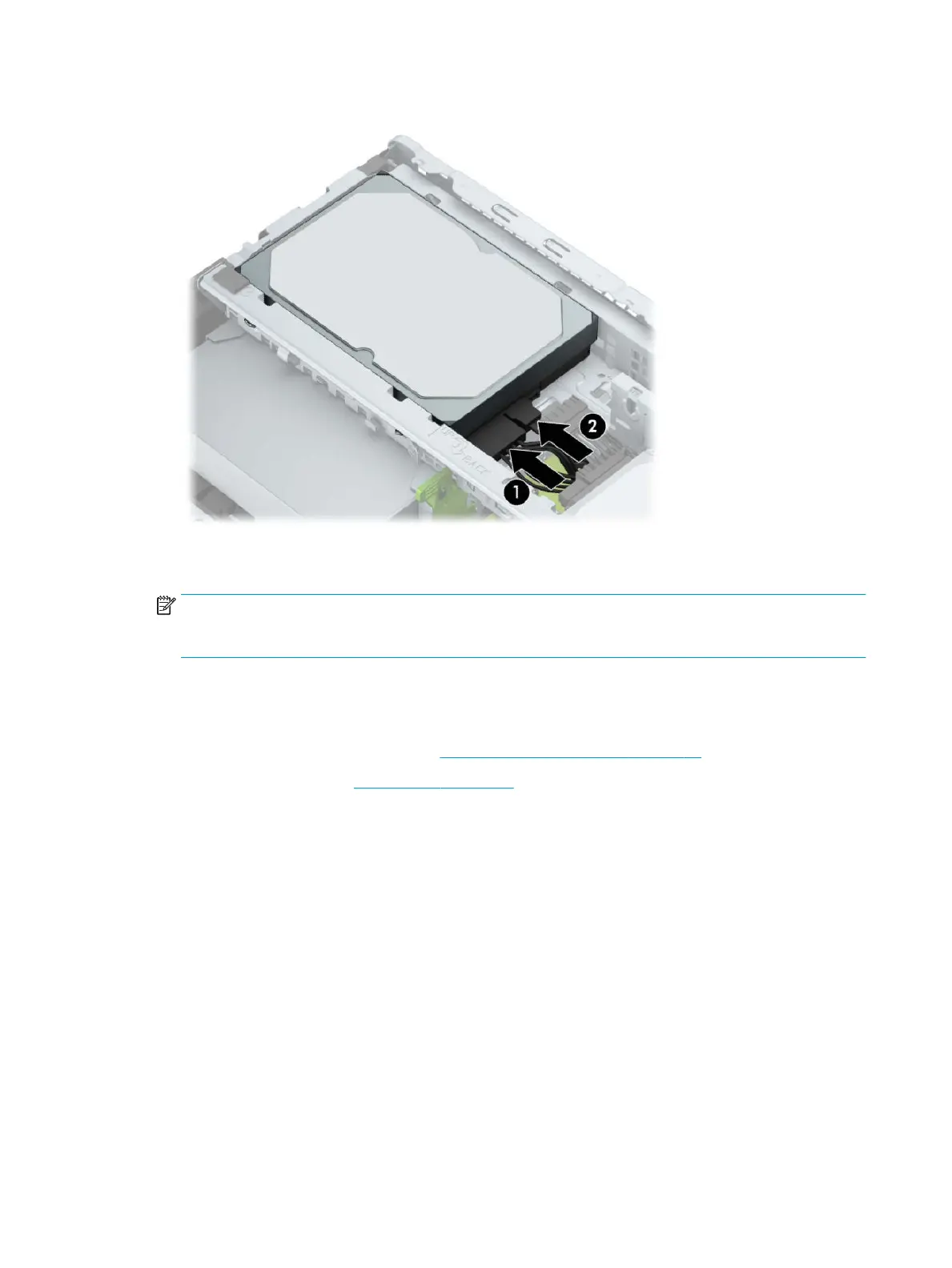

5. Connect the power cable (1) and data cable (2) to the rear of the hard drive.
6. If installing a new drive, connect the opposite end of the data cable to the appropriate system board
connector.
NOTE: If the 3.5-inch hard drive is the primary drive, connect the other end of the data cable to the
dark-blue SATA connector on the system board labeled SATA0. If it is a secondary hard drive, connect the
other end of the data cable to one of the light-blue SATA connectors on the system board.
7. Reassemble the computer.
Removing a 2.5-inch hard drive
1. Prepare the computer for disassembly (Preparation for disassembly on page 17)
2. Remove the access panel (Access panel on page 18)
50 Chapter 4 Removal and replacement procedures
