Power supply
For a list of available power supplies, see Computer major components on page 5.
The power supply is secured to the rear of the chassis with three screws. Three cables connect the power
supply to the system board.
1. Prepare the computer for disassembly (Preparation for disassembly on page 17).
2. Remove the access panel (Access panel on page 18).
3. Remove the front bezel (Front bezel on page 19).
4. Disconnect the power and data cables from the rear of the drives in the drive cage.
5. Remove the drive cage (Drive cage on page 32)

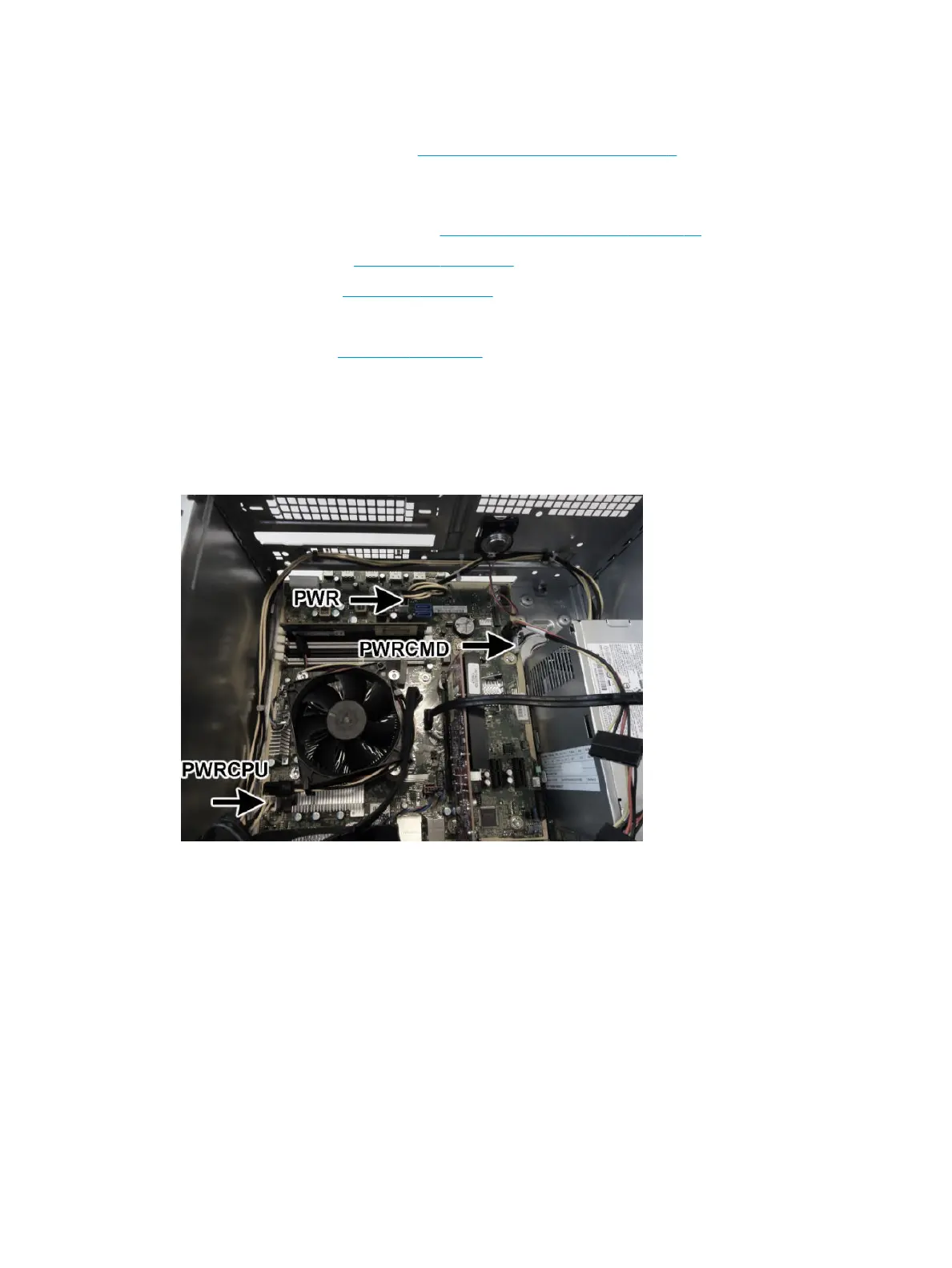

6. Disconnect the power supply cables from the following system board connectors:
– PWRCPU
– PWR
– PWRCMD
