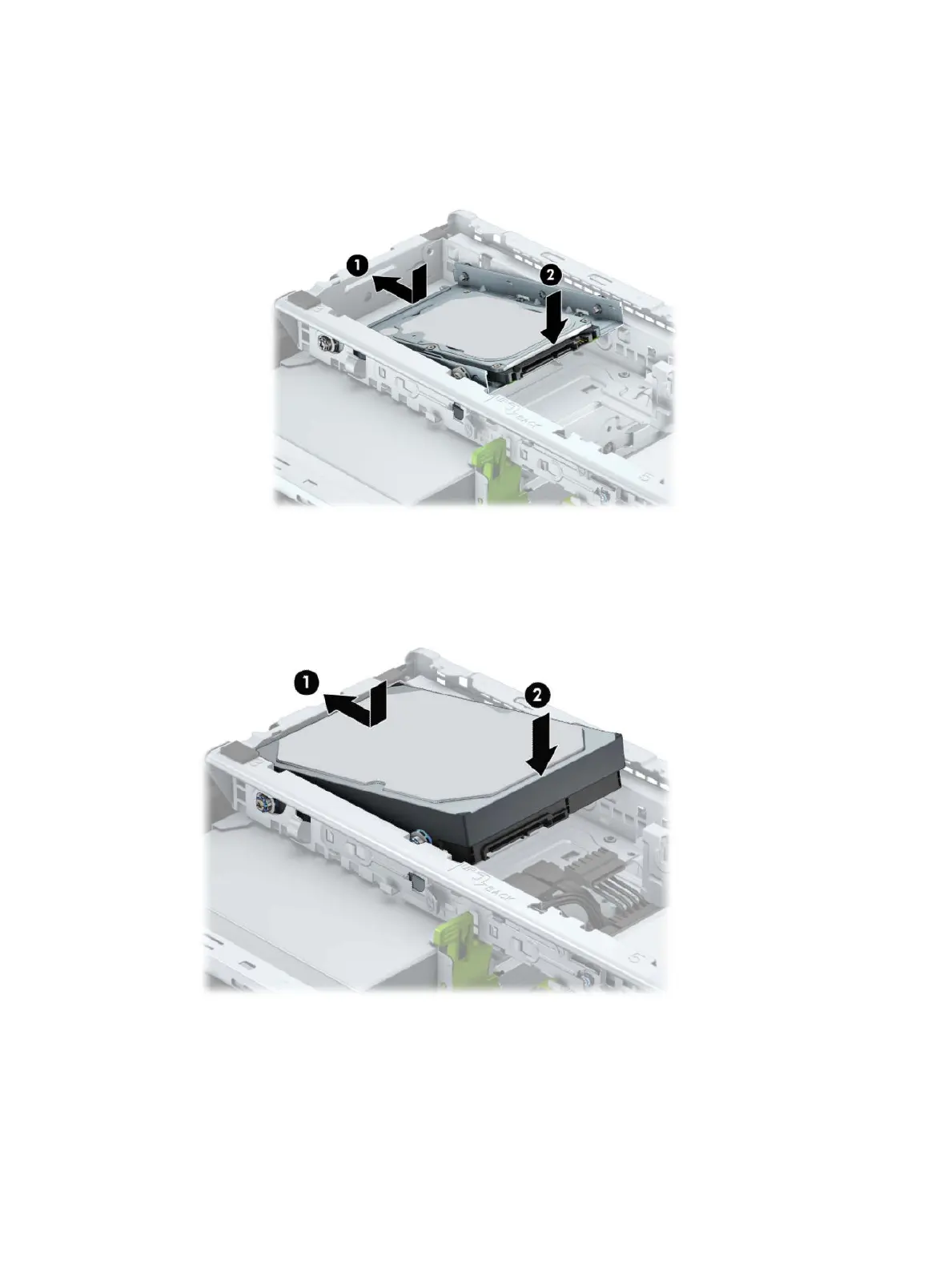

Align the mounting screws on the front of the bracket with the slots on the drive cage and
press the front of the drive down and forward into the bay (1). Then press the rear of the
bracket down into the drive bay (2) to lock it in place.
4. Align the mounting screws on the front of the hard drive with the slots on the drive cage and press the
front of the drive down and forward into the bay (1). Then press the rear of the drive down into the drive
bay (2) to lock it in place.
Drives 49
