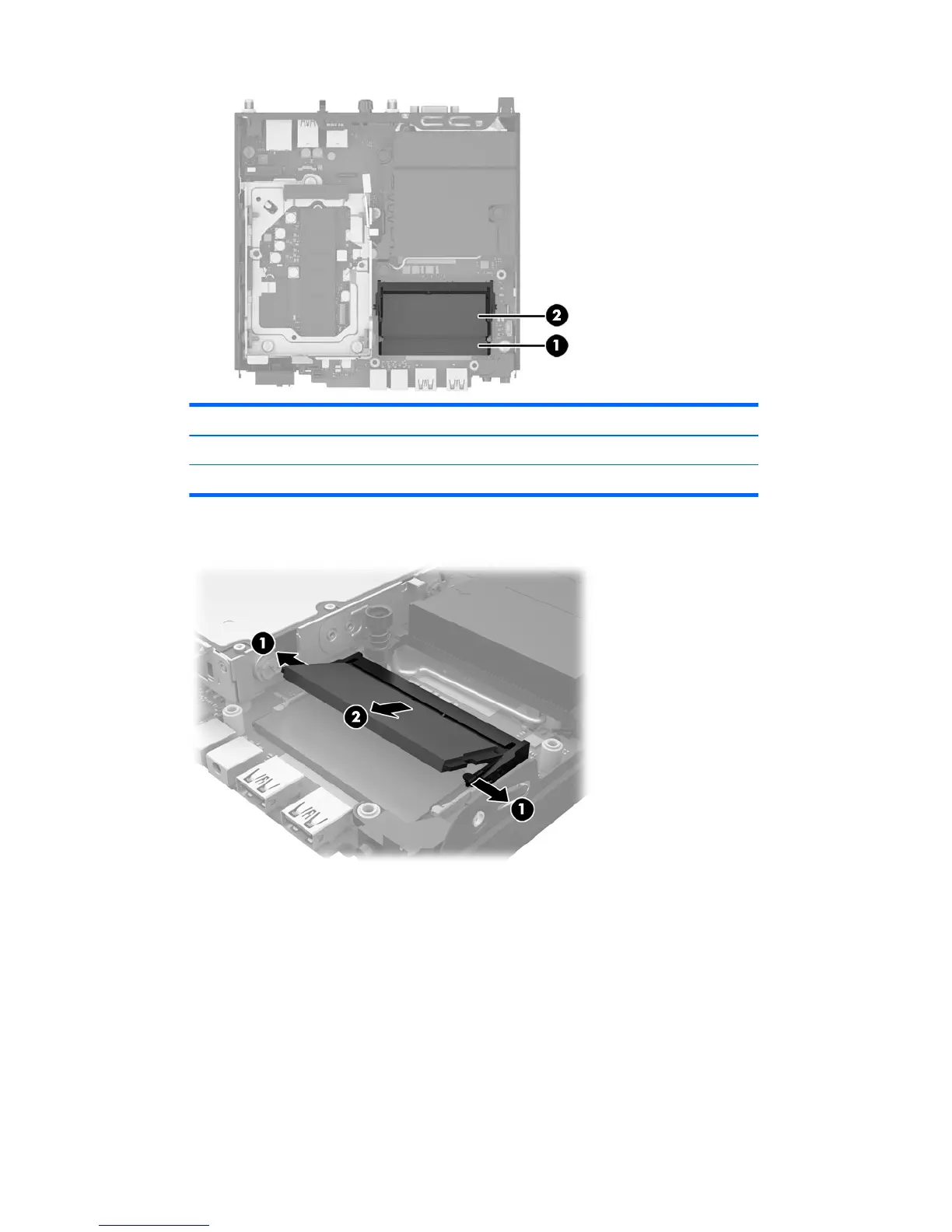

Item Description System Board Label Socket Color
1 SODIMM1 socket, Channel B DIMM1 Black
2 SODIMM3 socket, Channel A DIMM3 Black
10. To remove a SODIMM, press outward on the two latches on each side of the SODIMM (1) then pull the
SODIMM out of the socket (2).
16 Chapter 2 Hardware upgrades
