HP EliteDesk 800 G2 Desktop Mini Hardware Reference Guide

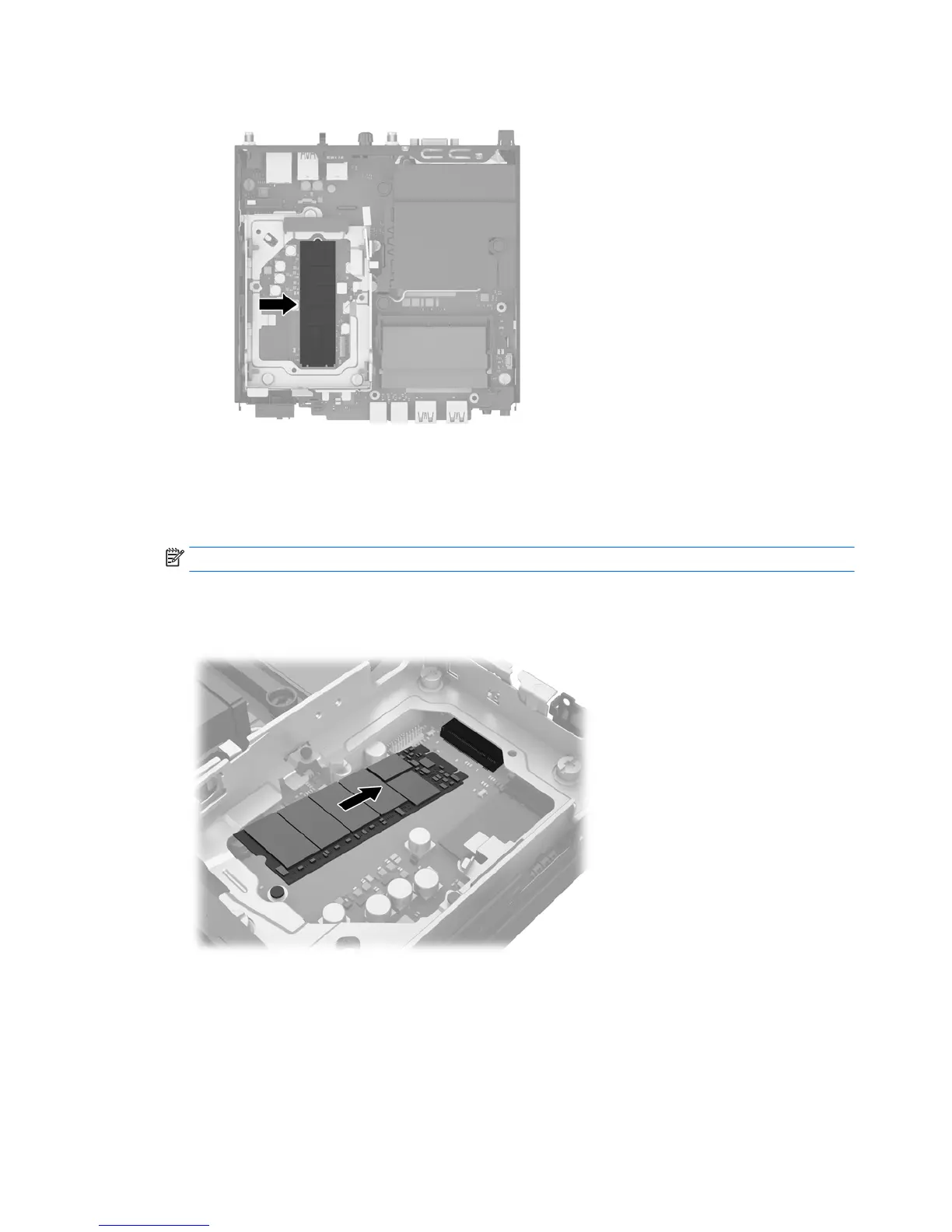

14. Locate the SSD on the system board.
15. Remove the screw securing the SSD to the system board.
16. Grasp the SSD by the sides and carefully pull it out of the socket.
17. Insert the new SSD into the socket on the system board.
NOTE: An SSD can be installed in only one way.
18. Press the SSD connectors rmly into the socket.
19. Press the SSD down to the system board and use the included screw to secure the SSD.
20. Set the HDD cage into the chassis (1).
21. Press the hood sensor rmly into place (2).
22 Chapter 2 Hardware upgrades

HP EliteDesk 800 G2 Desktop Mini Specifications

General

Chipset	Intel Q170
Graphics	Intel HD Graphics 530
Form Factor	Mini PC
CPU Options	Intel Core i7-6700T, Intel Core i5-6500T, Intel Core i3-6100T
RAM	DDR4-2133 MHz
Memory Capacity	Up to 32 GB
Storage	SATA HDD/SSD, M.2 SSD
Storage Options	500GB HDD, 1TB HDD, 128GB SSD, 256GB SSD, 512GB SSD
Operating System	Windows 10 Pro
OS Options	Windows 10 Pro 64, Windows 10 Home 64, FreeDOS 2.0
Ports	1 x RJ-45, 2 x DisplayPort, 1 x VGA, 1 x headphone/microphone combo
Wireless	Intel Dual Band Wireless-AC 8260, Bluetooth 4.2
Dimensions	17.7 x 17.5 x 3.4 cm
Weight	1.3 kg
Processor	Intel Core i5-6500
