HP EliteDesk 800 G2 Desktop Mini Hardware Reference Guide

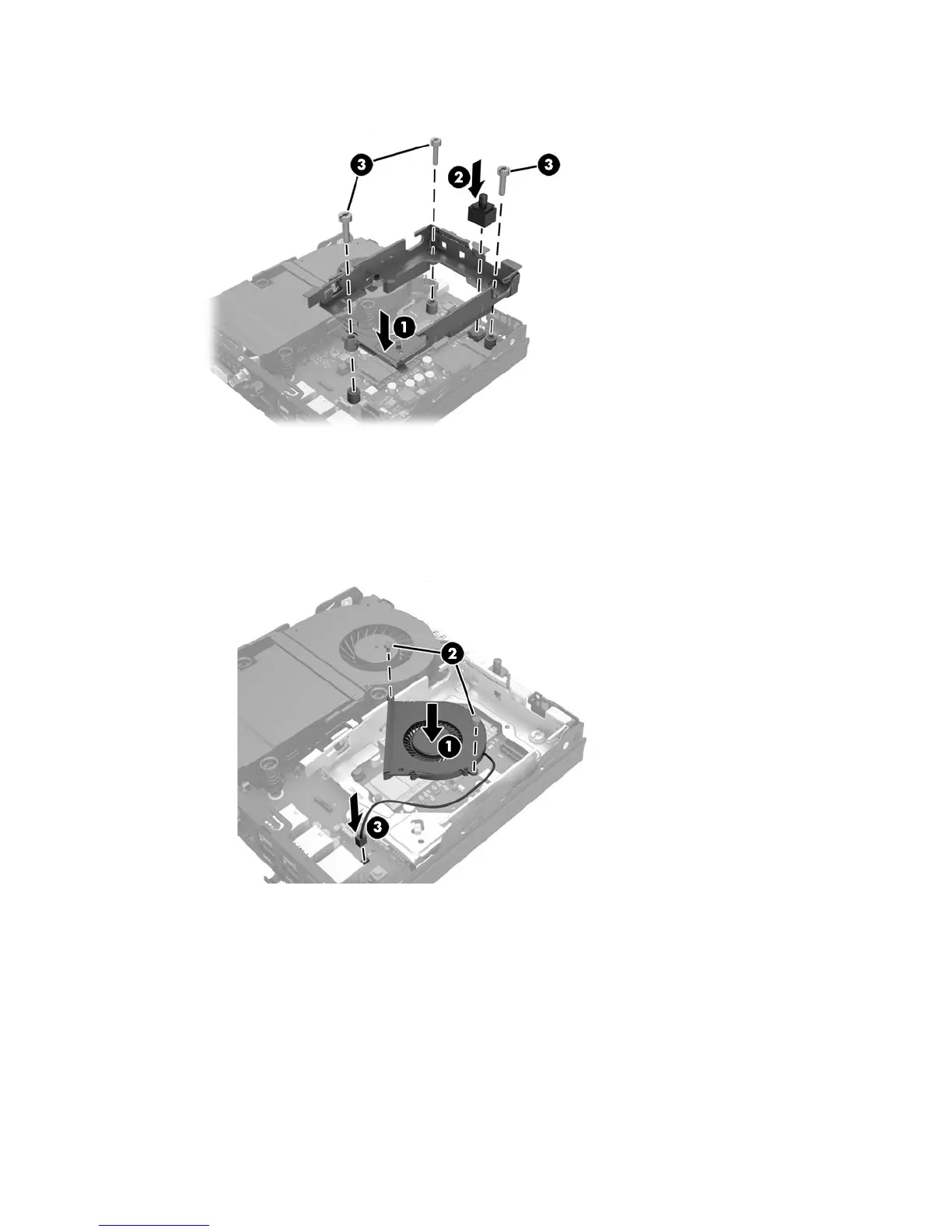

22. Secure the HDD cage to the chassis with the three screws (3).
23. If your model is an EliteDesk 800, replace the secondary fan under the HDD.
a. Set the fan in place in the HDD cage (1).
b. Fasten the two screws to secure the fan to the chassis (2).
c. Connect the fan plug to the system board (3).
24. Align the HDD guide screws with the slots on the HDD drive cage, press the HDD down into the cage, then
slide it forward until it stops and locks in place (1).
Replacing an M.2 PCIe solid state drive (SSD) 23

HP EliteDesk 800 G2 Desktop Mini Specifications

General

Chipset	Intel Q170
Graphics	Intel HD Graphics 530
Form Factor	Mini PC
CPU Options	Intel Core i7-6700T, Intel Core i5-6500T, Intel Core i3-6100T
RAM	DDR4-2133 MHz
Memory Capacity	Up to 32 GB
Storage	SATA HDD/SSD, M.2 SSD
Storage Options	500GB HDD, 1TB HDD, 128GB SSD, 256GB SSD, 512GB SSD
Operating System	Windows 10 Pro
OS Options	Windows 10 Pro 64, Windows 10 Home 64, FreeDOS 2.0
Ports	1 x RJ-45, 2 x DisplayPort, 1 x VGA, 1 x headphone/microphone combo
Wireless	Intel Dual Band Wireless-AC 8260, Bluetooth 4.2
Dimensions	17.7 x 17.5 x 3.4 cm
Weight	1.3 kg
Processor	Intel Core i5-6500
