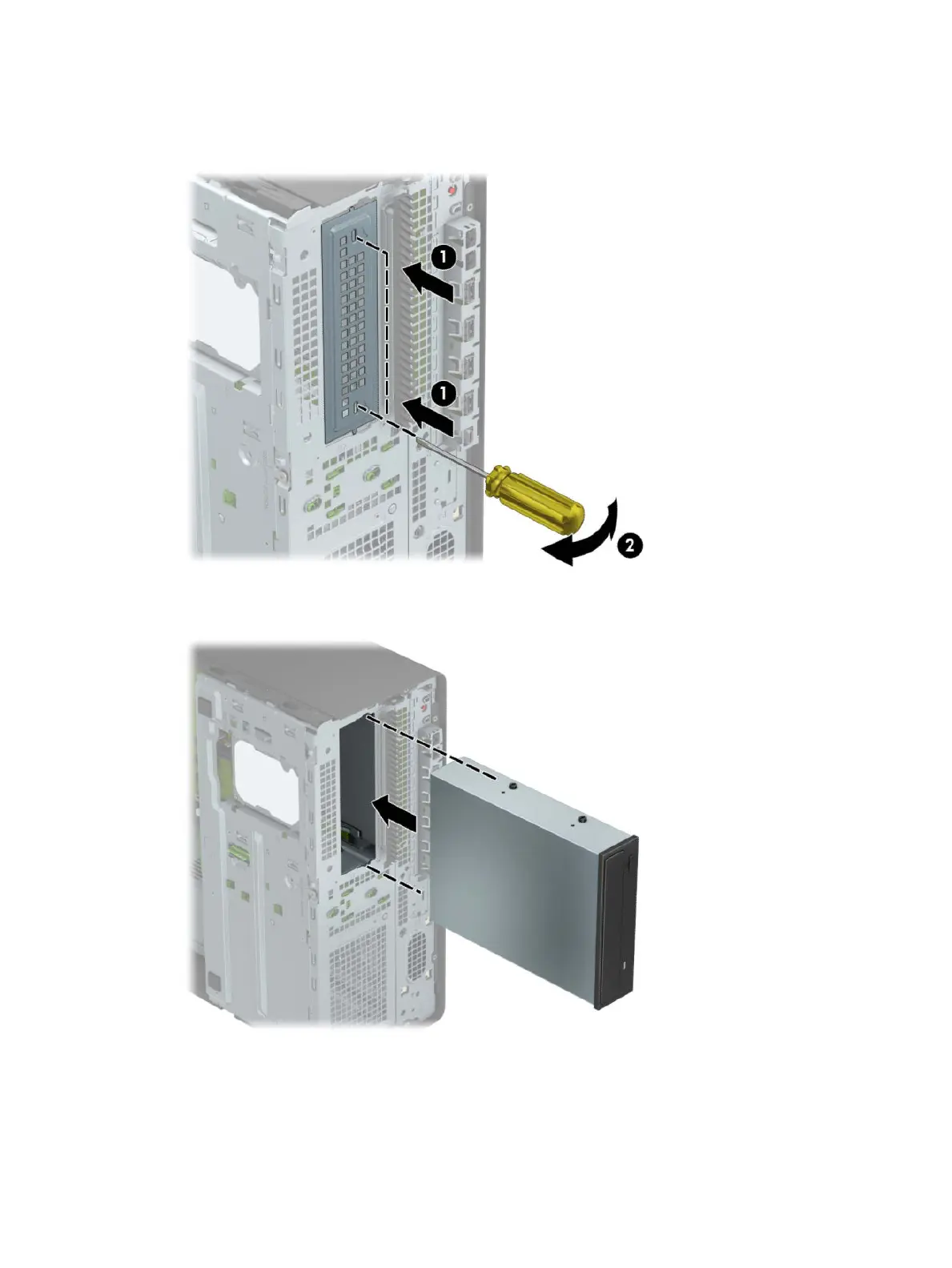

5. If you are installing a 5.25-inch drive in a vacant drive bay, you may need to remove the metal shield
covering the front of the bay. Insert a at-bladed screwdriver into the slots on the front of the shield (1)
and rock the shield back and forth (2) to break it free from the chassis.
6. Slide the drive into the drive bay, making sure to align the mounting screws with the mounting slots,
until the drive snaps into place.
34 Chapter 4 Removal and replacement procedures
