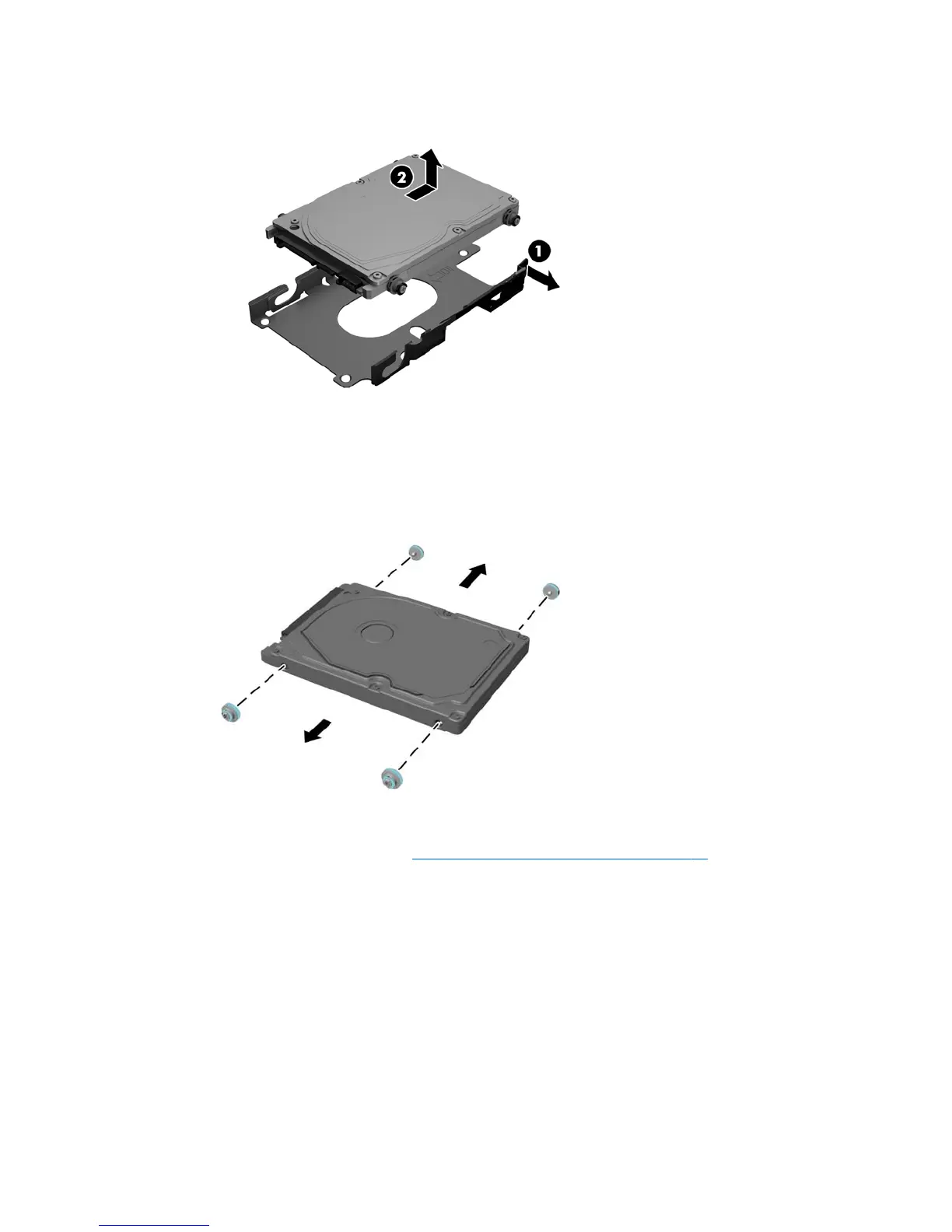

14. Slide the HDD toward the latch and lift the HDD out of the drive cage (2).
15. Remove the four mounting screws from the 2.5 inch HDD. Be sure to keep the screws together with the
blue rubber grommets to use to install a replacement drive.
For instructions on installing a HDD, see Installing a 2.5 inch hard disk drive on page 55.
54 Chapter 3 Hardware repair and upgrade
