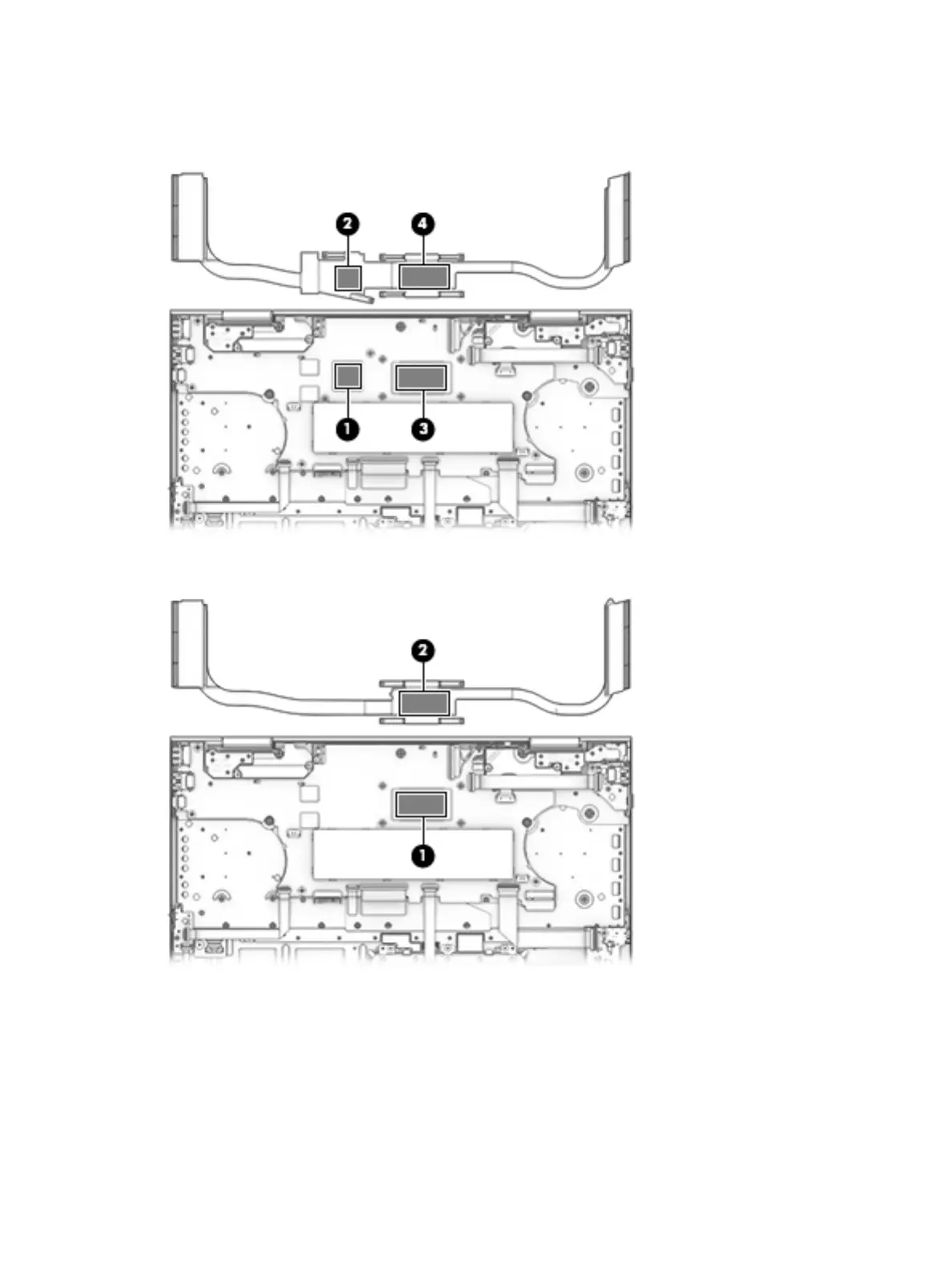

Computer models equipped with a graphics subsystem with discrete memory: Thermal paste is used on
the processor (1) and the heat sink section (2) that services it. Thermal paste is also used on the graphics
subsystem component (3) and the heat sink section (4) that services it.
Computer models equipped with a graphics subsystem with UMA memory: Thermal paste is used on
the processor (1) and the heat sink section (2) that services it.
Reverse this procedure to install the heat sink.
Component replacement procedures 59
