VLANs 48

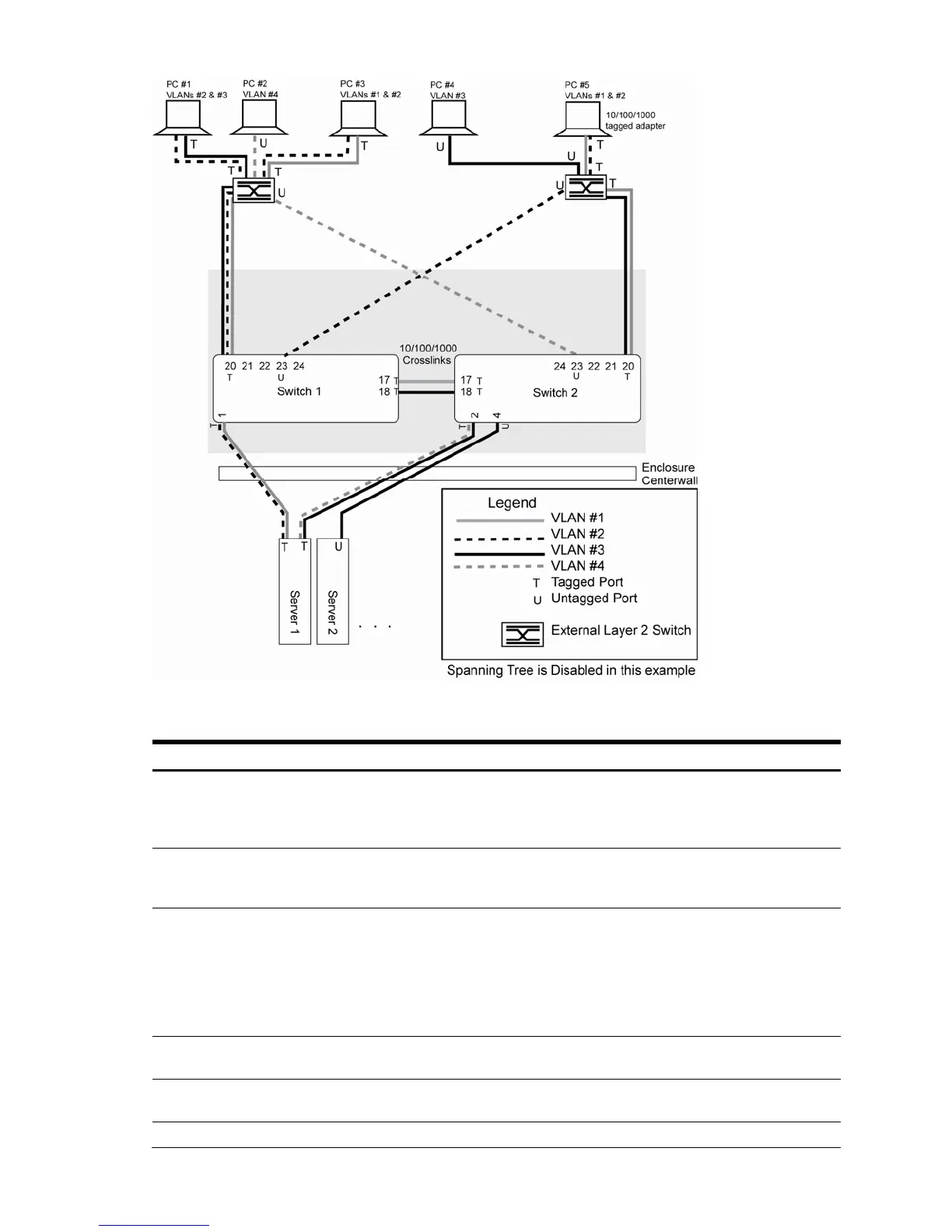

Figure 8 Multiple VLANs with VLAN tagging
The features of this VLAN are described in the following table:
Table 10 Multiple VLANs with tagging
Component Description
Switch 1 Switch 1 is configured for VLANS 1, 2, and 3. Port 1 is tagged to accept traffic from VLANs
1 and 2. Ports 17 and 18 are tagged members of a trunk that accepts traffic from VLANs 1
and 3. Port 20 is tagged to accept traffic from VLANs 1, 2, and 3. Port 23 is an untagged
member of VLAN 2.
Switch 2 Switch 2 is configured for VLANS 1, 3, and 4. Port 2 is tagged to accept traffic from VLANS
3 and 4. Port 4 is configured only for VLAN 3, so VLAN tagging is off. Port 20 is tagged to
accept traffic from VLANs 1 and 3. Port 23 is an untagged member of VLAN 4.
Blade Server #1 This high-use blade server needs to be accessed from all VLANs and IP subnets. The server
has a VLAN-tagging adapter installed with VLAN tagging turned on.
One adapter is attached to one of the switch's 10/100/1000 Mbps ports, that is
configured for VLANs 1 and 2. One adapter is configured for VLANs 3 and 4.
Because of the VLAN tagging capabilities of both the adapter and the switch, the server is
able to communicate on all four VLANs in this network while maintaining broadcast
separation among all four VLANs and subnets.
Blade Server #2 This blade server belongs to VLAN 3. The port that the VLAN is attached to is configured
only for VLAN 3, so VLAN tagging is off.
PC #1 This PC is a member of VLAN 2 and 3. Via VLAN 2, it can communicate with Server 1, PC
3, and PC 5. Via VLAN 3, it can communicate with Server 1, Server 2, and PC 4.
PC #2 This PC is a member of VLAN 4, and can only communicate with Server 1.
