VLANs 53
2. Configure the VLANs and their member ports.

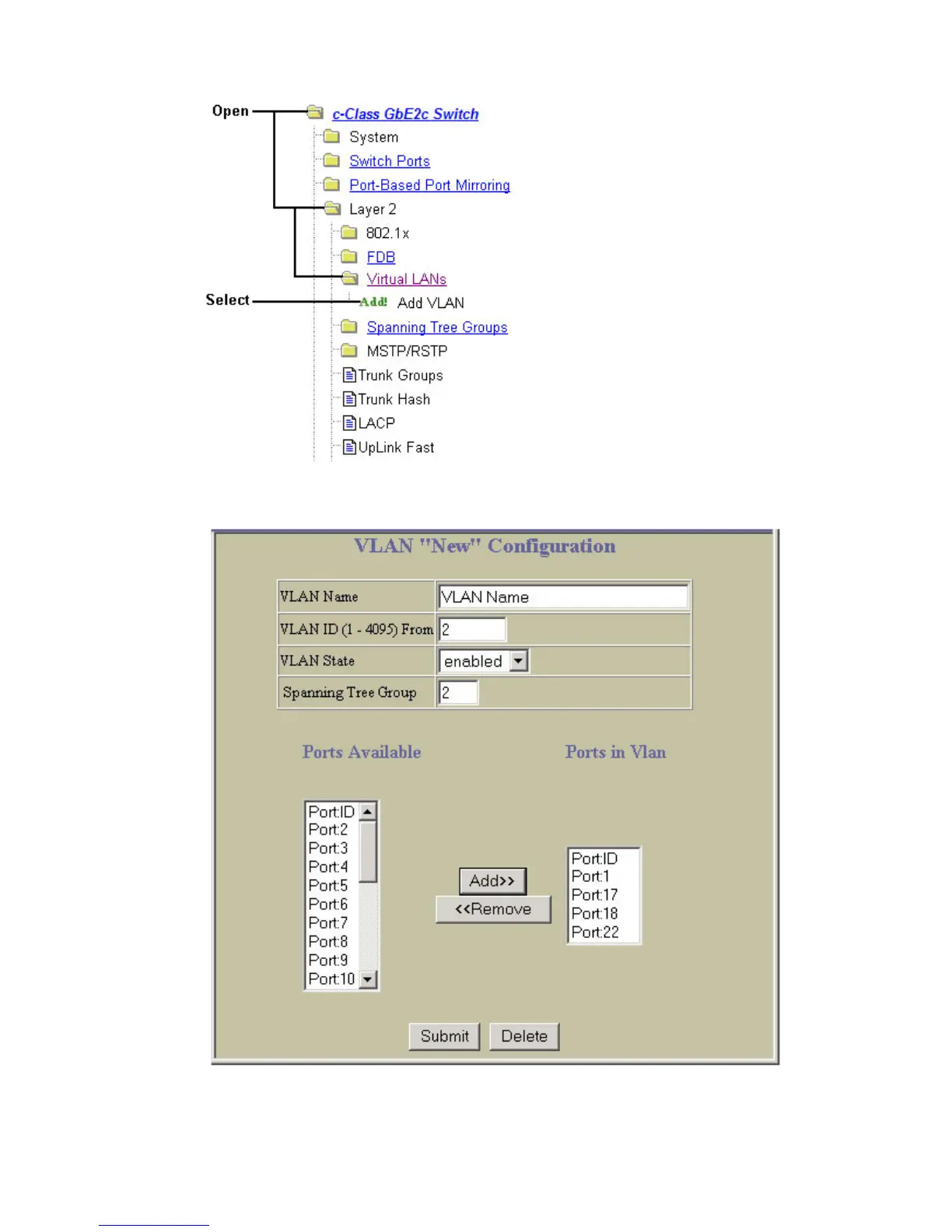

a. Open the Virtual LANs folder, and select Add VLAN.
b. Enter the VLAN name, VLAN ID number, and enable the VLAN. To add ports, select each port in the Ports
Available list and click Add. Since all ports are configured for VLAN 1 by default, configure only those
ports that belong to VLAN 2. The crosslink ports 17 and 18 must belong to VLANs 1 and 2.
c. Click Submit.
