Spanning Tree Protocol 59
Configuring Switch 1 (CLI example)
1. Configure port and VLAN membership on Switch 1 as described in the “Configuring ports and VLANs on
Switch 1 (CLI example)” section, in the “VLANs” chapter of this guide.
2. Add VLAN 2 to Spanning Tree Group 2.
>> /cfg/l2/stp 2 (Select Spanning Tree Group 2)
>> Spanning Tree Group 2# add 2 (Add VLAN 2)
VLAN 2 is automatically removed from spanning tree group 1.
3. Apply and save.
>> apply (Apply the port configurations)
>> save (Save the port configurations)
Configuring Switch 2 (CLI example)
1. Configure port and VLAN membership as described in the “Configuring ports and VLANs on Switch 2 (CLI
example)” section in the “VLANs” chapter of this guide.
2. Add VLAN 2 to Spanning Tree Group 2.
>> /cfg/l2/stp 2 (Select Spanning Tree Group 2)
>> Spanning Tree Group 2# add 2 (Add VLAN 2)
3. VLAN 2 is automatically removed from Spanning Tree Group 1.
4. Apply and save.
>> apply (Apply the port configurations)
>> save (Save the port configurations)
Configuring Switch 1 (BBI example)
1. Configure port and VLAN membership on Switch 1 as described in the “Configuring ports and VLANs on
Switch 1 (BBI example)” section, in the “VLANs” chapter of this guide.
2. Add VLAN 2 to Spanning Tree Group 2.
a. Click the Configure context button on the Toolbar.

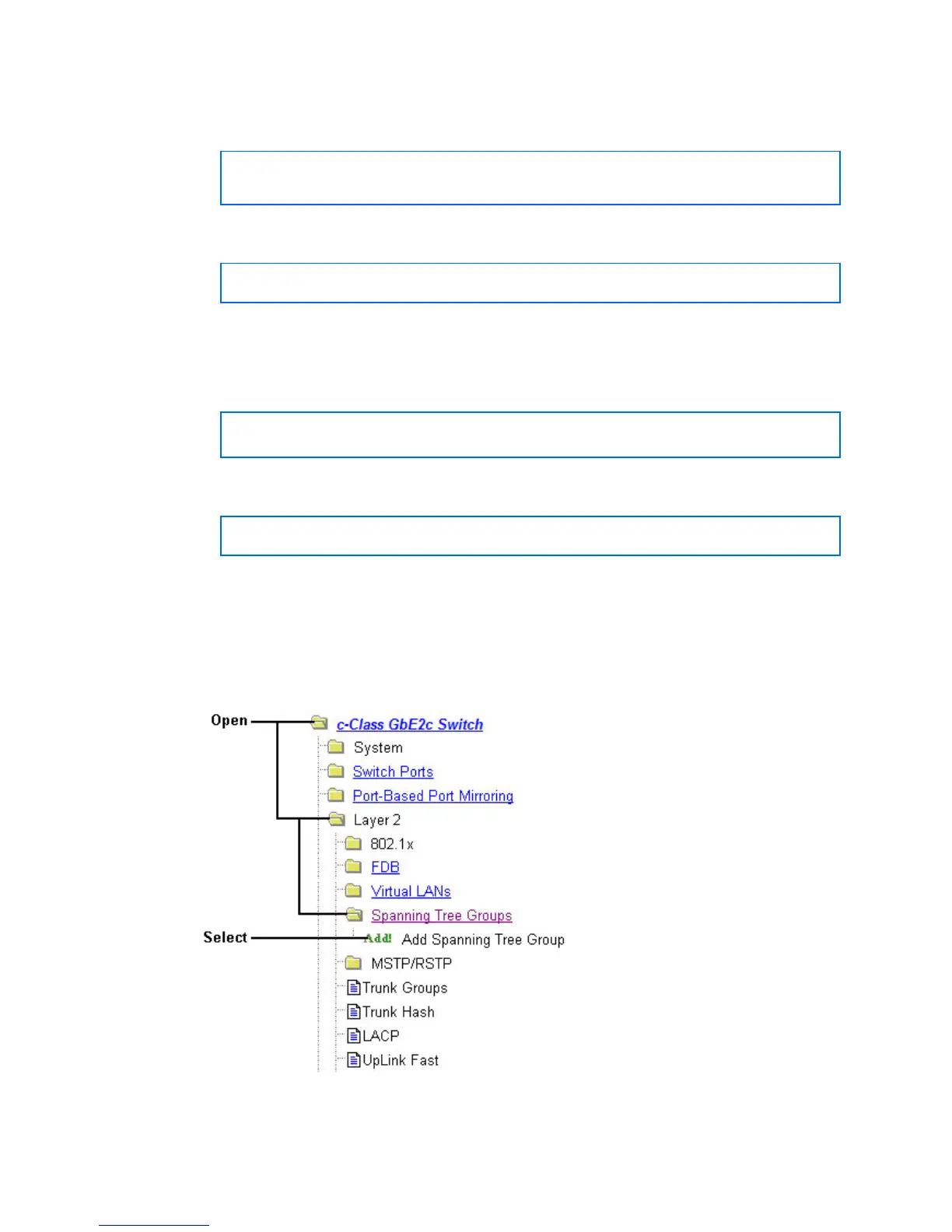

b. Open the Spanning Tree Groups folder, and select Add Spanning Tree Group.
